CNME080409-6
CNMEDITECH
Easy Laryngeal Mask Airway Non-inflation Laryngeal Mask Airway
The Non-inflation Laryngeal Mask Airway (LMA) is a next-generation supraglottic airway device designed without the need for cuff inflation. Unlike traditional LMAs that require air to be injected into a cuff to create a seal, this advanced model uses a self-sealing, anatomically contoured cuff made from ultra-soft medical-grade material. It offers a quick, safe, and effective airway solution while simplifying the process for clinicians.

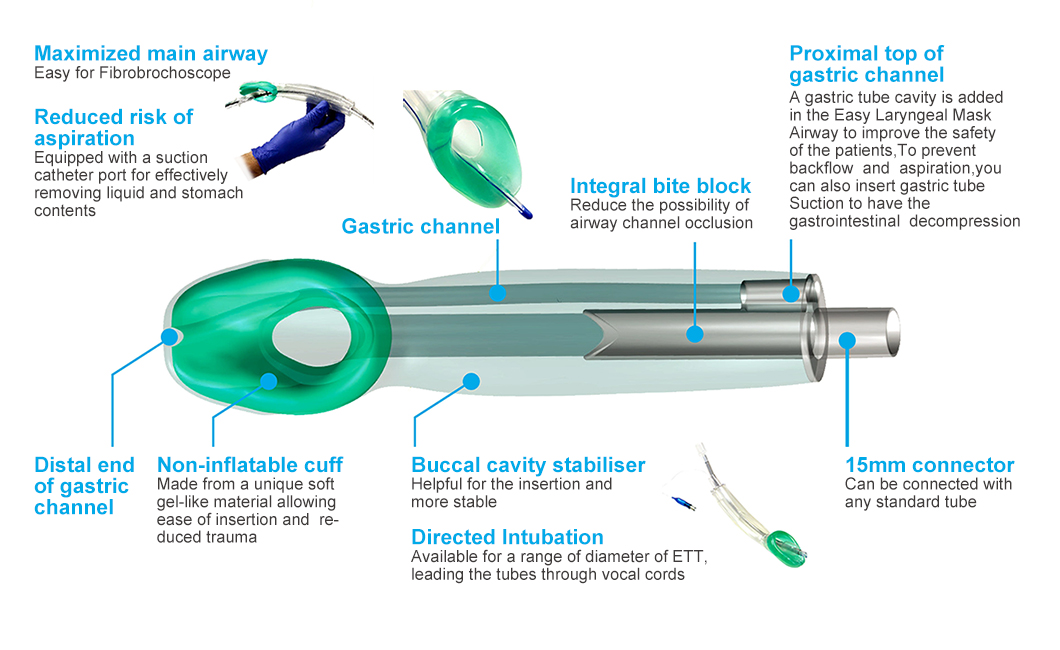

Features:
Cuffless Design (No Inflation Required):Eliminates the need for cuff inflation and deflation, reducing preparation time and minimizing the risk of over- or under-inflation-related complications.

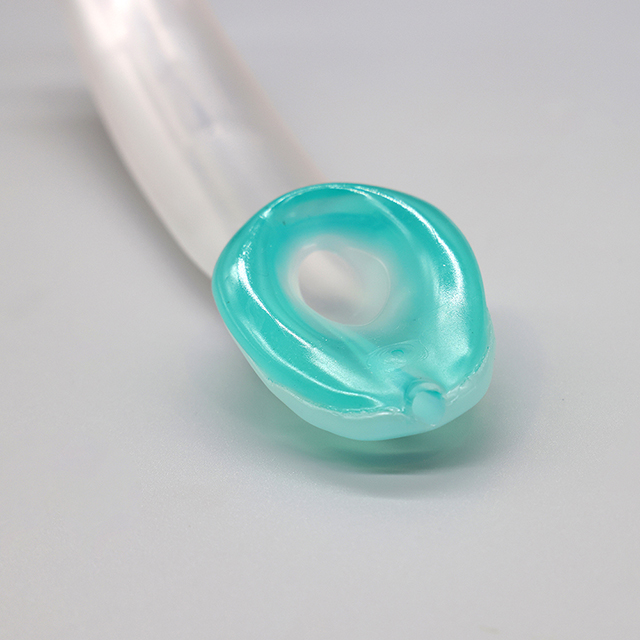

Anatomical Seal:The pre-formed, thermosensitive cuff conforms naturally to the laryngeal anatomy as it warms to body temperature, providing a gentle yet effective seal against the glottis.
Single-Use, Sterile Construction:Made from soft, medical-grade silicone or thermoplastic elastomer, the device is sterile and intended for single-patient use, reducing infection risks and eliminating cleaning needs.

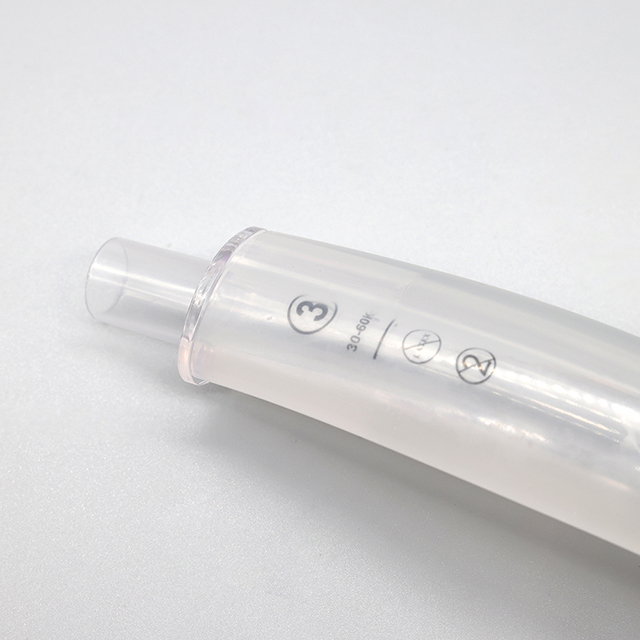

Color-Coded Size Identification:Each airway size is clearly marked and color-coded for quick selection, with a wide range of sizes available for neonatal, pediatric, and adult patients.
Flexible Airway Tube:Reinforced or standard tube options are available to accommodate various clinical scenarios, including head and neck surgeries or restricted oral access.
Advantages:
Faster Placement – Simplified insertion with fewer preparation steps
Reduced Risk of Airway Trauma – No cuff pressure means lower risk of mucosal injury or postoperative sore throat
Minimized User Error – No need for inflation syringe or cuff pressure monitoring
Ideal for Rapid Sequence or Emergency Use – Ready-to-use design saves valuable time in critical situations
Specifications:

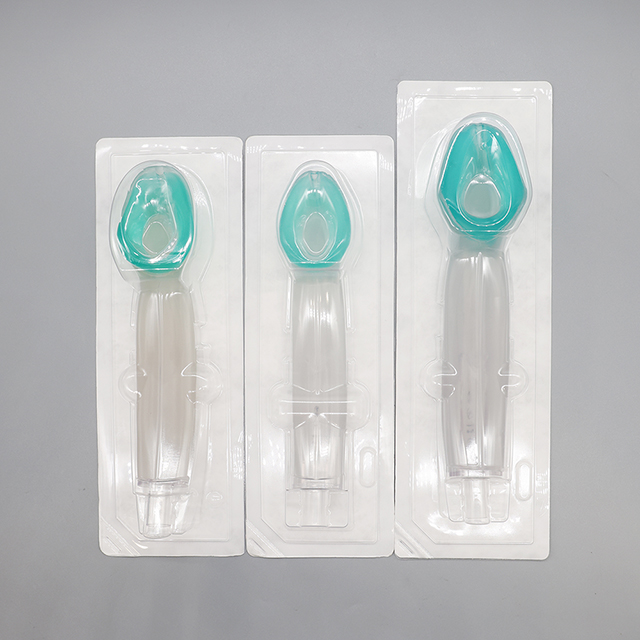

CNME type Easy Laryngeal Mask Airway has 3 child sizes and 4 adult sizes,available for the patients between 2-90 kg.
Non-inflatable | Fit People | Weight(kg) | Available ETT Size | Available Stomach Tube Size |
1.0 | New born | 2-5kg | Maximized 3.0mm | Maximized 10Fr |
1.5 | Neonate | 5-12kg | Maximized 4.0mm | Maximized 10Fr |
2.0 | Child | 10-25kg | Maximized 5.0mm | Maximized 12Fr |
2.5 | Adult | 25- 35kg | Maximized 5.0mm | Maximized 12Fr |
3.0 | Adult | 30-60kg | Maximized 6.0mm | Maximized 14Fr |
4.0 | Adult | 50-90kg | Maximized 7.0mm | Maximized 14Fr |
5.0 | Adult | 90+kg | Maximized 7.0mm | Maximized 14Fr |
