CNME080401-2
CNMEDITECH
Cuffed ET Oral PVC ET Endotracheal Tube with All Sizes
Description:
An endotracheal tube is a flexible plastic tube that is placed through the mouth into the trachea (windpipe) to help a patient breathe. The endotracheal tube is then connected to a ventilator, which delivers oxygen to the lungs. The process of inserting the tube is called endotracheal intubation.
Features:
1.Made of medical grade PVC,the tube is transparent and clear.
2.X-ray opaque line through the whole tube.
3.With Murphy eye design.
4.High volume and low pressure cuff.
5.Size:2mm-10.0mm.
Specifications:
Size: ID mm | OD mm | Recommended age group |
2.0 | 2.9 | premature |
2.5 | 3.6 | premature |
3.0 | 4.3 | neonate |
3.5 | 5.0 | Infant |
4.0 | 5.6 | Infant |
4.5 | 6.2 | Child |
5.0 | 6.9 | Child |
5.5 | 7.5 | Child |
6.0 | 8.2 | Child |
6.5 | 8.8 | Child |
7.0 | 9.3 | Child |
7.5 | 10.0 | Adult |
8.0 | 10.7 | Adult |
8.5 | 11.3 | Adult |
9.0 | 12.0 | Adult |
9.5 | 12.7 | Adult |
10.0 | 13.3 | Adult |

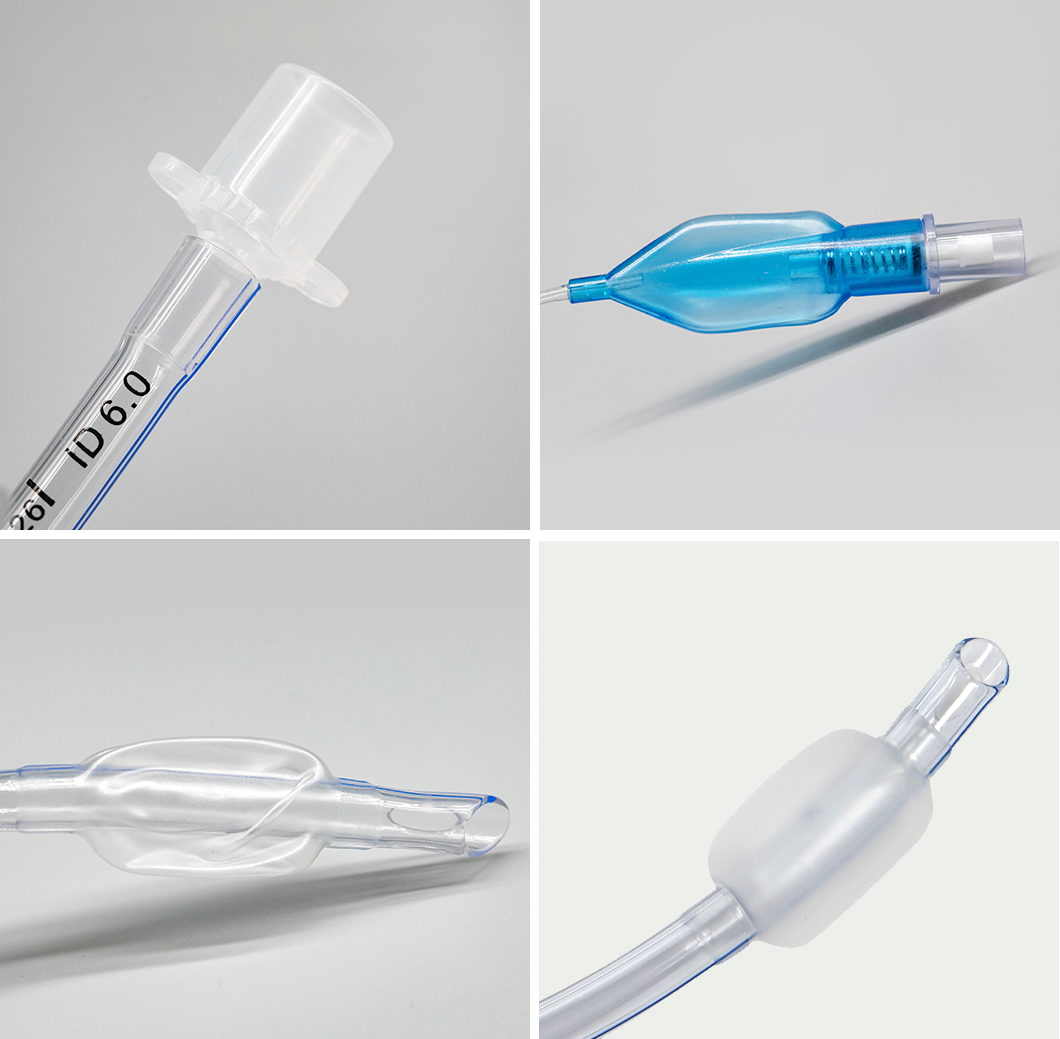

Photos:
