CNME080801-1T
CNMEDITECH

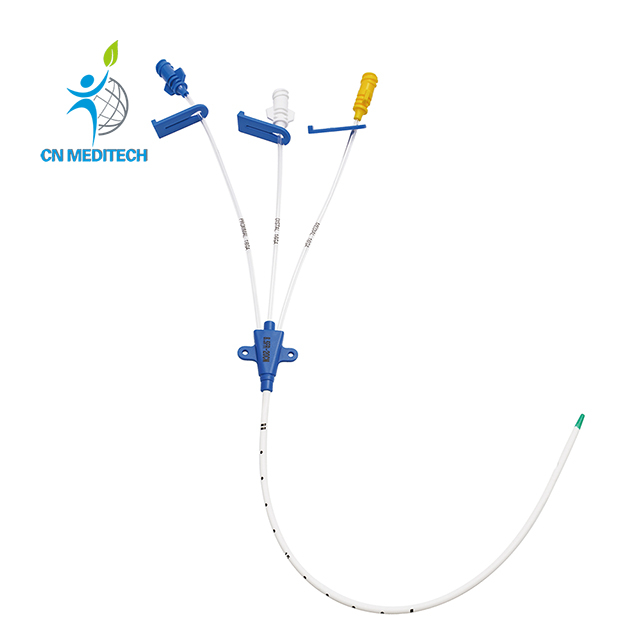

Disposable Medical Single/Double/Triple Central Line Lumen Central Venous CVC Catheter
A central venous catheter (CVC) is a long, flexible tube your provider inserts into a vein in your neck, chest, arm or groin. It leads to your vena cava, a large vein that empties into your heart. A CVC helps you receive drugs, fluids or blood for emergency or long-term treatment. It also helps with blood draws.
Applications:
Critical Care & ICU – For long-term IV access, medication infusion, and total parenteral nutrition (TPN).
Emergency & Surgery – Rapid fluid resuscitation and drug administration.
Hemodynamic Monitoring – Measures central venous pressure (CVP) in critically ill patients.
Dialysis & Chemotherapy – Used for long-term treatments requiring high-flow access.

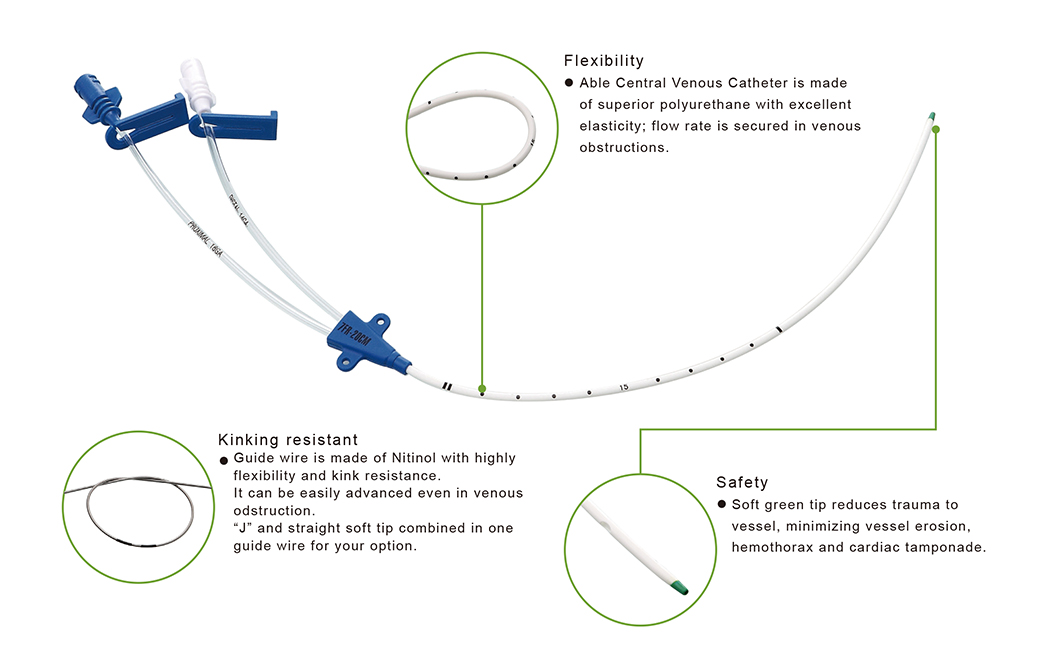

Features:
Medical-Grade Material – Made of soft polyurethane or silicone, ensuring flexibility and biocompatibility.
Multiple Lumen Options – Available in single, double, or triple lumens for different clinical needs.
Radiopaque Markings – Enhances visibility under X-ray for precise placement.
Anti-Thrombogenic Surface (Optional) – Reduces the risk of clot formation.
Soft Tip Design – Minimizes vessel trauma during insertion.
Sterile & Ready for Use – Comes pre-sterilized to prevent infections.
Specifications:
Lumen Design | Catheter Specification *length(cm) | Dilator OD(mm) | Guide wire(OD*length) | Remarks |
Single | 14G*16 | 2.7 | 0.032*50cm | Adult |
14G*20 | 0.032*60cm | |||
14G*30 | 0.032*70cm | |||
16G*16 | 2 | 0.032*50cm | ||
16G*20 | 0.032*60cm | |||
16G*30 | 0.032*70cm | |||
18G*16 | 1.7 | 0.025*50cm | Pediatric | |
18G*20 | ||||
18G*30 | ||||
Double | 4F*8 | 1.7 | 0.018*50cm | Infant |
4F*13 | ||||
5F*13 | 2 | 0.021*50cm | Pediatric | |
5F*16 | ||||
7F*16 | 2.7 | 0.035*50cm | Adult | |
7F*20 | 0.035*60cm | |||
7F*30 | 0.035*70cm | |||
Triple | 4.5F*10 | 1.7 | 0.021*50cm | Pediatric |
4.5F*13 | ||||
5F*10 | 2 | |||
5F*13 | Adult | |||
5.5F*13 | ||||
5.5F*16 | ||||
7F*16 | 2.7 | 0.035*50cm | ||
7F*20 | 0.035*60cm | |||
7F*30 | 0.035*70cm |

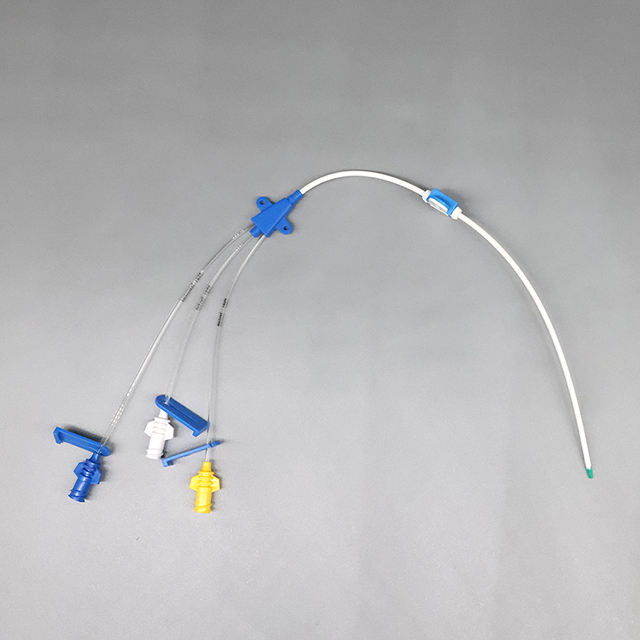

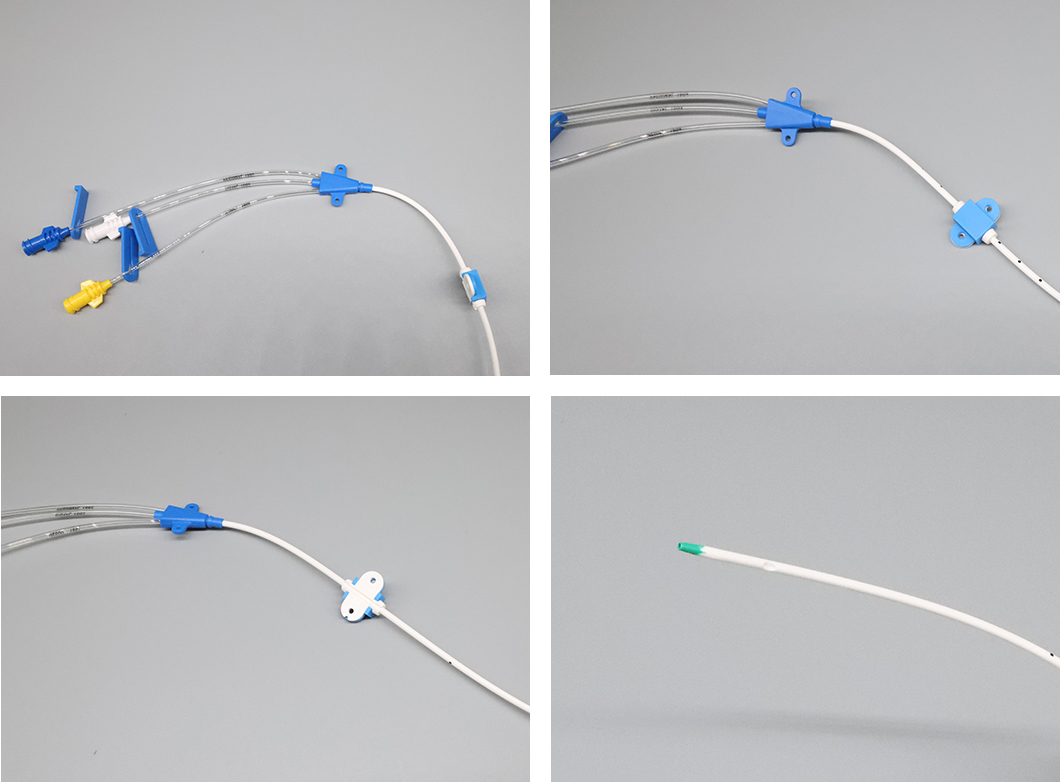

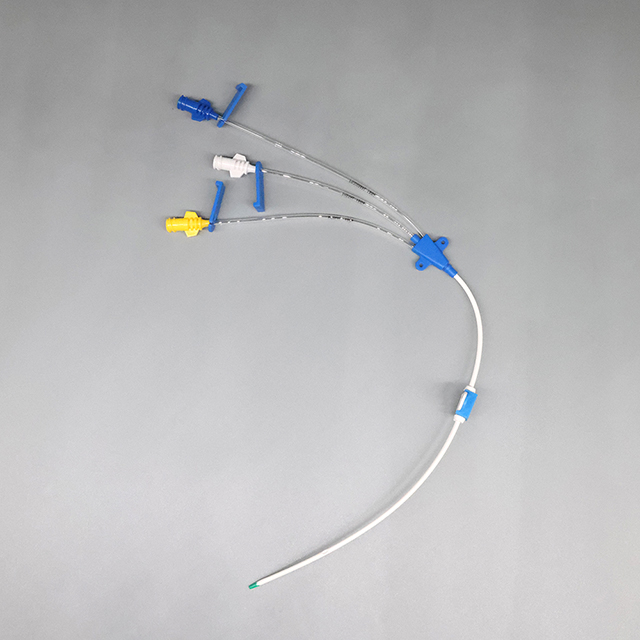

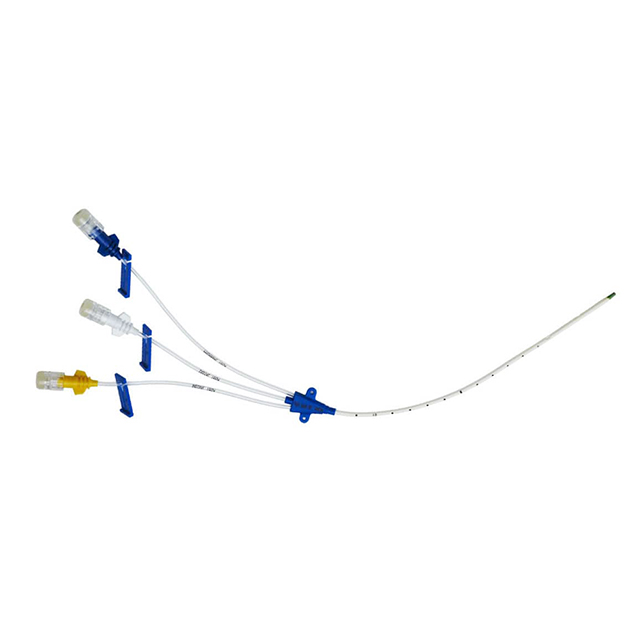

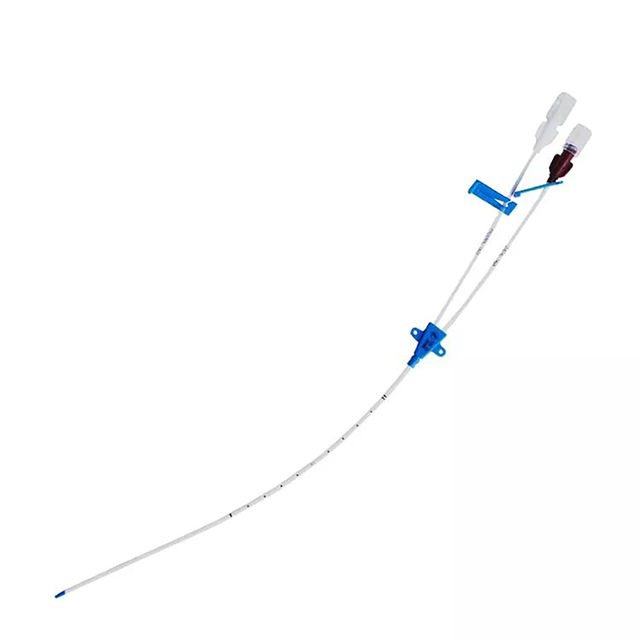

Photos:
Why Choose Our CVC?
Enhanced Patient Safety – Designed for smooth, minimally invasive placement.
Comprehensive Kit Available – Comes with guidewire, introducer needle, dilator, and other necessary accessories.
Customizable Options – Available in various lengths, lumens, and coatings for different medical needs.
For bulk orders, customization, or technical specifications, contact us today!
