CNME080415-BF1
CNMEDITECH
Disposable Medical Breathing System Filter Bacteria Viral Filter

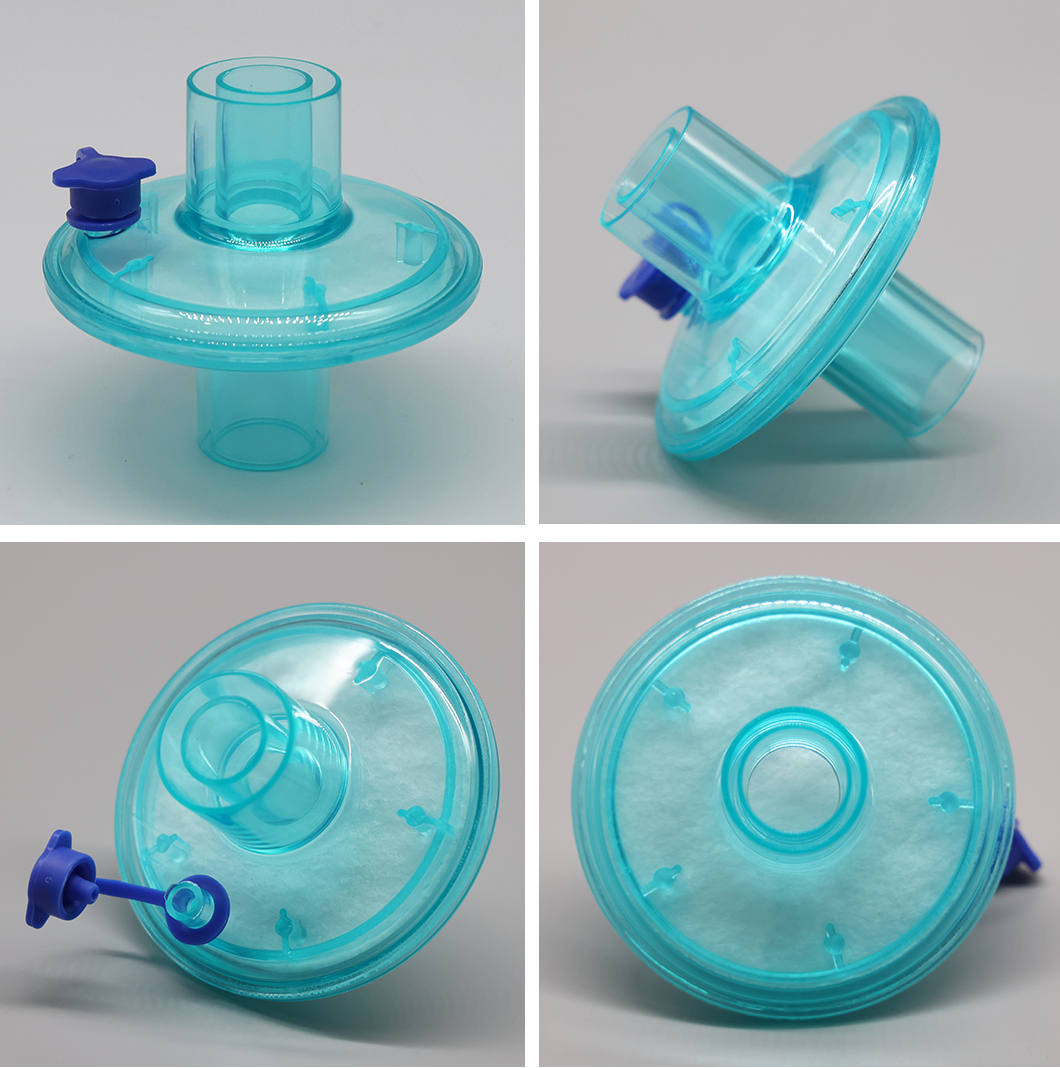

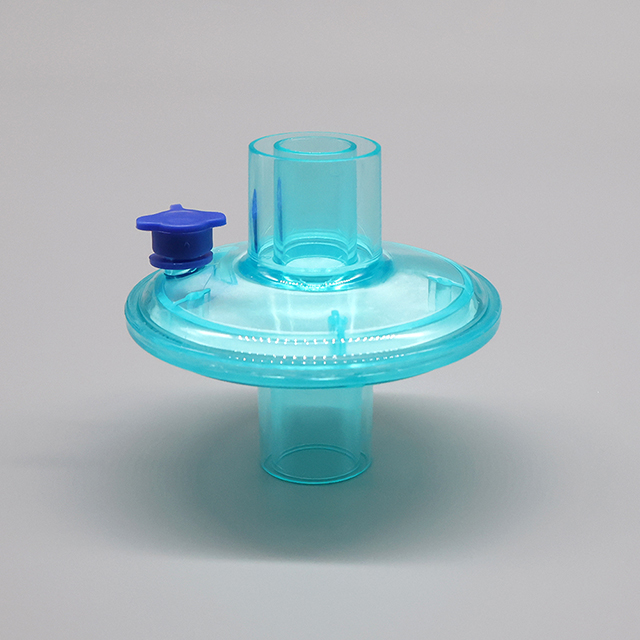

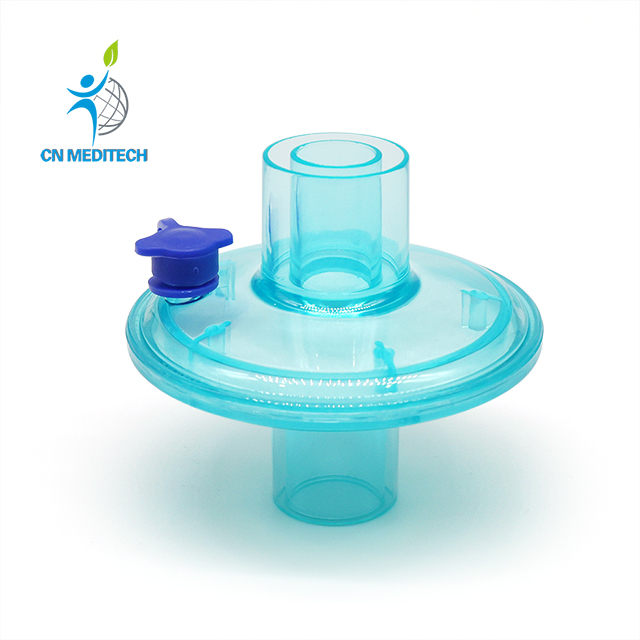

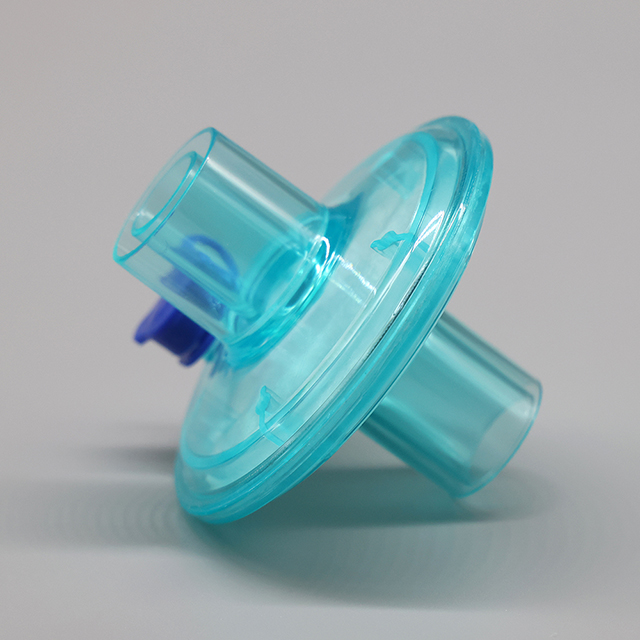

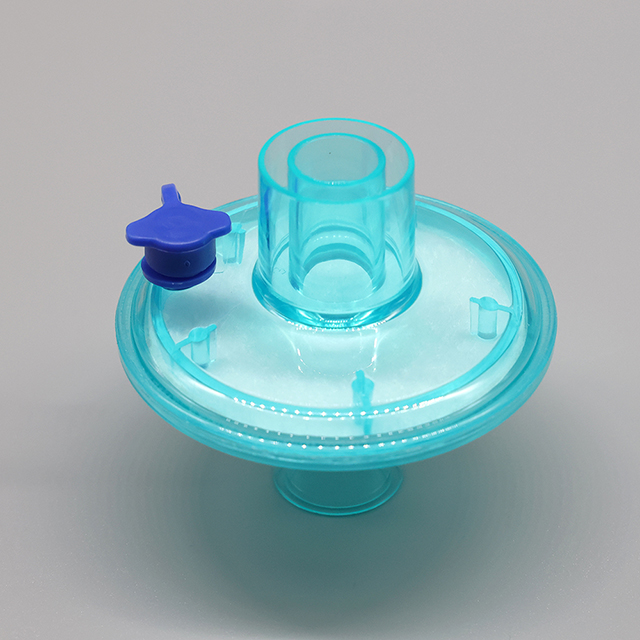

This is a transparent, cylindrical, disposable medical filter made of plastic, typically used in anesthesia circuits or ventilator systems. It is designed to preserve humidity and temperature in the patient’s respiratory tract while also filtering out bacteria and viruses.
Features:
*Material: Medical-grade transparent polycarbonate or polypropylene
*Color: Light blue transparent body with a purple cap (likely a gas sampling port)

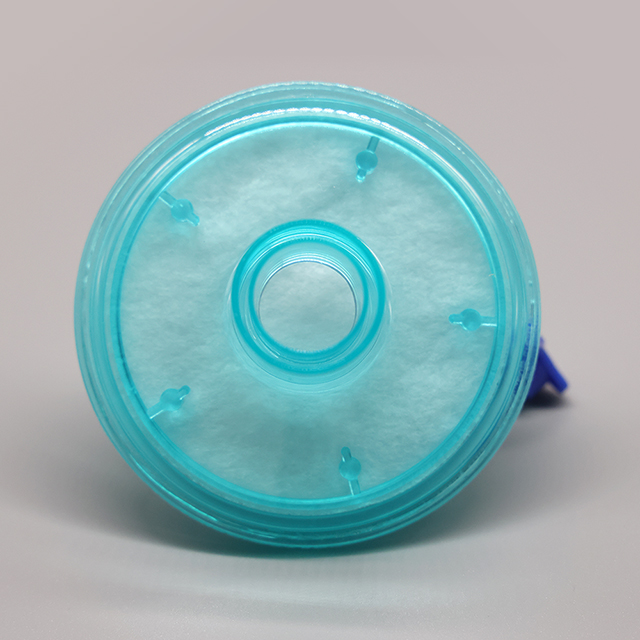

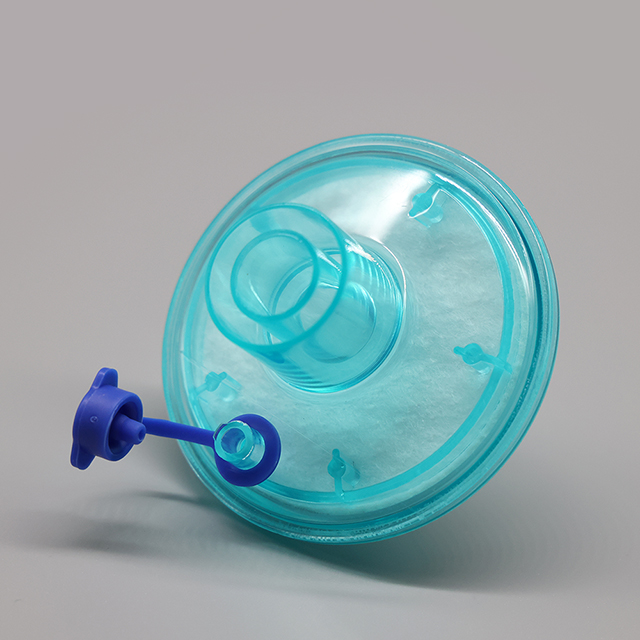

*Structure:One side with a standard 22mm male connector.Opposite side with a 15mm female/22mm male dual connector.Circular disc-like shape in the middle, containing the filter media.Small capped port for end-tidal CO₂ (EtCO₂) monitoring or gas sampling
*Functionality:Heat and moisture exchange (HME) to maintain airway humidity.Bacterial and viral filtration to protect the patient and equipment.Compatible with endotracheal tubes and breathing circuits
Specifications:
Dead space | 30ml |
Pressure drop@30LPM | 60Pa |
Moisture output | / |
| Bacterial filtration efficiency | 99.999% |
Viral filtration efficiency | 99.999% |
| Weight | 23g |
| Connections | 22M/15F-22F/15M |
Gas monitoring | Yes |
