CNME080415-HF2
CNMEDITECH
Adult HMEF Filter Disposable Surgical Medical Breathing System Bacterial Viral Filter

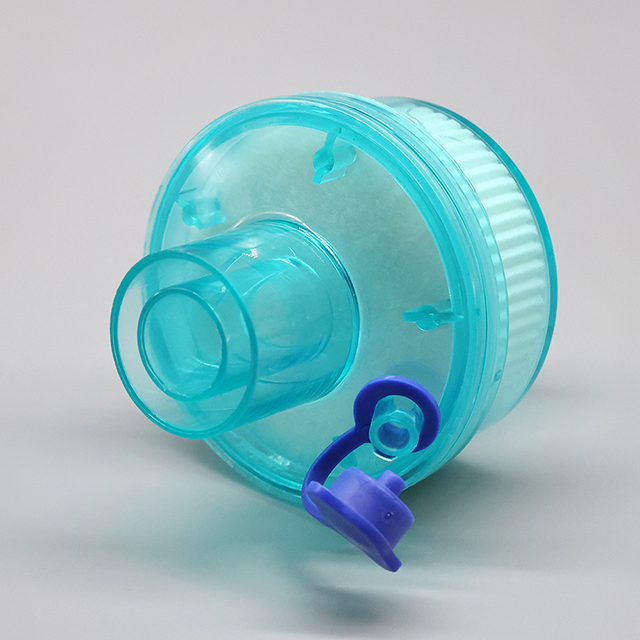

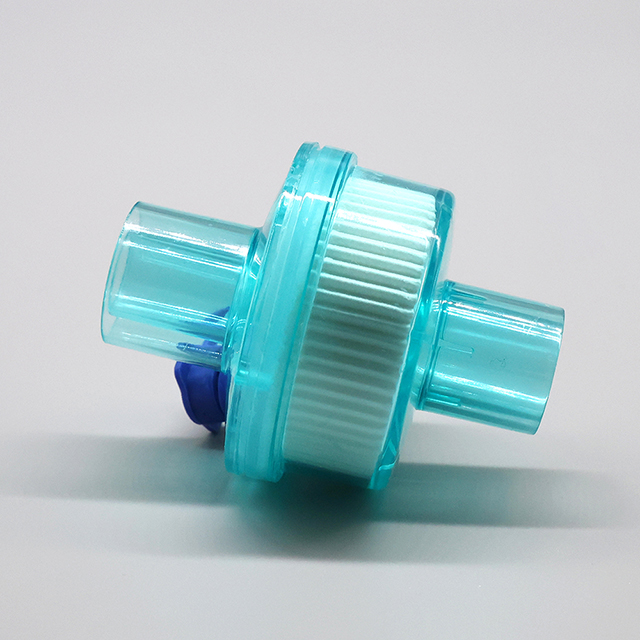

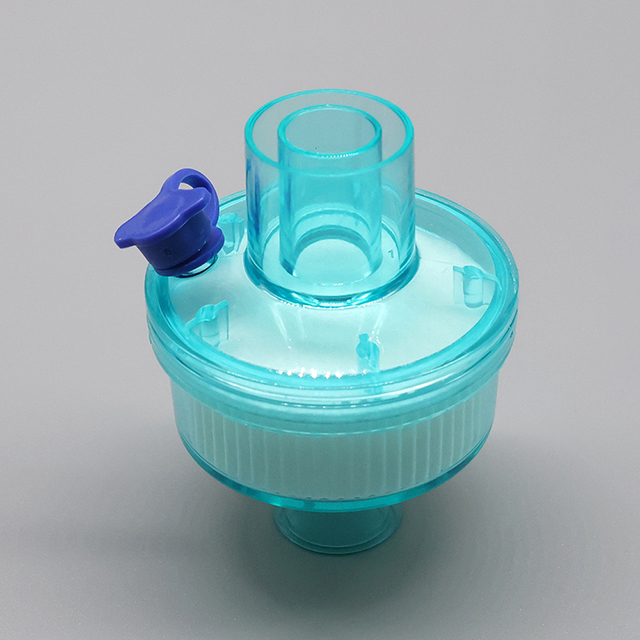

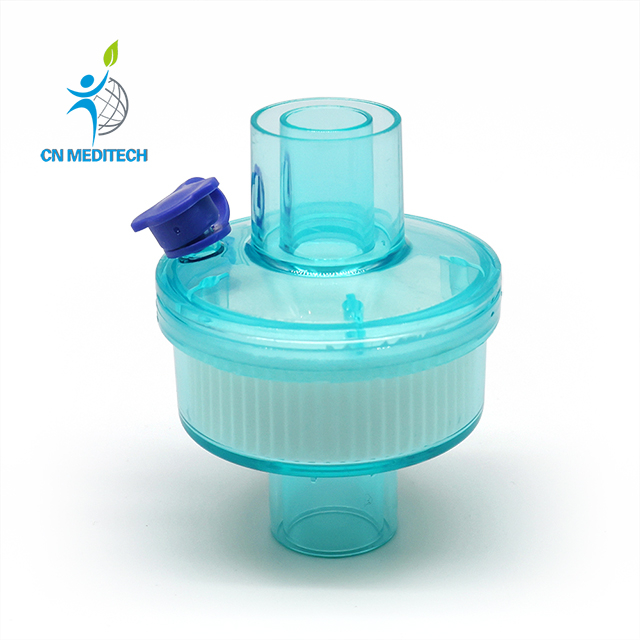

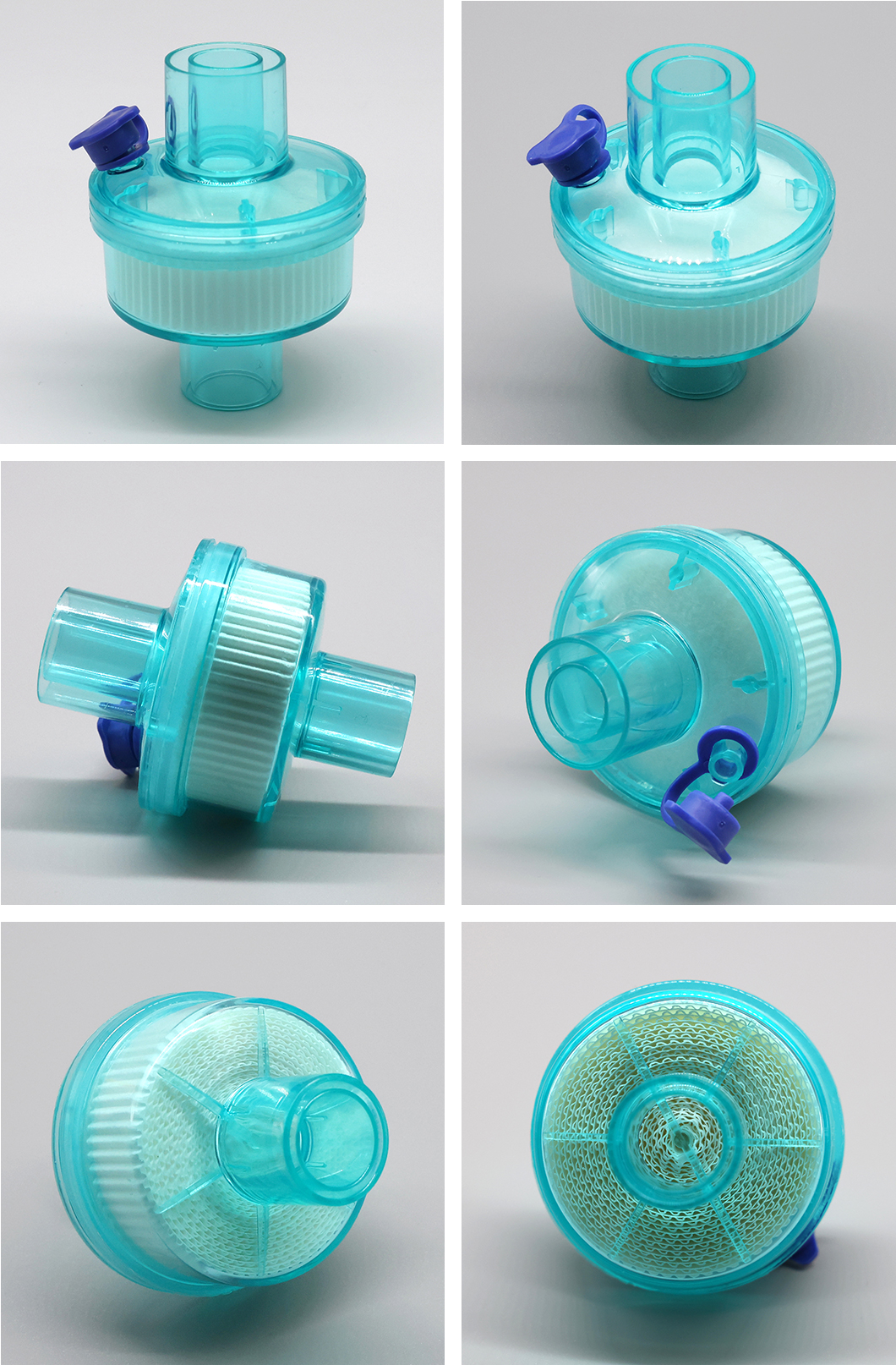

This is a single-use, transparent respiratory filter used in anesthesia and ventilator breathing systems. It effectively traps bacteria and viruses to prevent cross-contamination between the patient and respiratory equipment. The device also features a gas sampling port, allowing for real-time monitoring of respiratory gases such as end-tidal CO₂.
Features:
Material: Medical-grade transparent plastic (likely polycarbonate or polypropylene)
Color: Clear body with a yellow label indicating "Bacterial/Viral Filter" and CE marking; blue cap on the sampling port

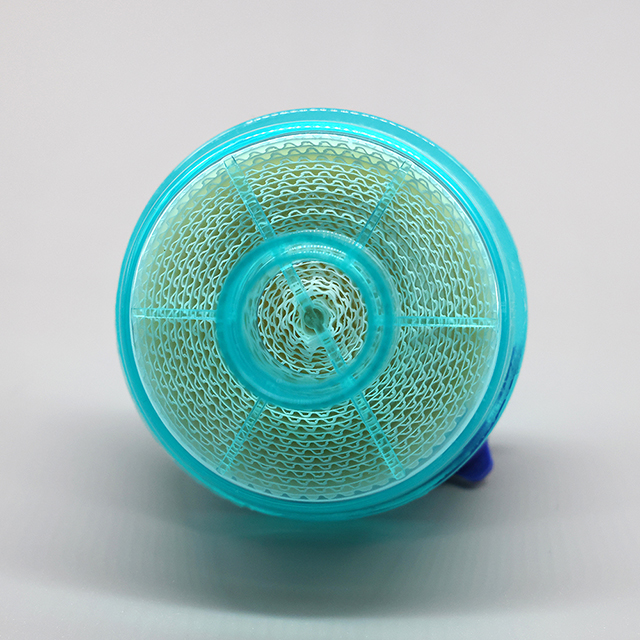

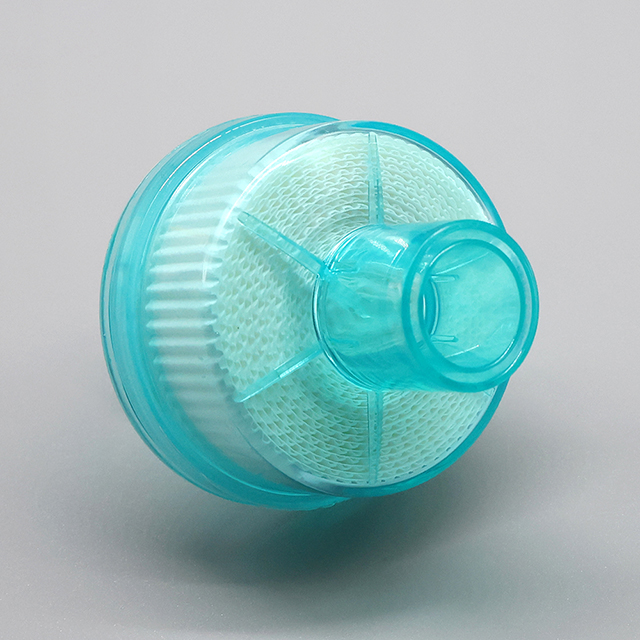

Structure:Circular disc housing with internal filter media.Standard 22mm male and 15mm female connectors for universal circuit compatibility.Integrated gas sampling port with a blue protective cap.Label includes identification and safety compliance markings.
Specifications:
Dead space | 40ml |
Tidal volume range | 150-1500ml |
| Pressure drop@30LPM | 100Pa |
Moisture output | 32mg@500VT |
| Bacterial filtration efficiency | 99.999% |
Viral filtration efficiency | 99.999% |
| Weight | 29g |
| Connections | 22M/15F-22F/15M |
Gas monitoring | Yes |
Adult HMEF Filter Disposable Surgical Medical Breathing System Bacterial Viral Filter
This is a single-use, transparent respiratory filter used in anesthesia and ventilator breathing systems. It effectively traps bacteria and viruses to prevent cross-contamination between the patient and respiratory equipment. The device also features a gas sampling port, allowing for real-time monitoring of respiratory gases such as end-tidal CO₂.
Features:
Material: Medical-grade transparent plastic (likely polycarbonate or polypropylene)
Color: Clear body with a yellow label indicating "Bacterial/Viral Filter" and CE marking; blue cap on the sampling port
Structure:Circular disc housing with internal filter media.Standard 22mm male and 15mm female connectors for universal circuit compatibility.Integrated gas sampling port with a blue protective cap.Label includes identification and safety compliance markings.
Specifications:
Dead space | 40ml |
Tidal volume range | 150-1500ml |
| Pressure drop@30LPM | 100Pa |
Moisture output | 32mg@500VT |
| Bacterial filtration efficiency | 99.999% |
Viral filtration efficiency | 99.999% |
| Weight | 29g |
| Connections | 22M/15F-22F/15M |
Gas monitoring | Yes |
