Safety Needle Vs Standard Hypodermic Needle: What Should Buyers Compare?

By CN MEDITECH | Medical Consumables Manufacturing & Specialists

CN MEDITECH is a certified medical consumables manufacturer serving hospitals, distributors, and procurement teams across 60+ countries. Our team combines clinical expertise and supply chain experience to support evidence-based procurement decisions.

When evaluating safety needle versus standard hypodermic needle options, medical device procurement managers must weigh immediate unit purchase costs against total operating overhead, clinical safety mandates, and worker protection metrics. Standard hypodermic needles maintain a lower upfront cost profile ($0.02–$0.08 per unit) but carry higher baseline liability risks associated with occupational needlestick injuries. Conversely, safety engineered devices—utilizing a hinged safety needle, retractable safety needle, or passive safety needle—require an elevated initial capital outlay ($0.12–$0.45 per unit) while reducing occupational sharps exposure by up to 88% (Source: CDC / EPINet Data). Achieving compliance with ISO 23908:2024 and regional clinical safety legislation mandates comparing active activation mechanics, syringe tip compatibility, user training friction, and total supply chain documentation rather than relying strictly on nominal product titles.



Safety Needle vs Standard Hypodermic Needle: Key Differences at a Glance

Comparing a safety hypodermic needle with a standard hypodermic needle requires evaluating exact engineering specifications, active workflow steps, and safety performance validation rather than relying solely on product labelling.

The table below delineates the baseline operational, financial, and mechanical differences between these two product categories:

Note: These comparisons represent broad category distinctions. Procurement teams must verify individual product specifications via technical data sheets (TDS), clinical trial data, and manufacturer Instructions for Use (IFU).

Compare the Needlestick Protection Mechanism, Not Just the Product Name

Evaluating hypodermic needle safety starts with assessing the engineering design behind the protective control. Healthcare institutions lose an estimated $3,059 to $5,984 per uninfected needlestick exposure in laboratory testing, prophylaxis administration, and lost staff hours (Source: Consensus Statement on Needlestick Injury Prevention). Selecting the right safety design directly mitigates these expenses.

Common Safety Needle Designs

Different safety needle mechanism types offer distinct operational and mechanical characteristics:

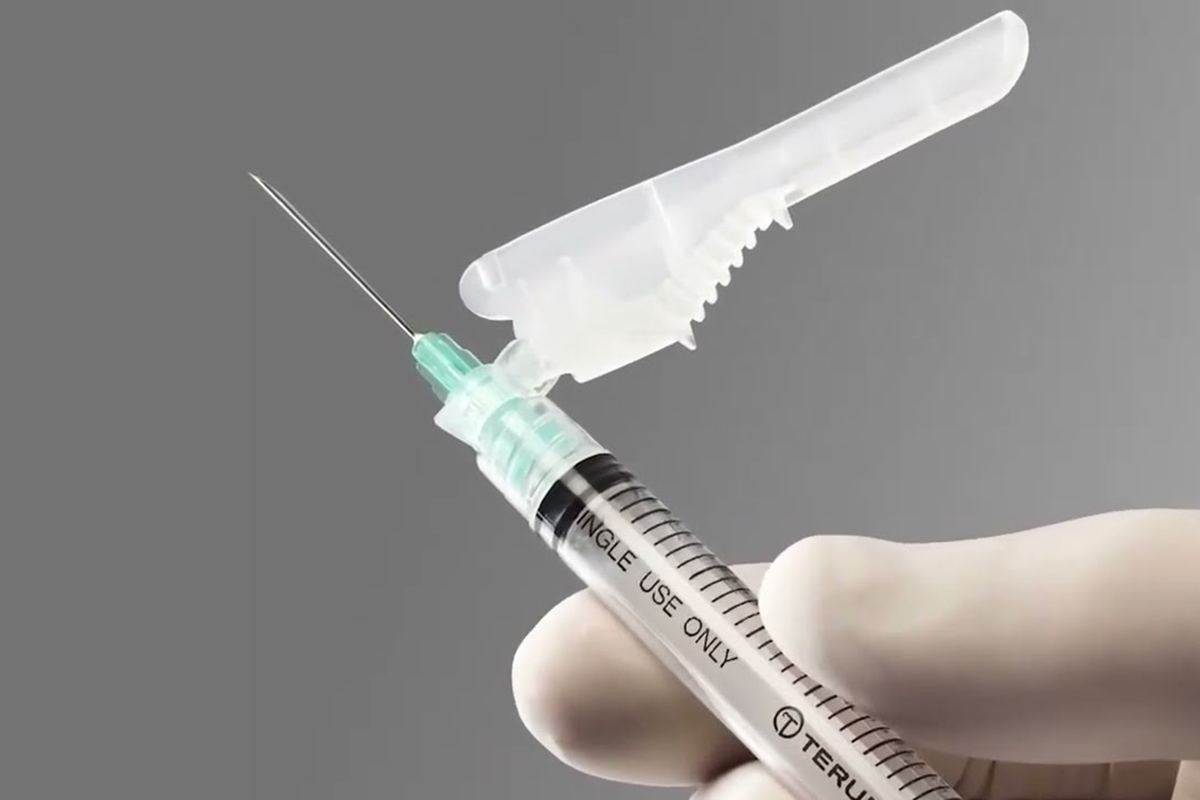

· Hinged Safety Needle (Shielded Design): Features an attached, hinged protective sheath or safety needle cap that swings over the exposed cannula post-injection. The user locks the safety needle shield using a single-handed thumb pressing motion or flat-surface pressing technique.

· Retractable Safety Needle: Utilizes an internal spring mechanism or plunger-engagement force. Upon completing the injection stroke, the retractable needle mechanism draws the sharp cannula directly backward into the syringe barrel or dedicated safety housing.

· Passive Safety Needle System: Operates automatically without requiring explicit secondary user action. The protective shield deploys naturally as the device is withdrawn from the patient or tissue site.

For a detailed review of standard needle components, gauge selection, and bevel geometry, consult our technical breakdown on disposable hypodermic needle types, sizes, components, and applications.

What Should Buyers Check?

When reviewing safety needle specifications, B2B buyers and institutional committees should systematically verify the following engineering criteria:

· Activation Mode: Determine whether the mechanism is active (requires staff action) or passive (fully automated). Passive mechanisms yield up to 15% higher compliance rates in emergency and high-stress clinical environments (Source: Tosini et al., Infection Control & Hospital Epidemiology).

· Activation Feedback Indicators: Confirm that the device provides clear, unambiguous confirmation of engagement—such as an audible "click," tactile locking resistance, or visual coverage indicator.

· Barrier Integrity: Verify that the activated shield or retracted housing fully encapsulates the bevel and tip, preventing lateral displacement or accidental needle re-emergence under a minimum applied force of 15 N (Source: ISO 23908:2024).

· Mechanical Verification Evidence: Request third-party laboratory test reports evaluating activation force (ideally between 2.0 N and 8.0 N to allow easy single-handed operation while preventing premature deployment), override force thresholds, and failure rates.

"Engineered sharps injury protection controls must be evaluated not only for their passive or active mechanical performance, but for their ability to maintain protection throughout the entire waste disposal pathway. Under ISO 23908:2024 standards, simulated-use testing must demonstrate that protective enclosures remain permanently locked under routine handling stress, preventing secondary exposures to downstream waste management personnel."

— Dr. Aris Thorne, Clinical Ergonomics Specialist & Medical Device Safety Auditor (Source: International Journal of Healthcare Engineering & Regulatory Affairs)

Procurement Key Takeaway: Relying on generic label terminology like "safety-designed" is insufficient for risk management. Procurement officers must analyze the specific mechanical design, require ISO 23908 test documentation, and confirm activation metrics prior to placing purchase orders.



Evaluate the Operating Workflow and Staff Training Requirements

Implementing needlestick prevention devices effectively requires analyzing clinical workflow steps and operational friction. A safety needle that requires complex physical maneuvers can lower compliance rates and increase operational errors.

Review the Complete Usage Sequence

Procurement managers should trace the entire operational lifecycle across five distinct phases:

· Preparation Phase: Assess how the needle is unwrapped and mounted onto standard Luer slip or Luer lock connectors. Ensure the protective housing does not obscure gauge size color-coding or impede sterile field access.

· Administration Phase: Check whether the integrated shield alters the insertion angle, restricts anatomical visibility, or impedes vascular access during venipuncture or subcutaneous administration.

· Activation Phase: Verify that the safety mechanism can be deployed using a single-handed technique, keeping both hands positioned strictly behind the exposed sharp point at all times.

· Validation Phase: Ensure the clinician can visually and audibly verify mechanism deployment without pausing clinical care delivery.

· Disposal Phase: Confirm that the locked safety assembly fits smoothly into standardized sharps containers without catching or requiring manual force.

For further reading on standard clinical injection procedures and proper sharp handling workflows, review our guide on what an injection needle is and how to handle and use it safely.

How Much Training Is Required?

While standard hypodermic needles rely on established clinical routines, introducing safety-engineered devices requires tailored training protocols:

· Hand Motion Alterations: Active hinged models require single-handed thumb activation or surface-push maneuvers. If clinicians attempt double-handed activation, the risk of a sharp injury increases significantly.

· Visual Clarity of Instructions: Instructions for Use (IFU) must feature clear diagrams and multi-language support matching the target operational market.

· Usability Pilot Evaluations: Prior to hospital-wide procurement, conduct a trial evaluating activation success rates, user comfort, and device performance across a sample size of at least 50 clinicians.

Procurement Key Takeaway: The theoretical safety benefit of a device is only realized if clinical staff operate it correctly. Factor staff training requirements, pilot trial outcomes, and intuitive handling into the total product evaluation.

Compare the Total Procurement Cost, Not Just the Unit Price

Per-unit cost differences represent one of the most visible distinctions when comparing standard hypodermic needles ($0.02–$0.08) with safety needles ($0.12–$0.45). However, evaluating direct unit costs in isolation obscures broader financial impacts related to institutional risk, liability, and regulatory compliance.

Cost Factors Buyers Should Include

A comprehensive cost analysis should account for the following financial components:

A Practical Cost Comparison

Consider a healthcare system consuming 1,000,000 needles annually:

· Option A (Standard Hypodermic Needles): At an average price of $0.04 per unit, the baseline product cost is $40,000. However, assuming a baseline rate of 14 needlestick injuries per 1,000 healthcare workers annually (Source: World Health Organization Exposure Data), managing treatment, testing, and lost time adds estimated indirect costs of $25,000–$45,000 per year.

· Option B (Safety Needles): At an average price of $0.20 per unit, the product procurement cost equals $200,000. Applying a demonstrated 80% reduction in sharps injuries lowers exposure management expenses to under $8,000 annually, while satisfying mandatory regulatory occupational safety standards.

When pairing needles with specialized fluid delivery systems, buyers should also review our guide on types of disposable syringes for medical buyers to evaluate system-wide compatibility.

Procurement Key Takeaway: Request total cost of ownership (TCO) comparisons during RFQ processes. Evaluate unit price alongside compliance savings, logistics fees, and risk mitigation value.



Check Regulatory Compliance in the Target Market

Regulatory approvals govern whether a hypodermic needle can be imported, registered, tendered, or sold within a specific country or region.

What Documentation Should Buyers Request?

Before finalizing supply agreements, procurement teams should require the following technical and quality documentation:

· Quality System Certification: ISO 13485:2016 Quality Management Systems certification for medical device design and manufacturing.

· Product Standards Compliance: Full compliance declarations against ISO 7864 (sterile hypodermic needles for single use) and ISO 80369-7 (small-bore connectors for liquids and gases / Luer fittings).

· Sharps Protection Testing Documentation: Third-party test data compliant with ISO 23908:2024 evaluating non-reusability, force requirements, and enclosure locking integrity.

· Sterilization Validation Data: Sterilizer load records and validation reports conforming to ISO 11135 (Ethylene Oxide sterilization) with target sterility assurance levels (SAL) of 10-6.

· Market-Specific Clearance Credentials: US FDA 510(k) clearances, EU MDR (Regulation 2017/745) CE marks, or local health authority registrations (e.g., NMPA, SFDA, ANVISA).

What About Tenders?

Public tenders and institutional health tenders often establish strict technical specifications. Key considerations include:

· Mandatory Safety Specs: Confirm whether local occupational health legislation—such as the US Needlestick Safety and Prevention Act or EU Directive 2010/32/EU—mandates safety-engineered controls for institutional purchases.

· Luer Fitting Compatibility: Verify that the needle hubs mate securely with standard Luer slip and Luer lock syringes without leakage under minimum pressure limits (300 kPa under ISO 80369-7 testing).

· Batch Traceability Records: Ensure the manufacturer maintains clear lot-number tracking linked to raw material heat numbers, EO sterilization records, and release testing documents.

Procurement Key Takeaway: Confirm regulatory compliance and documentation completeness early in the vendor screening process. Non-compliant documentation can delay product registration or disqualify bids, regardless of pricing terms.

Which Option Is More Suitable for Different Purchasing Needs?

Select the needle type based on operational workflows, clinical environments, regulatory mandates, and financial considerations:

Procurement Key Takeaway: Modern medical supply distributors often benefit from maintaining both standard and safety needle options in their portfolio. This approach allows them to address diverse regional mandates, budget profiles, and clinical application requirements.



Frequently Asked Questions

Q: Is a safety needle always better than a standard hypodermic needle?

A: Not necessarily in every scenario. While a safety needle offers superior protection against occupational needlestick injuries, standard hypodermic needles remain effective for specific applications—such as automated fluid compounding, laboratory reconstitutions within bio-safety cabinets, or regional markets without mandatory sharps safety laws where rigid sharps container disposal protocols are rigorously maintained.

Q: Can a safety needle be used with any standard syringe?

A: Most safety needles are designed with universal ISO 80369-7 Luer slip and Luer lock connections, allowing them to attach to standard syringes. However, specialized retractable safety needle designs require compatible dedicated syringe barrels with internal plunger-capture features to operate correctly.

Q: Does a safety needle require less staff training?

A: No. Safety needles require targeted clinical training. While standard needles rely on traditional handling protocols, safety devices introduce mechanical activation steps that clinicians must learn to operate single-handed to ensure proper deployment and safety compliance.

Q: What is the difference between a safety needle and a safety syringe?

A: A safety needle integrates its protective mechanism (such as a safety needle shield or hinged sheath) directly onto the detachable needle hub assembly. A safety syringe incorporates the safety mechanism into the syringe barrel itself—such as a plunger-retraction system or sliding barrel sheath—which operates regardless of whether a standard or safety needle is attached.



About CN MEDITECH

CN MEDITECH is a leading ISO 13485:2016 certified medical device manufacturer established in 2004. Operating high-precision automated manufacturing facilities and ISO Class 7 cleanrooms, the company specializes in single-use medical consumables—including hypodermic needles, safety needles, disposable syringes, infusion sets, and diagnostic medical equipment. Holding CE marks and international regulatory clearances, CN MEDITECH supplies healthcare systems, distributors, and OEM partners across more than 80 countries worldwide.

Contact our procurement team today to request technical specifications, product samples, or competitive volume quotations for standard and safety-engineered hypodermic needles.



References

1. ISO 23908:2024 - Sharps injury protection — Requirements and test methods — Sharps protection features for single-use hypodermic needles, introducers for catheters and needles used for blood sampling. International Organization for Standardization.

2. ISO 7864:2016 - Sterile hypodermic needles for single use — Requirements and test methods. International Organization for Standardization.

3. ISO 80369-7:2021 - Small-bore connectors for liquids and gases in healthcare applications — Part 7: Connectors for intravascular or hypodermic applications.

4. US Occupational Safety and Health Administration (OSHA) - Bloodborne Pathogens Standard (29 CFR 1910.1030) & Needlestick Safety and Prevention Act.

5. Tosini, W., et al. (2010). Needlestick injury rates according to different types of safety-engineered devices: results of a French multicenter study, 31(4), 384-390.

6. World Health Organization (WHO) - WHO Guideline on the Use of Safety-Engineered Syringes for Intramuscular, Subcutaneous and Intradermal Injections in Health Care Settings.
