Disposable Hypodermic Needle: Types, Sizes, Components, And Applications

By CN MEDITECH | Medical Consumables Manufacturing & Specialists

CN MEDITECH is a certified medical consumables manufacturer serving hospitals, distributors, and procurement teams across 60+ countries. Our team combines clinical expertise and supply chain experience to support evidence-based procurement decisions.

Choosing the Right Hypodermic Needle for Your Product Range

Selecting the correct hypodermic needle configuration is critical for medical distributors, hospital purchasing departments, and clinical laboratories balancing patient safety, regulatory compliance, and cost efficiency. The global needles market size was valued at USD 8.37 billion in 2023 and is projected to reach USD 20.19 billion by 2030, growing at a CAGR of 6.6% during the forecast period (Source: Grand View Research 2024 Report).



Procurement strategies must account for rigid manufacturing specifications defined by international standards, such as ISO 7864 for sterile hypodermic needles and ISO 6009 for color-coding. Key parameters including gauge outer diameter, wall thickness, bevel geometry, tissue penetration force (measured in Newtons), and hub-to-syringe Luer compatibility directly dictate clinical performance. For medical buyers, establishing a competitive product catalog requires offering high-volume standard lines alongside specialized safety options, ensuring batch-to-batch consistency, ISO 13485 compliance, and full technical documentation for international tenders.



What Is a Hypodermic Needle?

A hypodermic needle is a sterile, single-use, hollow metallic tube sharpened at one end and attached to a plastic hub at the other, engineered to penetrate the skin for fluid administration, medication delivery, or blood and tissue aspiration.

Hypodermic Needle vs. Syringe Interface

While commonly used together as a system, a hypodermic needle and a syringe perform distinct functions. The syringe serves as the fluid reservoir and volumetric control mechanism, whereas the needle provides the subcutaneous, intramuscular, or intravenous conduit. The interface between these components is governed by ISO 80369-7 standards for small-bore connectors. The needle hub must achieve a leak-free mechanical fit with either Luer slip or Luer lock syringe barrels.



Precise hub manufacturing tolerances prevent liquid and air leakage under injection pressures exceeding 300 kPa (Source: ISO 7864:2016). For procurement managers, verifying hub cross-compatibility across syringe inventory eliminates fitting failures during clinical procedures. For a broader analysis of syringe configurations, consult this complete guide on types of disposable syringes.

Single-Use Disposable Hypodermic Needles

Modern medical protocols require single-use, sterile disposable needles to eliminate cross-contamination and healthcare-associated infections (HAIs). Single-use sterile needles undergo validated Ethylene Oxide (EO) gas sterilization or Gamma Irradiation, achieving a Sterility Assurance Level (SAL) of 10⁻⁶ (Source: ISO 11135:2014). Key procurement evaluation criteria include:

· Packaging Integrity: Individual blister packs utilizing medical-grade paper and plastic films that maintain sterile barrier integrity over a 5-year shelf life under controlled conditions.

· Sterility Assurance: Batch-specific sterilization indicator strips and verifiable Certificates of Analysis (CoA) included with each production shipment.

· Clear Product Identification: ISO 6009 color-coded needle hubs and transparent packaging labels detailing gauge size, tube length, lot number, and manufacturing/expiration dates. For additional insights into needle operation and handling protocols, refer to this detailed overview of what an injection needle is and how to handle it.

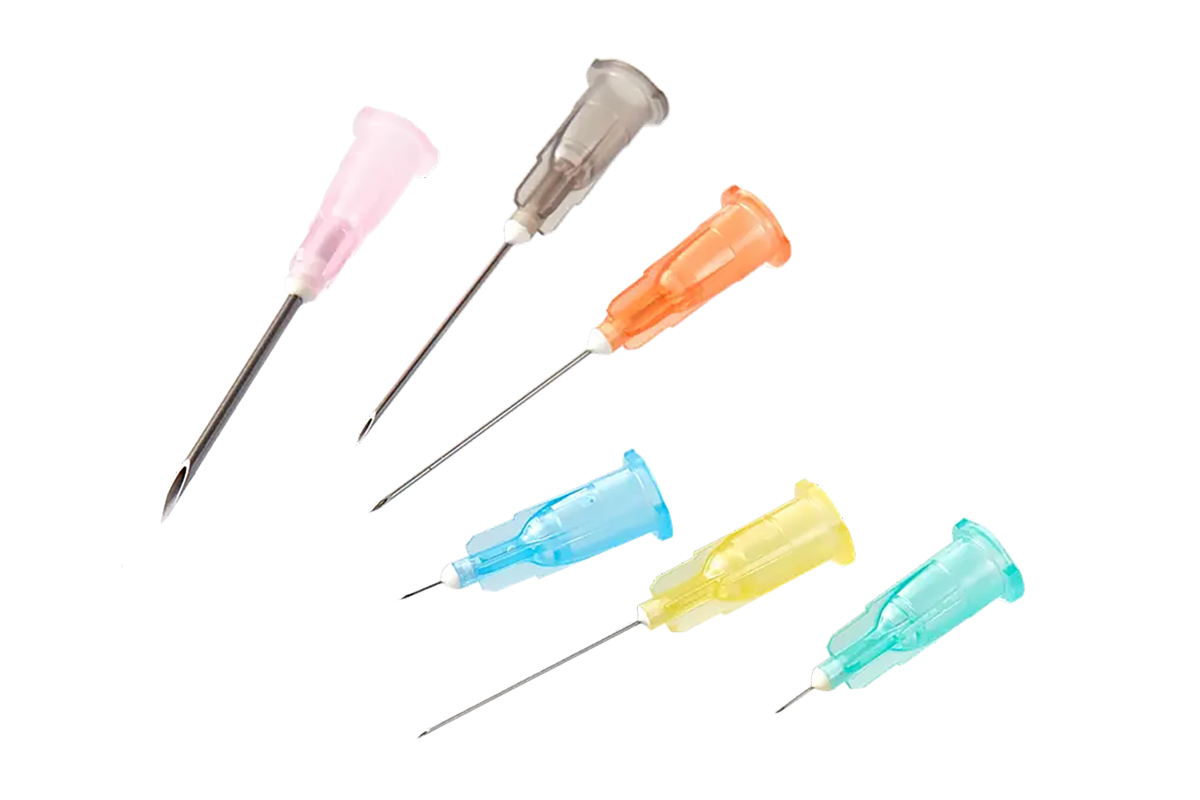

Main Components of a Hypodermic Needle

Evaluating the structural anatomy and hypodermic needle parts enables buyers to verify material quality and manufacturing standards during vendor assessments.

Needle Tube and Bevel

The cannula or tube is drawn from AISI 304 or AISI 316 stainless steel, complying with ISO 9626 standards for stiffness, flexural resistance, and corrosion resistance. The needle point is precision-ground into a multi-beveled tip—typically a regular bevel ( 11° ± 2° ) for intramuscular administration or a short bevel ( 17° ± 2° ) for arterial access or nerve blocks (Source: ISO 7864:2016). Penetration force is minimized by applying a micro-thin layer of medical-grade silicone lubricant to the tube surface, reducing insertion drag force to less than 0.5 N.

Hub and Connector

The hub is precision-molded from medical-grade polypropylene (PP) or polycarbonate (PC). It secures the proximal end of the stainless steel cannula using non-toxic epoxy resin or UV-cured adhesives. The hub features an internal 6% Luer taper compatible with standard male Luer slip and Luer lock connectors. Per ISO 6009 specifications, color pigments are integrated directly into the hub polymer to provide immediate visual identification of the hypodermic needle gauge (e.g., 21G is deep green, 23G is blue, 25G is orange).

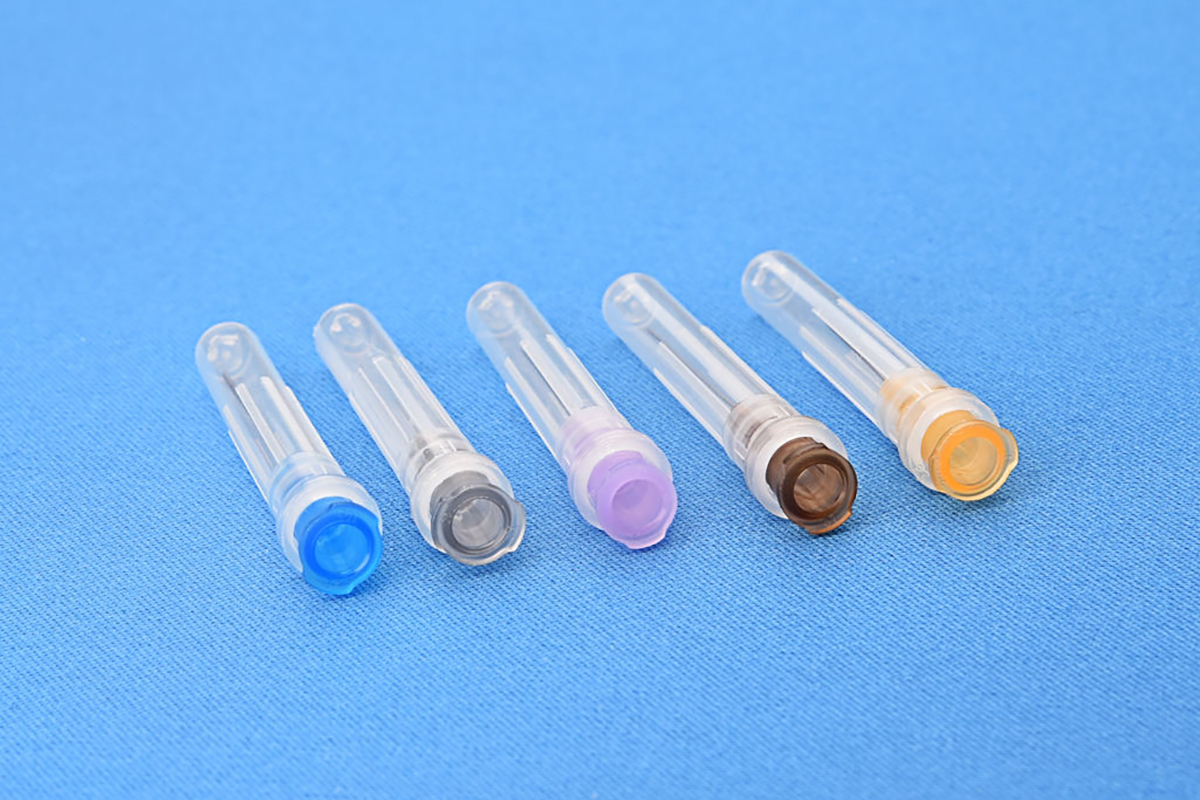

Protective Cap and Safety Features

A rigid polypropylene cap covers the needle tube before use to preserve tip sharpness and sterility while protecting medical staff during setup. Safety-engineered models incorporate secondary protective devices—such as hinged shields, sliding sleeves, or spring-assisted retraction mechanisms—designed to permanently lock over or retract the cannula immediately after injection.



Types of Hypodermic Needles

Categorizing types of hypodermic needles allows healthcare organizations and distributors to select appropriate products based on clinical setting, occupational safety laws, and patient care needs.

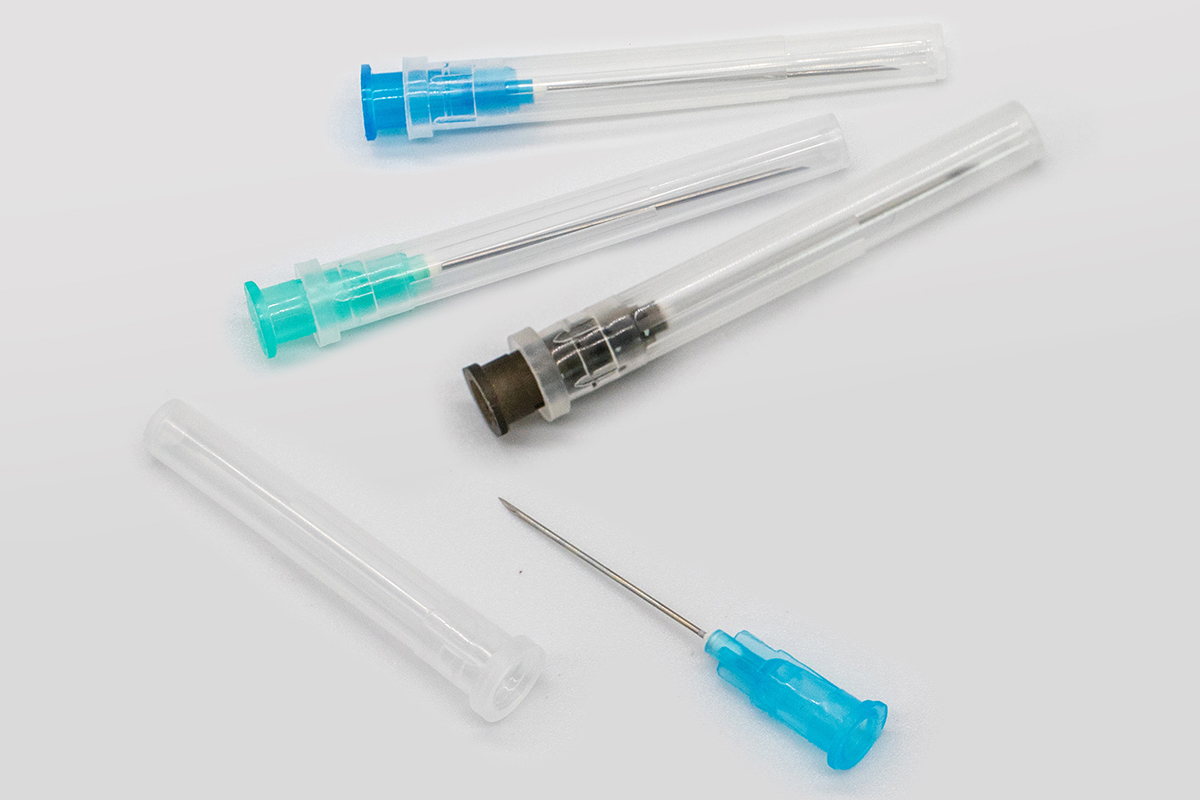

Standard Disposable Hypodermic Needles

· Product Features: Standard disposable needles feature an AISI 304 stainless steel cannula, an ISO 6009 color-coded polypropylene hub, and a protective cap. They are manufactured in gauges ranging from 16G to 30G and lengths from 1/2 inch (13 mm) to 1.5 inches (38 mm).

· Typical Applications: Utilized in general clinical procedures, including intramuscular (IM), subcutaneous (SC), and intradermal (ID) injections, as well as routine diagnostic blood sampling and medication draw-up.

· Procurement Considerations: Compare gauge and length portfolios, hub fit consistency, blister pack seal strength, and unit packing densities to optimize bulk shipping volumes.

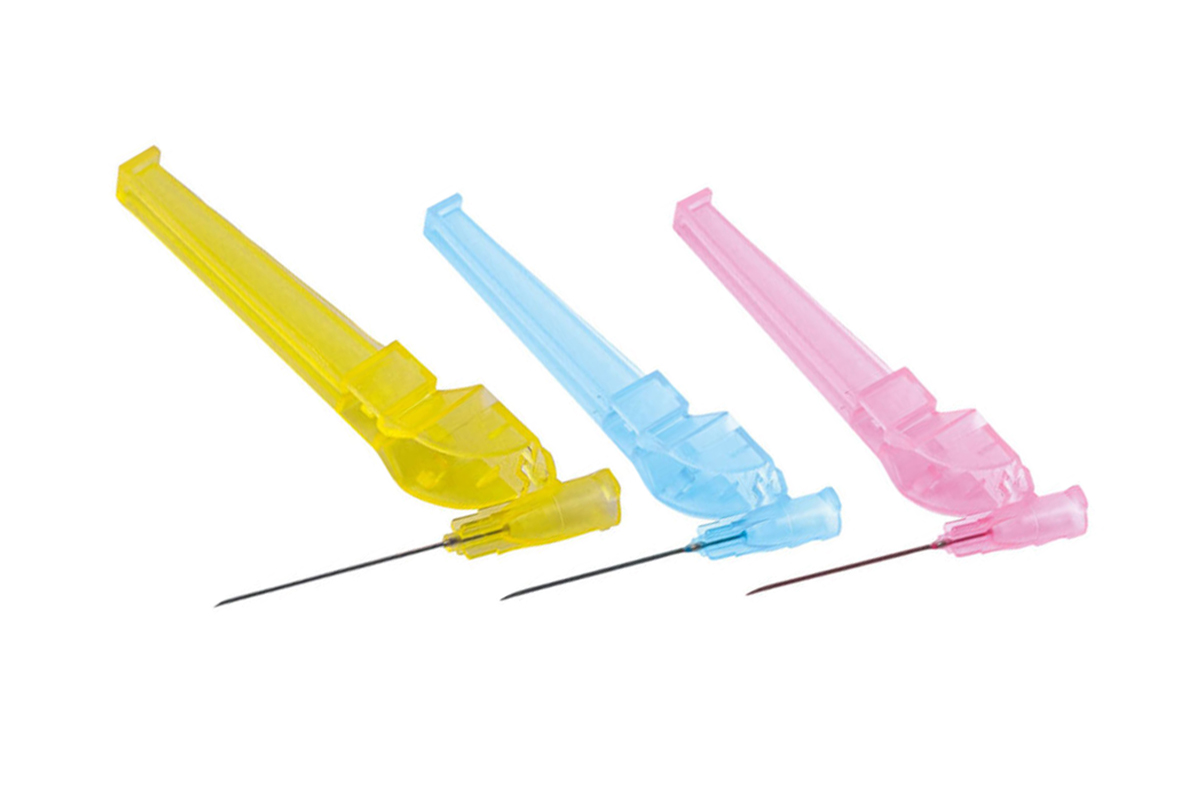

Safety Hypodermic Needles

· Product Features: A safety hypodermic needle includes built-in sharp protection mechanisms (hinged shield, sliding sheath, or retractable cannula) that permanently enclose the needle tip post-use. According to official estimates, safety-engineered sharp devices reduce occupational needlestick injuries by 62% to 88% in hospital environments (Source: OSHA Occupational Safety Guidelines).

· Typical Applications: Essential for high-risk clinical areas, emergency medicine, oncology, home care, and healthcare facilities operating under mandatory sharps safety laws (such as the US Needlestick Safety and Prevention Act and EU Directive 2010/32/EU).

· Procurement Considerations: Evaluate activation mechanism (one-handed vs. two-handed), passive vs. active engagement, clear tactile or audible lock indicators, cross-compatibility with Luer lock syringes, and regulatory certifications (CE Mark, FDA 510(k)).

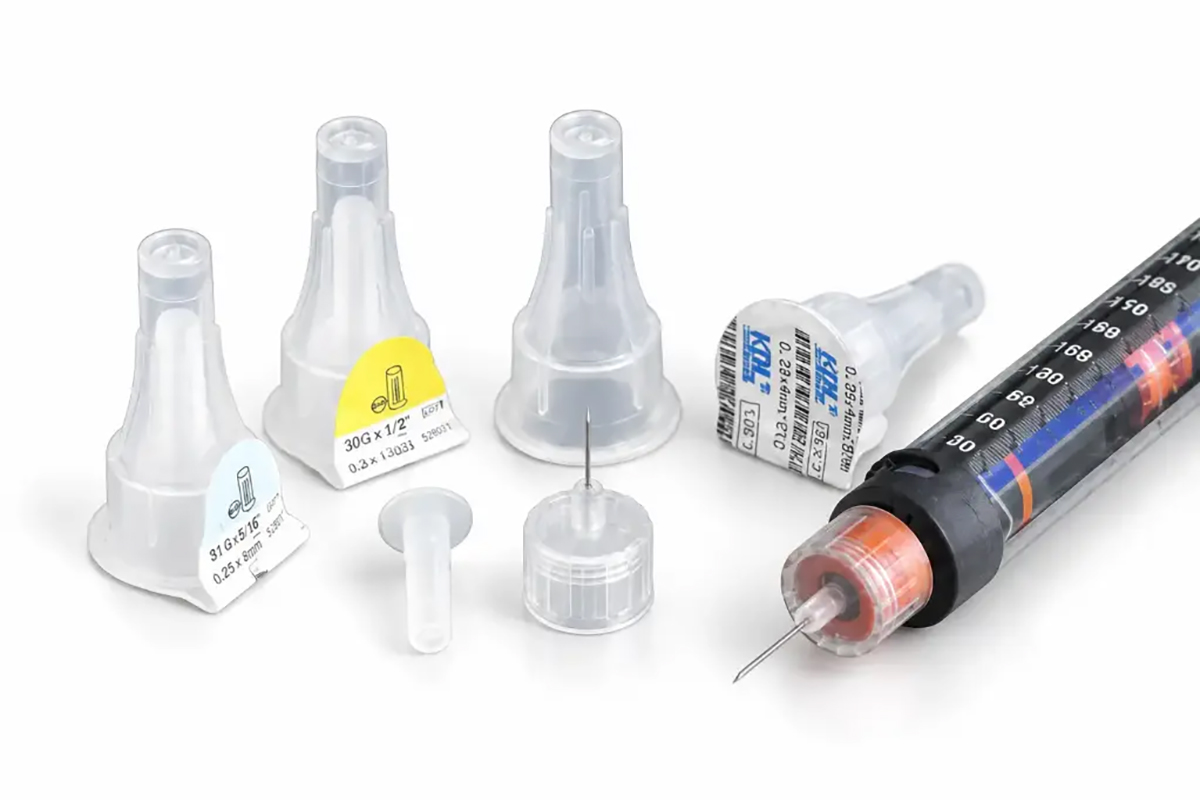

Insulin Pen Needles

· Product Features: Insulin pen needles are specialized, double-ended needle assemblies designed to thread directly onto disposable or reusable insulin delivery pens. They utilize universal screw-thread connection ports conforming to ISO 11608-2 standards and cannot be mounted onto standard Luer syringes.

· Common Specifications: Manufactured in ultra-fine gauges from 29G to 34G, with short cannula lengths including 4 mm, 5 mm, 6 mm, and 8 mm to deliver insulin into the subcutaneous layer while avoiding accidental intramuscular penetration.

· Procurement Considerations: Verify ISO 11608-2 thread compatibility across major pen brands, extra-thin wall (ETW) technology for reduced injection force, automated inner/outer cap removal, and retail box labeling.

Other Specialized Needle Options

· Blunt Fill Needle: A blunt fill needle features a non-sharp cannula point with a 45° bevel angle requiring up to 10 times more force to penetrate human skin than standard needles. It is designed specifically for drawing medication from vials or rubber stoppers, eliminating needle-stick hazards during drug preparation.

· Filter Needle: Incorporating an integrated 5-micron molded filter membrane within the plastic hub, a filter needle traps glass particles or rubber particulates when aspirating liquid medications from glass ampoules.

· Specialized Application Needles: Includes specialized lines such as spinal, epidural, and dental needles. For a comprehensive overview of dental injection systems, refer to this detailed article on dental needle specifications and uses.



Hypodermic Needle Sizes: Gauge, Length, and Selection

Selecting appropriate hypodermic needle sizes requires an understanding of the mathematical relationship between gauge numbers, outer dimensions, and fluid flow dynamics principles.

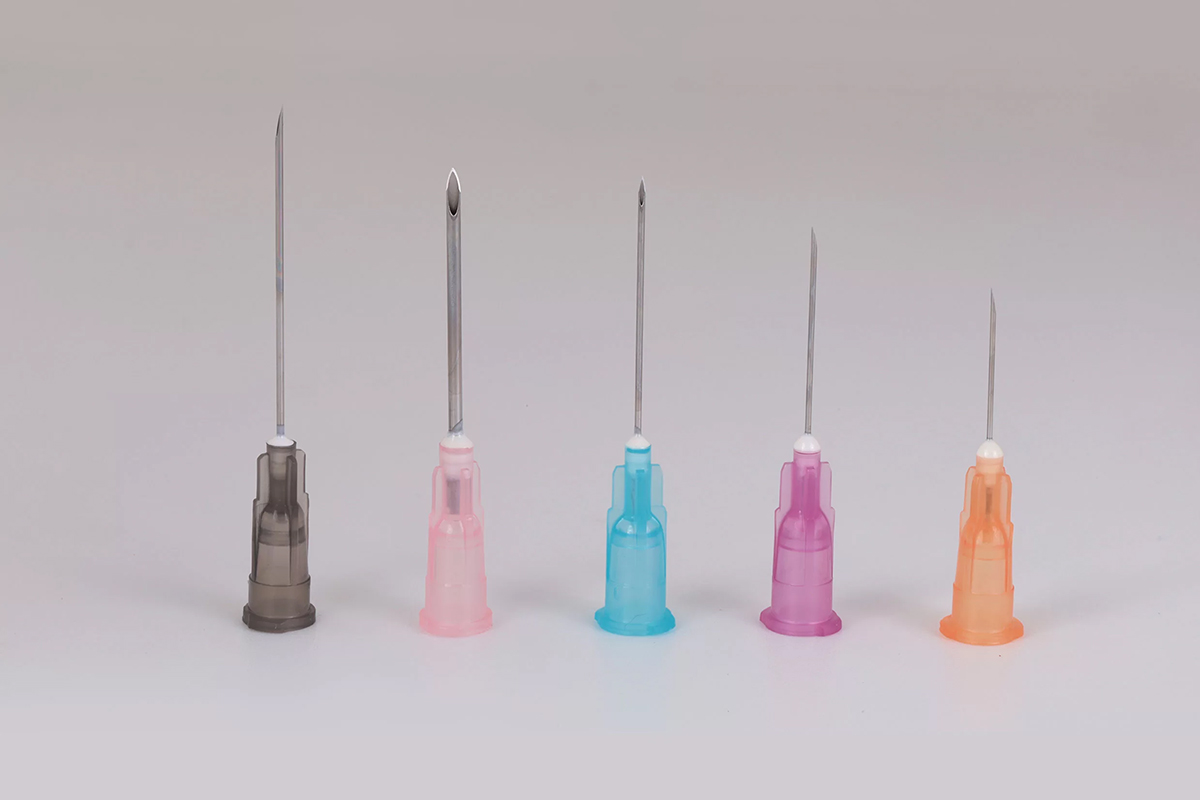

Understanding Needle Gauge

The hypodermic needle gauge (abbreviated "G") indicates the external diameter of the metal cannula tube. The gauge system follows an inverse scale: a higher gauge number corresponds to a smaller outer diameter. For example, an 18G needle has an outer diameter of approximately 1.2 mm, while a 27G needle measures approximately 0.4 mm (Source: ISO 9626:2016).



Standard commercial gauge options across medical supply catalogs include:

· 18G–20G: Large-bore size; recommended for high-viscosity medications, blood transfusions, and rapid fluid aspiration.

· 21G–23G: Medium-bore size; standard choice for routine intramuscular injections and diagnostic venipuncture.

· 25G–27G: Small-bore size; standard choice for subcutaneous administration, vaccinations, and pediatric applications.

· 29G–34G: Micro-bore size; dedicated to insulin delivery and fine dermatology or aesthetic procedures.



Gauge selection must balance clinical delivery speed against patient comfort, fluid viscosity, and target tissue anatomy.

Understanding Needle Length

Hypodermic needle length measures the exposed metal cannula from the hub junction to the bevel tip, expressed in millimeters or inches. Needle gauge and needle length are independent parameters; a single gauge can be produced in multiple lengths.



Standard lengths range from 4 mm (0.16 inches) up to 38 mm (1.5 inches):

· 4 mm – 8 mm: Short lengths used primarily for insulin pen needles and subcutaneous micro-injections to prevent intramuscular deposit.

· 13 mm – 25 mm (1/2 in to 1 in): Intermediate lengths used for intradermal, subcutaneous, and pediatric intramuscular injections.

· 38 mm (1.5 in): Standard length for deep adult intramuscular injections and deep tissue access.

Hypodermic Needle Size Reference Table

The following hypodermic needle gauge chart summarizes key physical dimensions and verification requirements for procurement teams:

Note: Single gauge or length combinations should not be assumed to suit all clinical applications. Always cross-reference sizes against specific drug manufacturer guidelines and institutional clinical protocols.

Applications of Different Hypodermic Needle Types

Selecting the correct needle profile aligns clinical requirements with product functionality to optimize supply chain inventory.



· General Injection and Aspiration: Standard conventional disposable needles are selected based on tissue depth and fluid viscosity. Large-bore needles (18G–21G) handle rapid fluid withdrawal or viscous suspension administration, while medium-bore needles (22G–23G) serve general adult intramuscular routines.

· Safety-Focused Injection Workflows: Safety hypodermic needles are specified in settings focused on needle-stick injury prevention and statutory workplace safety compliance. Procurement choices prioritize reliable safety shield engagement and low training requirements for nursing staff.

· Insulin Administration: Insulin pen needles require strict verification of pen system thread compatibility and precise short cannula lengths (4 mm to 6 mm) to ensure reliable subcutaneous deposition and consistent glycemic control.

Key Factors to Consider When Purchasing Hypodermic Needles

When evaluating needle suppliers and issuing tenders, procurement officers should analyze four core operational criteria:

Product Specifications and Compatibility

· Dimensional Accuracy: Confirm compliance with ISO 9626 (cannula dimensions) and ISO 7864 (needle point bevel performance and lubrication standards).

· Connector Standardization: Verify Luer dimensions under ISO 80369-7 to ensure seamless assembly with standard Luer slip and Luer lock syringe barrels without leakage under pressure.

· Siliconization Quality: Ensure uniform medical-grade silicone oil coating to maintain low insertion forces across all production lots.

Quality, Sterility, and Documentation

· Regulatory Certifications: Require full ISO 13485 Quality Management System certification, CE Marking under EU MDR 2017/745, and FDA 510(k) clearances where applicable.

· Sterilization Validation: Review batch-level Ethylene Oxide (EO) residual testing reports adhering to ISO 11135 limits (residual EO＜4.0 mg per device).

· Quality Assurance Documentation: Obtain sample Certificates of Analysis (CoA), biocompatibility reports (ISO 10993 series), and sharp penetration force test data.

Packaging, Labeling, and OEM Requirements

· Packaging Integrity: Audit blister packaging materials (peelable medical paper/film) to ensure puncture resistance and barrier performance over a 5-year storage period.

· Labeling Compliance: Confirm that unit packaging, inner boxes, and outer cartons display complete multilingual information, ISO 6009 color identification, lot numbers, sterilization symbols, and expiry dates.

· Customization Capability: Assess supplier flexibility regarding private labeling, custom barcode configurations, and tailored bulk packing ratios.

Bulk Supply and Tender Readiness

· Production Capacity: Evaluate manufacturer monthly production capacity, automated assembly line capabilities, and vision-inspection quality control systems.

· Supply Chain Continuity: Confirm lead times, minimum order quantities (MOQ), container loading densities, and emergency safety stock agreements.

· Tender Documentation: Ensure rapid access to technical data sheets (TDS), Declaration of Conformity (DoC), authorization letters, and free sales certificates (FSC).



Building a Hypodermic Needle Product Range for Different Purchasing Needs

Medical distributors and hospital networks can structure a balanced needle portfolio using a three-tier catalog model:

· Core Product Line: Establish baseline volume inventory around high-demand conventional needle sizes (18G, 21G, 22G, 23G, and 25G in 1-inch and 1.5-inch lengths). This covers over 70% of standard hospital injection and diagnostic needs.

· Value-Added Product Options: Add safety-engineered hypodermic needles and insulin pen needles (4 mm, 5 mm, 6 mm in 31G–32G) to capture high-margin hospital safety tenders and retail pharmacy demand.

· Supply and Customization Planning: Build an integrated product matrix linking gauge sizes, colors, length choices, packaging styles, and custom OEM branding parameters to simplify reordering for international client accounts.

Frequently Asked Questions

Q: What does the gauge of a hypodermic needle mean?

A: The gauge (G) designates the external diameter of the needle cannula per ISO 9626 standards. The gauge scale works inversely: a larger gauge number represents a smaller cannula outer diameter. For example, a 25G needle has an outer diameter of approximately 0.5 mm, whereas an 18G needle measures approximately 1.2 mm.

Q: How do I choose the correct hypodermic needle length?

A: Needle length selection depends on the clinical administration route, target anatomical depth, and patient body mass. Intramuscular injections typically require longer needles (25 mm to 38 mm / 1 to 1.5 inches) to reach deep muscle tissue, subcutaneous injections use intermediate lengths (13 mm to 16 mm / 1/2 to 5/8 inches), and insulin delivery utilizes ultra-short needles (4 mm to 8 mm) to target dermal layers.

Q: Are safety hypodermic needles compatible with all syringes?

A: Most safety hypodermic needles feature standardized ISO 80369-7 Luer slip or Luer lock connectors, making them fully compatible with standard medical syringes. However, specialized safety systems integrated directly into syringe barrels are fixed assemblies. Buyers should verify connection compatibility during sample testing.

Q: How Do Insulin Pen Needles Differ in Design from Conventional Hypodermic Needles?

A: Insulin pen needles feature a double-ended needle cannula mounted within a threaded plastic hub conforming to ISO 11608-2 standards, allowing them to screw onto insulin pens. Conventional needles utilize Luer tapers for syringe barrels. Pen needles also use micro-bore gauges (29G to 34G) and shorter lengths (4 mm to 8 mm) tailored for subcutaneous insulin self-administration.

Q: What Information Is Needed to Request a Hypodermic Needle Quotation?

A: To obtain an accurate B2B quotation, buyers should specify:

· Target gauge and length combinations (e.g., 21G x 1.5 inch).

· Needle type (conventional, safety-engineered, insulin pen, or blunt fill).

· Hub type (Luer lock / Luer slip compliance).

· Packaging format (individual blister paper-pack, box quantity, shipping carton dimensions).

· Annual volume requirements, OEM branding needs, and destination country for regulatory compliance.
