CNME081102-1
CNMEDITECH

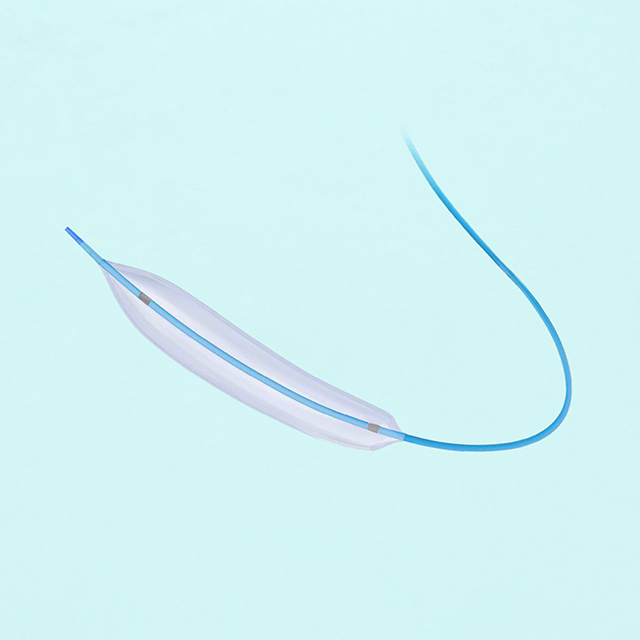

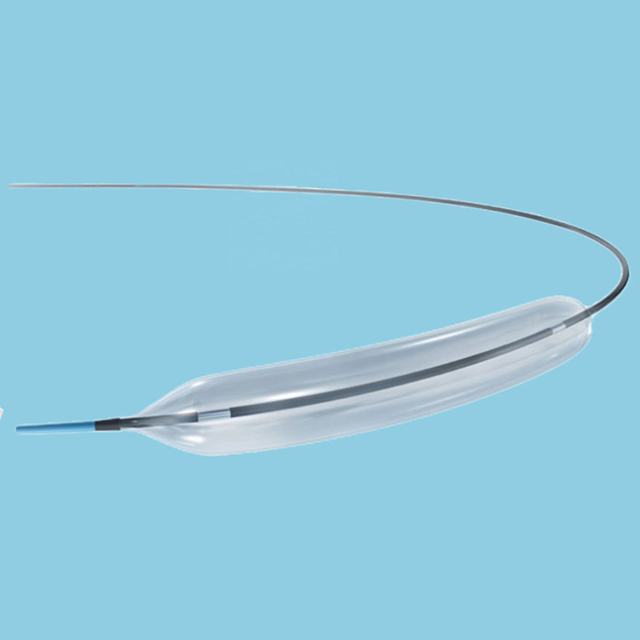

Balloon dilatation of the stenotic portion of coronary artery or bypass graft stenosis, or restoring coronary flow in patients with SYsegment elevation myocardial infarction, or balloon dilatation of stent after implantation.
*Ultra low tip profile for good flexibility and crossability.
*Soft tapered tip provides smooth transition from guidewire to balloon catheter to avoid "fish mouth", and minimize the vessel damage.
*Three-directional memory folding of the balloon allows of size minimization with great withdrawal capability, and ensures the good performance of repeated dilatation.
*Transparent hub is convenient to observe the air bubble to reduce the operation risk.
Catheter Design | Rapid exchange |
Balloon Material | Pebax |
Balloon Compliance | Semi-compliant |
Balloon Diameter (mm) | 1.5,1.75,2.0,2.25,2.5,2.75,3.0,3.25,3.5,4.0 |
Balloon Length (mm) | 6,8,10,15,20,25,30 |
Proximal OD | 2.1F |
DistaI OD | 2.55F |
Effective Length | 143cm |
Markers Band | 1(φ1.5mm)/2(φ1.75-4.0mm) |
Nominal Pressure | 6atm |
Rated Burst Pressure | 16atm |
Guidewire Compatibility | 0.014” |
Minimum Guiding Catheter Compatibility | 5F |
1.Controlled Balloon Expansion:The balloon is designed to provide controlled expansion during inflation, supporting predictable balloon positioning and dilatation.
2.Flexible Catheter Shaft:The catheter shaft combines flexibility and support to facilitate advancement and positioning during coronary intervention procedures.
3.Radiopaque Markers:Radiopaque markers help clinicians identify the balloon position under fluoroscopy and support accurate positioning during the procedure.
4.Multiple Configurations:Different balloon diameters, lengths and catheter configurations can be provided to meet different clinical and market requirements.
*Professional medical device supply experience
*Multiple product configurations available
*Consistent manufacturing and quality control

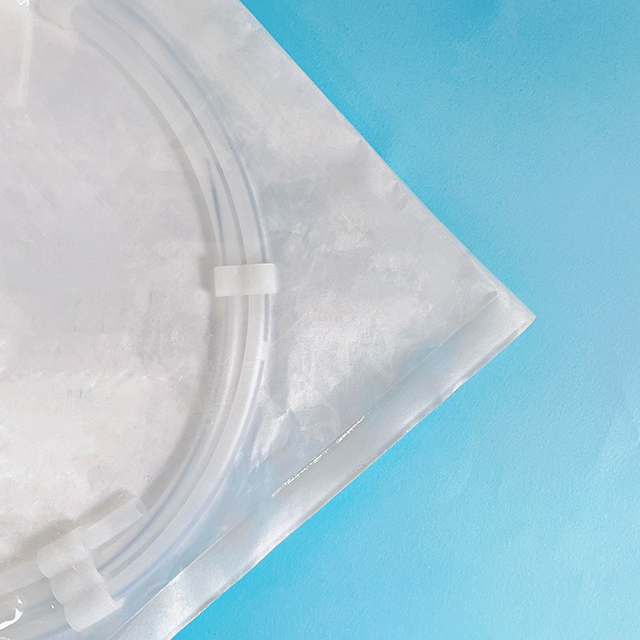

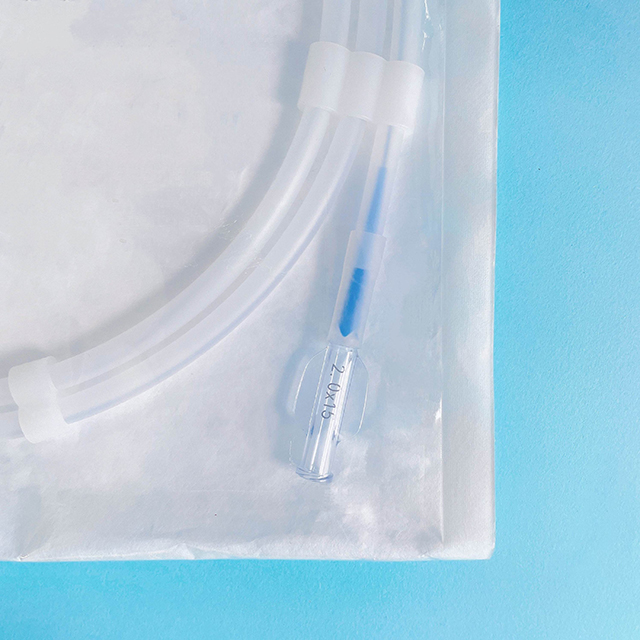

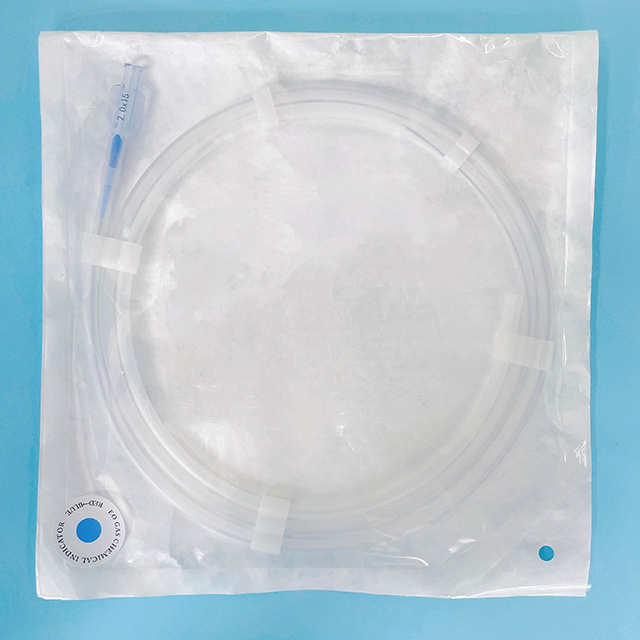

*Sterile single-use packaging
*OEM and private-label services
*Flexible specifications for different markets
*Support for distributors and medical device companies
*Product samples and technical specifications available upon request

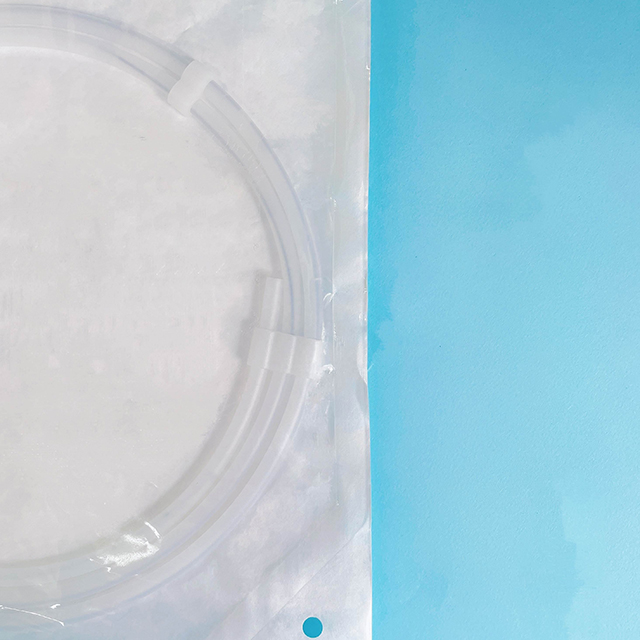

A PTCA Balloon Dilatation Catheter is a catheter with an inflatable balloon at its distal end, designed for balloon dilatation of stenotic coronary vessels during percutaneous coronary intervention.
It is primarily used for coronary balloon angioplasty and may also be used for lesion preparation or other indicated balloon dilatation procedures during PCI.
Different balloon diameters and lengths can be offered. Please contact us with your required specifications for available options.
Yes. The product is supplied as a sterile, single-use medical device according to the applicable product configuration.
Yes. OEM/ODM services, including product specifications, packaging and labeling, can be discussed according to customer requirements and applicable regulatory requirements.
Yes. Sample availability can be confirmed according to the required balloon size, length and catheter configuration.
