Views: 0 Author: Site Editor Publish Time: 2026-04-02 Origin: Site
In critical care and emergency medicine, the failure to establish rapid, reliable vascular access is not just a delay—it is a direct threat to patient survival. When peripheral intravenous (IV) access fails, often in patients with shock, obesity, burns, or a history of substance use, the clinical pathway narrows swiftly. The decision that follows—how to secure an alternative lifeline—carries profound implications.
For decades, intraosseous (IO) access has been the established rescue, but the landscape of IO devices has evolved. The fundamental choice now faced at the point of care is between traditional manual IO needles and modern powered IO drills. This choice influences more than just speed; it affects first-pass success, operator confidence, and ultimately, the trajectory of resuscitation.
The principle of intraosseous infusion—using the non-collapsible marrow cavity as a fast-entry conduit—is well-validated. Guidelines from the American Heart Association (AHA), Advanced Trauma Life Support (ATLS), and others mandate its consideration early in scenarios of difficult IV access. However, adoption and technique have historically been inconsistent.
Today, with increased awareness and technological advancement, IO is moving from a last-ditch effort to a strategically deployed first-line tool in specific emergencies. The selection of the device itself—manual IO needle versus IO drill—has become a critical variable in the protocol. Understanding the nuanced performance characteristics of each IO method is essential for optimizing emergency response and fluid/therapeutic delivery.

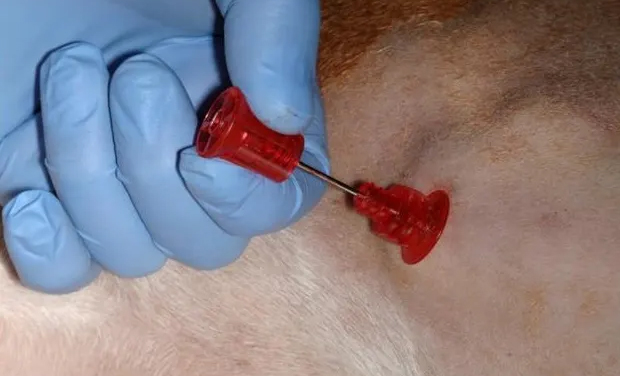

The manual io needle, often resembling a sturdy, styleted needle with a handle, represents the foundational technique. Its operation relies entirely on operator force and precise manual control.
Successful insertion of a manual io needle requires a specific, practiced motion: a firm, twisting pressure with the heel of the palm, not the fingertips, until a distinct "pop" or loss of resistance indicates entry into the medullary space. The preferred adult site is the proximal tibia or humeral head. This method demands significant proprioceptive feedback. For a detailed, step-by-step guide on proper technique across all sites, refer to this comprehensive resource on how to perform IO access safely. Operators must differentiate between the feel of traversing the cortex and the sensation of skidding off bone—a common cause of failure.
In a cardiac arrest with a frail, elderly patient, the manual technique can be remarkably fast and effective due to often thinner bone cortex. However, in a robust, well-muscled adult in hypovolemic shock, the required force is substantial. An operator may fatigue, apply asymmetric pressure, or fail to maintain needle alignment, leading to periosteal stripping, needle bending, or incomplete penetration. The consequence is a lost 30-60 seconds, a potentially compromised sterile field if multiple attempts are made, and a delay in administering critical drugs like epinephrine or amiodarone.
Research indicates that while manual devices have high success rates in expert hands, they show more variable performance across diverse provider skill levels and patient anatomies compared to powered devices.

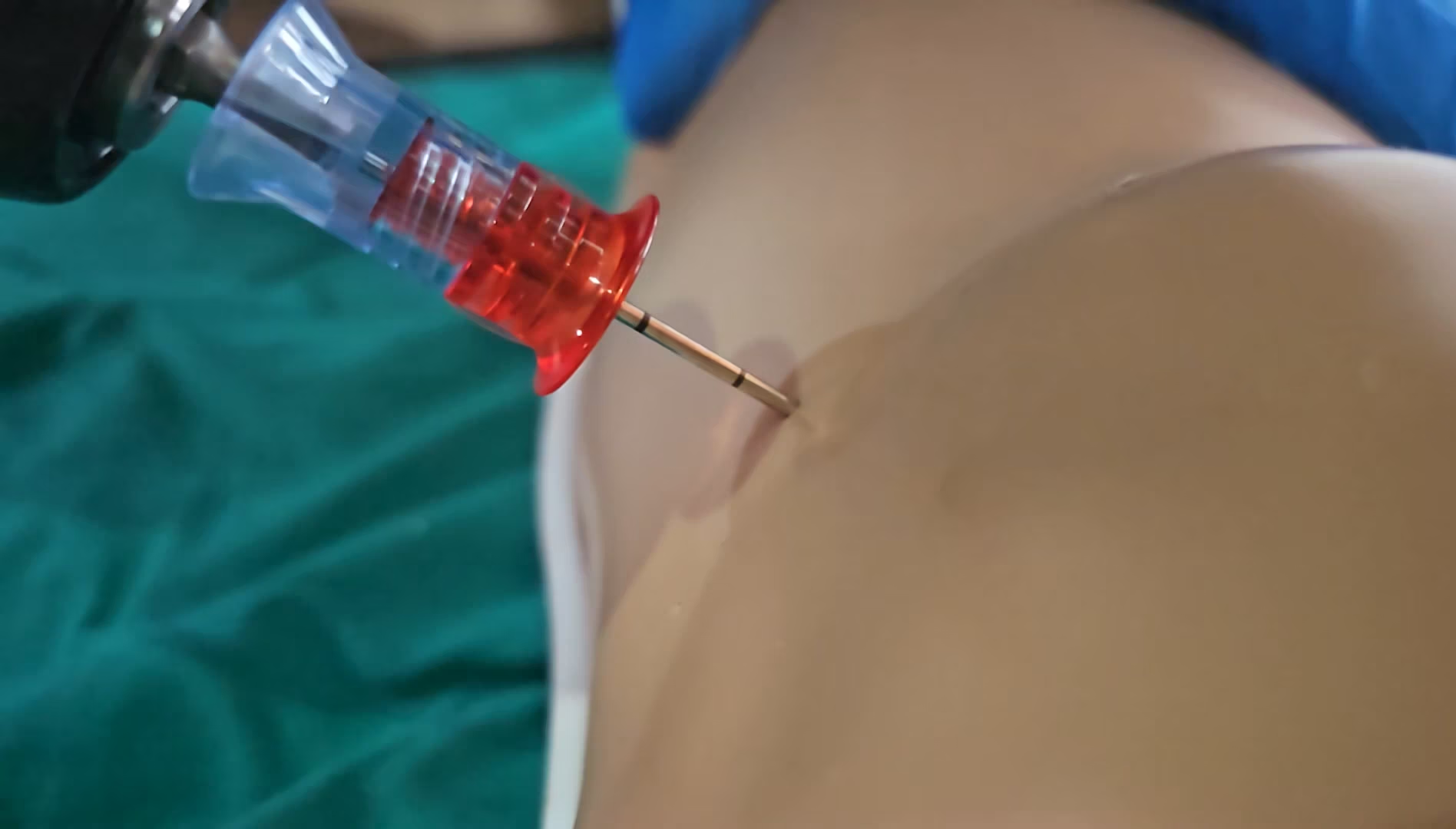

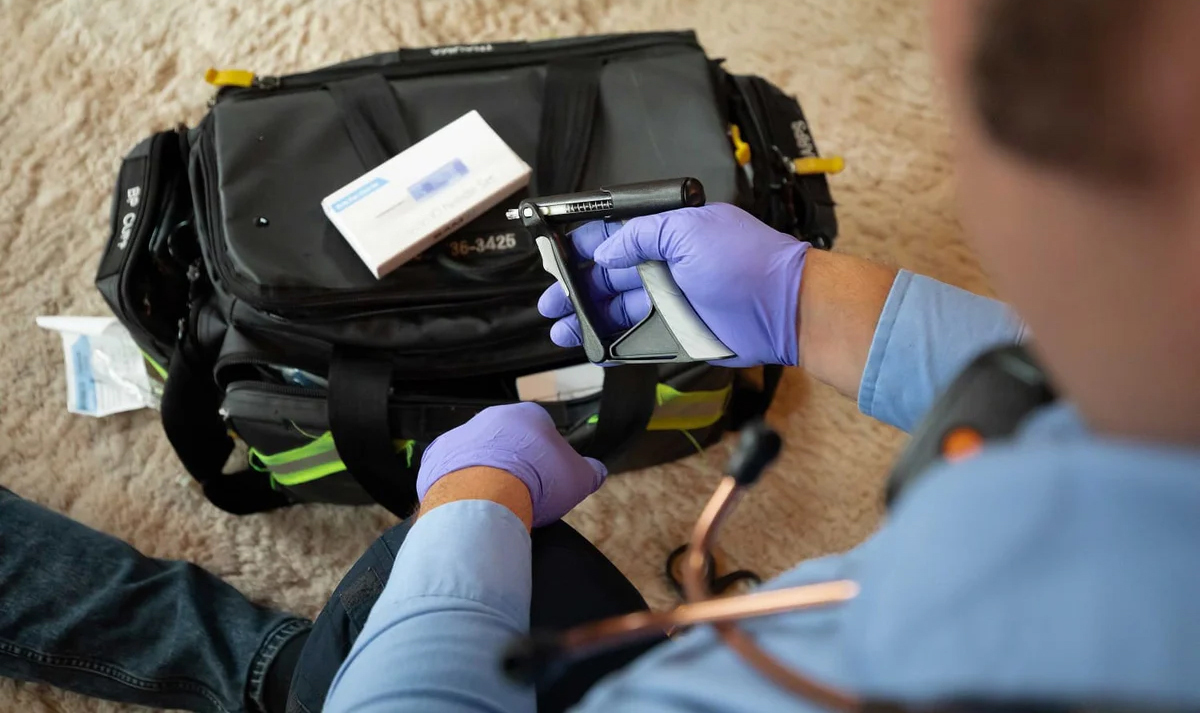

Powered IO devices, often called IO guns or IO drills, incorporate a battery-powered driver that automates the penetration of the bone cortex. The operator positions the device and activates the trigger.
The sophistication of a modern intraosseous drill lies not merely in replacing manual force, but in its control over two critical parameters: speed and depth. High-speed rotation (e.g., thousands of RPM) cuts cleanly through cortical bone with minimal required axial force, reducing the risk of deflection. More importantly, integrated depth-control mechanisms or auto-retracting stylets prevent over-penetration. This engineering directly addresses a key technical failure point: advancing the needle too far beyond the cortex, which can plug the needle tip with a core of bone or exit the posterior cortex, rendering the line useless.
This technological leap translates to broader clinical utility. The consistent performance of a powered IO drill makes sites with denser bone—like the distal tibia or the sternum (with specific devices)—more reliably accessible. In the moving ambulance or during CPR on a unstable stretcher, the device's stability and quick firing enhance success. The clinical consequence is a more predictable and often faster time-to-flow, even in challenging conditions like obesity or edematous tissue overlying the insertion site. It democratizes a high-success-rate IO access skill across a wider range of healthcare providers, from paramedics to emergency nurses and physicians.
When evaluating manual io needles versus powered IO devices, the analysis must extend beyond "which is faster" to encompass integration into real-world clinical workflows.
Dimension | Manual IO Needle | Powered IO Drill | Clinical & Operational Implication |
Insertion Speed | Variable (30-120+ sec). Highly dependent on operator strength, patient bone density, and technique. | Typically faster & more consistent (often 10-30 sec). Less dependent on operator physical strength. | In true "seconds matter" scenarios (e.g., refractory VFib), consistent speed is a key advantage for powered systems. |
First-Pass Success Rate | More variable. Higher skill ceiling. Prone to skidding or deflection if technique is imperfect. | Generally higher and more reproducible. The drill mechanism reduces deflection. | Higher first-pass success means fewer attempts, less patient trauma, and less time wasted—a major factor in difficult IV access crises. |
Learning Curve & Skill Retention | Steeper. Requires practice to develop the "feel" for correct penetration. Skills may degrade without regular use. | Shallower. The procedure is more standardized. Easier to teach and for infrequent operators to perform reliably. | Impacts training costs and the likelihood of successful deployment by a broader range of staff during a rare, high-stakes event. |
Tactile Feedback | High. The "pop" of entering the medullary space is distinct. | Different. Vibration and sound replace the manual "pop." Some operators argue this is less definitive, though driver stoppage indicates entry. | A matter of operator preference and training. Transitioning users require acclimatization. |
Applicable Patient Population & Sites | Best for pediatric patients (softer bone) and standard adult tibial sites. Can be challenging in dense bone or alternative sites like the humeral head. | Broader application. Effectively penetrates dense adult bone. Often the preferred method for proximal humeral access, which is increasingly favored for its superior flow rates and central circulation equivalence. | Expands the utility of IO access. The ability to reliably use the humeral head site, as supported by research and guidelines, is a significant clinical advantage for rapid medication delivery. |
Perceived & Actual Complications | Risk of posterior cortex penetration, bending, or breaking if excessive force is misapplied. | Risk of "pinning" to the bone if not held correctly, or thermal injury from prolonged drilling. Depth control is crucial. | Complication profiles differ but are low overall with proper technique. Understanding these nuances is key to prevention. |
Cost Consideration | Lower per-unit device cost. | Higher per-unit device cost, includes driver capital expense. | A pure per-unit cost analysis is misleading. Total cost of ownership must factor in success rates, time savings, training efficiency, and expanded clinical utility. |
A crucial insight from this comparison is that the "best" device is context-dependent. For a wilderness medic or a military corpsman carrying minimal gear, the simplicity and reliability of a manual io needle may be paramount. In a busy urban ER or EMS system managing a high volume of critically ill patients with varied physiologies, the consistent performance and ease of use of a powered IO drill may offer significant systemic advantages, reducing cognitive load and procedural delays during complex resuscitations. For a deeper understanding of when IO is the essential choice over persistent IV attempts, this analysis on IO vs IV access provides further context.
The debate between manual and powered IO transcends a simple equipment preference. It reflects a deeper shift in resuscitation philosophy. Are we optimizing for the exceptional operator who has mastered the tactile art of the manual insertion? Or are we designing systems to guarantee high-level performance for the average operator under the worst possible conditions?
Modern crisis resource management emphasizes reliability, standardization, and the reduction of failure points. A powered IO device, with its built-in engineering controls for speed and depth, functions as a cognitive aid. It offloads the physical demand and part of the judgment burden from the clinician, allowing them to focus on the broader resuscitation picture—monitoring rhythms, directing the team, and assessing response to therapy. This is not about replacing skill, but about augmenting human capability with technology to achieve more consistent outcomes. Furthermore, the evolution of IO methods now includes the ability to monitor intraosseous pressure as a surrogate for intravascular volume status, a frontier where device design and clinical monitoring intersect.
The evidence and clinical experience point to a clear paradigm: Both manual and powered IO devices are vital tools, but they serve optimally in different niches of the emergency access ecosystem. The manual needle remains a quintessential, low-tech backup of profound value. However, for the majority of pre-hospital and in-hospital emergency scenarios where difficult IV access is encountered—especially in time-sensitive cardiac arrest, trauma, and septic shock—the powered IO drill offers superior consistency, reduced operator dependency, and faster, more reliable flow rates.
This reliability directly addresses the core mandate of emergency care: to deliver lifesaving interventions without delay. The choice of device impacts protocol design, training focus, and ultimately, patient outcomes.
CN MEDITECH's intraosseous infusion system is engineered with these critical clinical challenges in mind. Our powered IO device integrates the precision drilling mechanics necessary for high first-pass success across diverse patient anatomies, alongside robust safety features to prevent over-insertion. We understand that in the moment when seconds matter, the device must perform as an extension of the clinical team's intent. For a detailed discussion on minimizing risks, review our guide to the most common IO complications and their prevention.
To explore how a specific IO access strategy can enhance your emergency response protocols and to evaluate which IO methods align with your clinical needs, we invite you to connect with our clinical specialists for a detailed discussion.
