Condensation in Anesthesia Circuits: Small Problem, Big Risk

Why Condensation Issues Should Not Be Overlooked

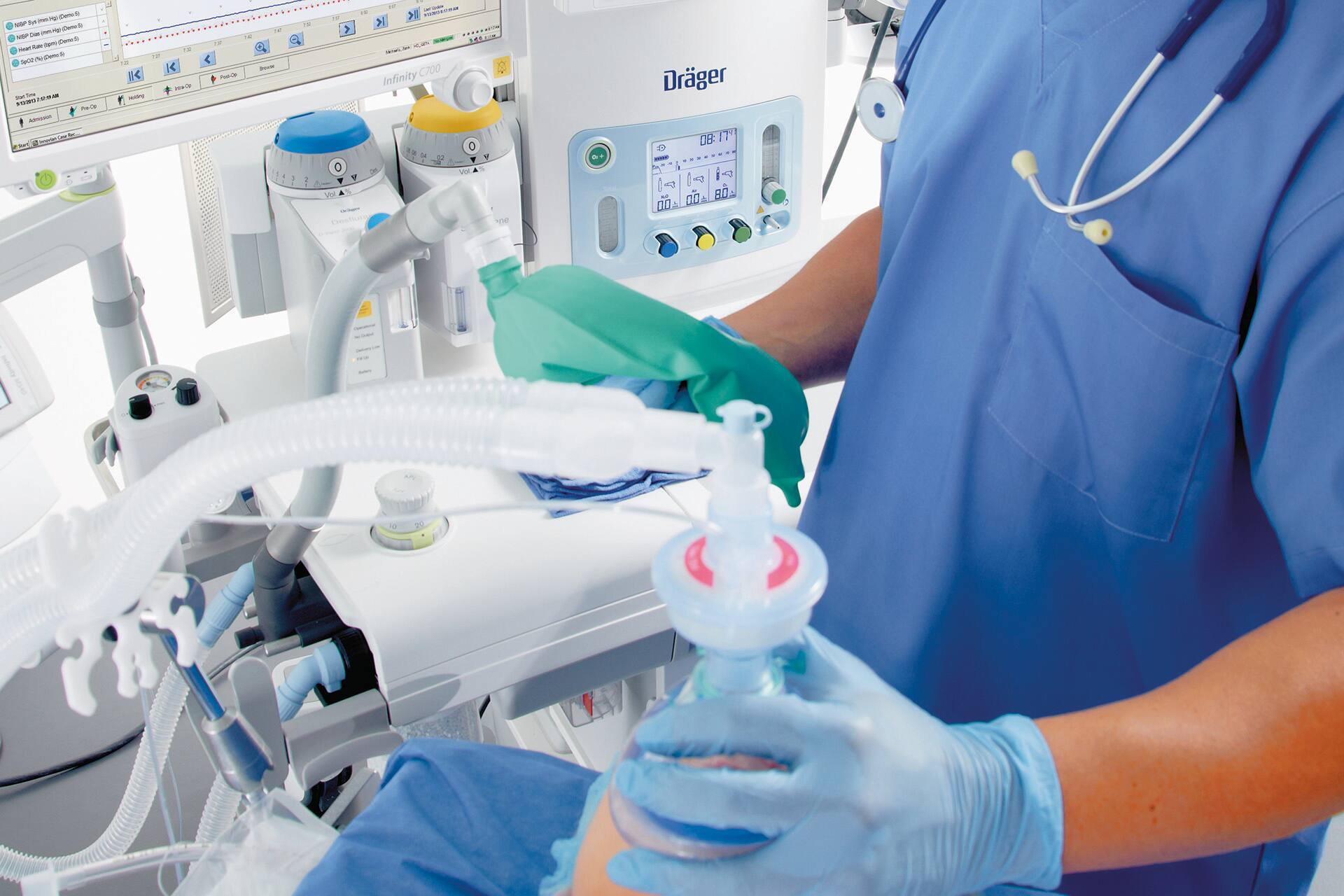

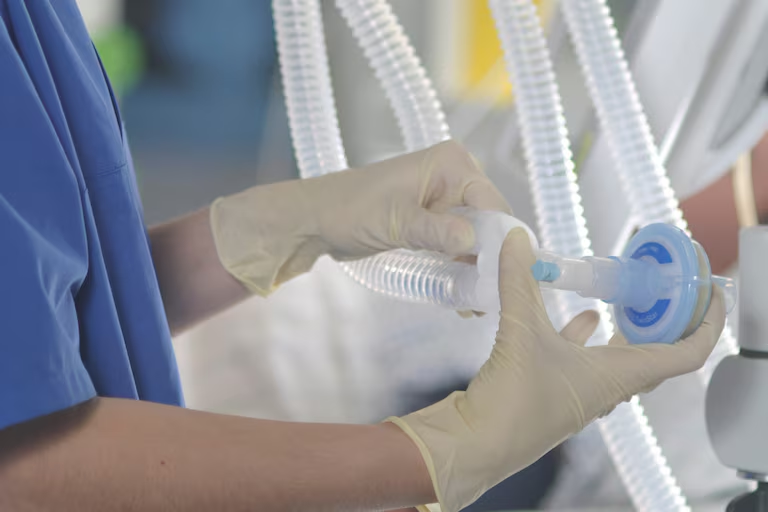

The Role of the Breathing Circuit

The Breathing Circuit of the Anesthesia Machine is the critical pathway that connects the patient to the device. It delivers medical gases safely to the patient and expels exhaled gases. This pathway must remain clear and unobstructed at all times.

What Is Condensation

When a patient exhales warm, humid gas into a breathing hose that is cooler than the body temperature, moisture condenses on the inner wall of the tubing and forms visible droplets. This phenomenon—condensation—naturally occurs in all anesthesia systems that utilize humidified gas.

Not Just “Water Droplets”

Distributors, hospitals, and clinical staff often observe water accumulation inside the breathing tube. While it may appear to be a minor technical nuisance, ignoring condensation can result in significant hidden risks:

-- Narrowing of the circuit: Accumulated water reduces the effective internal diameter of the tubing and obstructs gas flow.

-- Hidden buildup: Moisture collecting in valves, sensors, or connectors is difficult to detect yet may impair function.

-- Microbial risk: Moist, warm, closed environments promote bacterial growth.

-- Equipment abnormalities: Condensation can trigger false alarms or distort monitoring data.

Condensation is common and predictable, but underestimating its impact endangers both patient safety and the operational stability of the anesthesia system. Addressing it is not optional—it is essential for safe clinical practice.

How Condensation Forms in the Breathing Circuit

Temperature Difference

Exhaled gas from the patient is warm and saturated with moisture. When this warm air enters breathing tubes that are cooler, the moisture in the gas condenses upon contact with the cold tube walls and forms droplets.

(Note: Temperature difference is the primary driving factor.)

High-Humidity Environment

During general anesthesia, inspired gas is often artificially humidified using a humidifier. Meanwhile, exhaled gas from the lungs naturally carries moisture. The combination keeps the humidity within the circuit consistently high, making condensation more likely.

(Note: High humidity is the default condition during anesthesia.)

External Temperature Gradient

Operating rooms are typically maintained at relatively low temperatures (e.g., air-conditioned environments). The anesthesia machine may generate heat internally, yet the breathing circuit is fully exposed to the cooler room air. This internal–external temperature gradient accelerates the condensation of vapor inside the tubing.

(Note: Both environment and equipment contribute to the temperature differential.)

Device Settings

HME filters (Heat and Moisture Exchangers): While preserving airway humidity, HME filters can also become points where condensation forms.

Humidifier levels: If the humidifier output is set too high, exceeding what the circuit can accommodate, the volume of condensed water increases significantly.

(Note: These are human-controlled, adjustable factors.)

Condensation Is Not a Malfunction—It Is a Physical Process

The combined influence of temperature gradients, high humidity, environmental conditions, and device parameters makes condensation impossible to eliminate completely. However, targeted measures can greatly reduce its extent and associated risks.

Potential Risks of Excessive Condensation

Patient Safety Risks

When water accumulation inside the Breathing Circuit continues to increase:

· Silent rise in airway resistance: Condensed water occupies space within the tubing, forcing the patient to generate more effort to maintain ventilation. This poses a particular threat to individuals with compromised cardiopulmonary function.

· Increasing risk of obstruction: Thickened or pooled condensate may form a “water plug,” and in severe cases, completely block airflow, leading to acute hypoxic emergencies.

· Risk of liquid aspiration: Pressure fluctuations during ventilation may push droplets toward the patient's airway, causing coughing, irritation, or even lung injury.

Impact on Clinical Workflow

Condensation is not merely an equipment concern:

· Frequent false alarms: Sensors exposed to accumulated moisture may trigger false pressure alarms, requiring the surgical team to pause and verify data, disrupting procedural flow.

· Additional workload: Staff must repeatedly drain water and replace consumables. On average, this increases operational time by 7–12 minutes per procedure.

· Contamination vector: Microorganisms thriving in stagnant water can spread when the circuit or machine is moved, potentially contaminating surrounding clinical areas.

Hidden Equipment Hazards

The most dangerous problems are often invisible:

· Sensor malfunction: When a thin water film coats key monitoring components, flow readings may deviate by as much as ±15%, often without any initial warning.

· Accelerated wear: Precision components such as breathing valves may become sticky or degraded after prolonged moisture exposure, shortening their service life by 30–40%.

· Corrosive effects: Micro-cracks may develop on the inner surface of plastic tubing, while metal connectors may suffer pitting corrosion, doubling the frequency of required maintenance.

High-Risk Situations Where Condensation Is More Likely

Lengthy Surgical Procedures

When a single surgical procedure lasts more than 3 hours, the patient’s continuously exhaled warm and humid gas keeps circulating within the Breathing Circuit. For every additional hour, the rate of water accumulation inside the circuit increases by approximately 40% (based on clinical observation averages). Moisture gradually collects in the curved sections of the tubing, forming “reservoirs” that obstruct airflow while simultaneously creating ideal conditions for microbial proliferation.

High Fresh Gas Flow

When fresh gas flow exceeds 5 L/min:

· A larger volume of water vapor is introduced per unit time.

· Rapid airflow makes it difficult for the tubing temperature to stabilize.

This scenario is comparable to continuously breathing onto a glass surface—condensation increases rapidly even if room temperature remains constant.

Low-Temperature Environments

In operating rooms maintained at 18–20°C (common in orthopedic or neurosurgical settings):

· The temperature difference between metal connectors, plastic tubing, and warm gases widens by 3–5°C.

· Condensation efficiency doubles as warm vapor meets cold surfaces.

· Humidifiers may be forced to operate at higher output, creating a feedback loop of increased condensation.

Incorrect Humidification Settings

Three common setup errors include:

· Humidifier output exceeding patient needs (e.g., using adult settings for pediatric patients).

· Failure to adjust humidity levels dynamically throughout the surgical process (e.g., maintaining the same settings after abdominal cavity exposure).

· Using both an HME filter and an active humidifier simultaneously.

Combined, these errors cause moisture content to exceed acceptable levels by up to 22% per cubic meter of gas—leading to inevitable condensation.

Overextended Consumable Use

Frequently seen in high-volume institutions:

· Reusing a single Breathing Circuit for over 48 hours.

· Hydrophobic coatings on the inner wall gradually wear away.

· Water adhesion increases by 120%, accelerating moisture pooling.

How to Detect Condensation Early

Early identification of accumulating condensation is the first line of defense. Implementing the following four monitoring layers helps establish a robust safety framework:

Visual Inspection

During pre-operative preparation, patient repositioning, and routine hourly checks, clinical staff should perform a systematic visual scan along the entire Breathing Circuit. Key observations include fogging on the inner wall, droplets adhering to bends in the tubing, and visible layers of water at the lowest points of the lumen. Focusing inspection on critical sites—such as the Y-connector of the Anesthesia Machine and the circuit segment 30 cm above the water trap—can increase the positive detection rate by up to 90%. Transparent sections of the tubing should remain unobstructed to allow adequate light penetration for clear visualization.

Pressure Waveform Monitoring

Real-time pressure curves on the Anesthesia Machine reveal subtle clues:

· Unexplained saw-tooth oscillations unrelated to patient breathing

· Gradual rise in peak inspiratory pressure (increase >4 cmH₂O within 10 minutes)

· Widening of the plateau-to-peak pressure difference

These waveform deviations appear earlier than alarms and may indicate impending partial obstruction. Capturing screenshots every 15 minutes enables trend comparison.

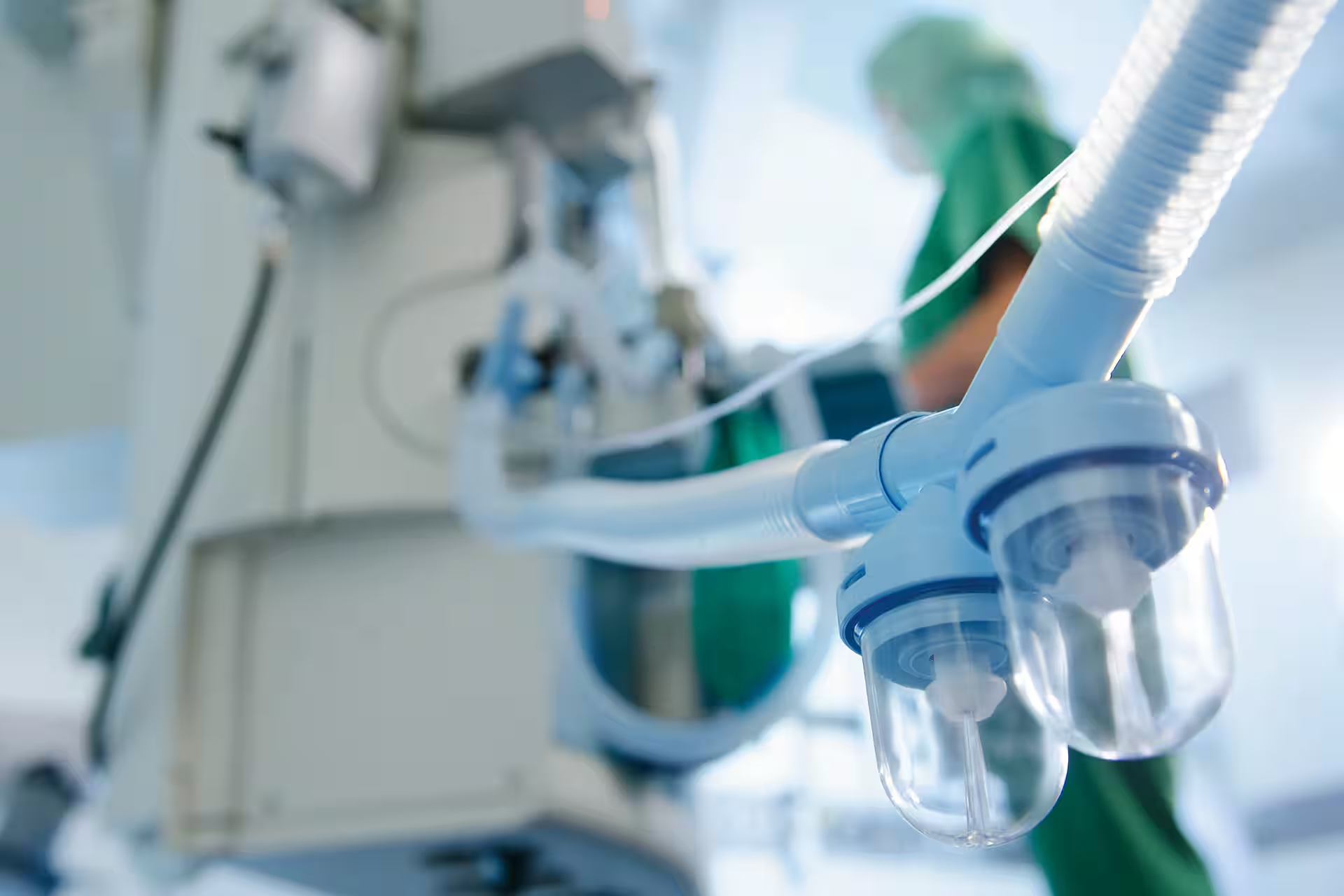

Regular Water Trap Checks

The water trap, usually located at the lowest point of the circuit, should follow a “three-step protocol”:

· Before surgery, open and close the drain valve to confirm proper sealing.

· During surgery, tilt the trap 45° every 30 minutes to check the water level.

· Drain immediately if the liquid reaches one-third of the cup capacity.

Keep the trap vertical during drainage to prevent backflow contamination. Documenting drainage frequency provides insight into systemic humidity levels.

Use of Transparent Tubing

Prefer using transparent tubing with measurement markings:

· Built-in longitudinal water-level scale (5 ml increments)

· Prism-style connectors for magnified viewing

· Hydrophobic coating at critical segments to reduce droplet adhesion

These design features help identify micro-condensation (<0.5 ml) as silver streaks—detectable even before electronic alarms activate.

Practical Strategies to Reduce Condensation

Circuit Selection and Design Features

Prioritize Breathing Circuits with hydrophobic-coated, anti-condensation tubing. Micron-level surface textures disrupt water droplet cohesion, significantly slowing accumulation.

For long-duration surgeries (>3 hours), dual-limb circuits—where inspiratory and expiratory limbs are separated—reduce the risk of moisture pooling by directing condensate toward low-lying collection points.

Circuits integrated with heating wires maintain tubing temperature above the dew point (typically 34–36°C), minimizing vapor-to-liquid transition. However, it is essential to ensure heating elements do not come into direct contact with the patient.

Fine-Tuned Equipment Control

Flow regulation: Apply a low-flow principle (e.g., 1–1.5 L/min during the maintenance phase), provided oxygenation remains adequate. This reduces both the total amount of water vapor entering the system and the force that propels condensate along the tubing.

Humidity management: When using an active humidifier, implement phased adjustments—lower humidity by approximately 20% after the abdominal cavity is opened or when external heat sources increase airway moisture. Avoid combining an HME filter with active humidification to prevent oversaturation.

Water trap maintenance: Establish a scheduled drainage protocol (recommended every hour or after any change in patient positioning). Keep the trap upright during drainage to prevent contaminated backflow.

Operating Room Environment

Maintain room temperature at 21 ± 1°C, which balances equipment heat output with condensation control (except in procedures requiring specialized low-temperature settings).

Provide layered warming for patients: a lower circulating water warming pad to preserve core temperature and an upper radiant blanket to reduce heat loss from environmental radiation. This prevents compensatory increases in respiratory humidity.

Position the Anesthesia Machine away from direct air-conditioning airflow. Clean the ventilation grilles regularly to ensure optimal cooling efficiency and prevent internal components from operating under excessive thermal stress, which can exacerbate condensation formation.

Managing Condensation to Protect Respiratory Safety

Although condensation in the Breathing Circuit is often seen as a “minor technical issue,” its potential to cause mechanical obstruction, microbial growth, and distorted monitoring data has been well documented. Selecting circuits with anti-condensation features—such as hydrophobic-coated tubing or temperature-controlled designs—combined with environment-appropriate humidity management strategies can reduce related complications by over 60%.

Call to Action

Anesthesia teams should adopt a three-tier prevention strategy:

· Proactive selection – Match circuit specifications to the expected duration and complexity of the procedure (e.g., dual-limb circuits or heated-wires for extended surgeries).

· Dynamic control – Apply a continuous low-flow principle during the procedure and adjust humidification levels in phases as the surgical environment changes.

· Systematic maintenance – Incorporate water trap drainage into routine safety checklists (e.g., every hour or after repositioning).

By integrating standardized workflows with innovative circuit technologies, clinicians can eliminate the hidden risks associated with moisture buildup and establish a reliable respiratory safety barrier that seamlessly connects device performance with clinical outcomes. Every detail executed today contributes directly to the foundation of anesthesia safety.

It is important to note that water accumulation is only one of many challenges affecting Breathing Circuit reliability—comprehensive airway safety requires deeper understanding of the multiple failure mechanisms involved. For further analysis, refer to discussions on why breathing circuit failures may occur during surgery.
