Views: 0 Author: Site Editor Publish Time: 2025-10-13 Origin: Site
In the core environment of operating rooms and anesthesia management, the anesthesia breathing circuit plays a vital role in sustaining life, ensuring the effective delivery and exchange of oxygen and anesthetic gases during surgery.
As a crucial component of this sophisticated system, the breathing bag—also referred to as the reservoir bag, rebreathing bag, or anesthesia bag—is far more than a simple accessory. Its design, material, and performance selection are matters of serious technical significance.
The proper selection of a breathing bag profoundly impacts several key aspects: it directly relates to the patient’s essential safety assurance, the operational reliability of the equipment, and the overall cost-effectiveness of long-term use.
Furthermore, the choice of material is closely associated with minimizing potential risks of cross-contamination and addressing patient-specific allergic sensitivities.

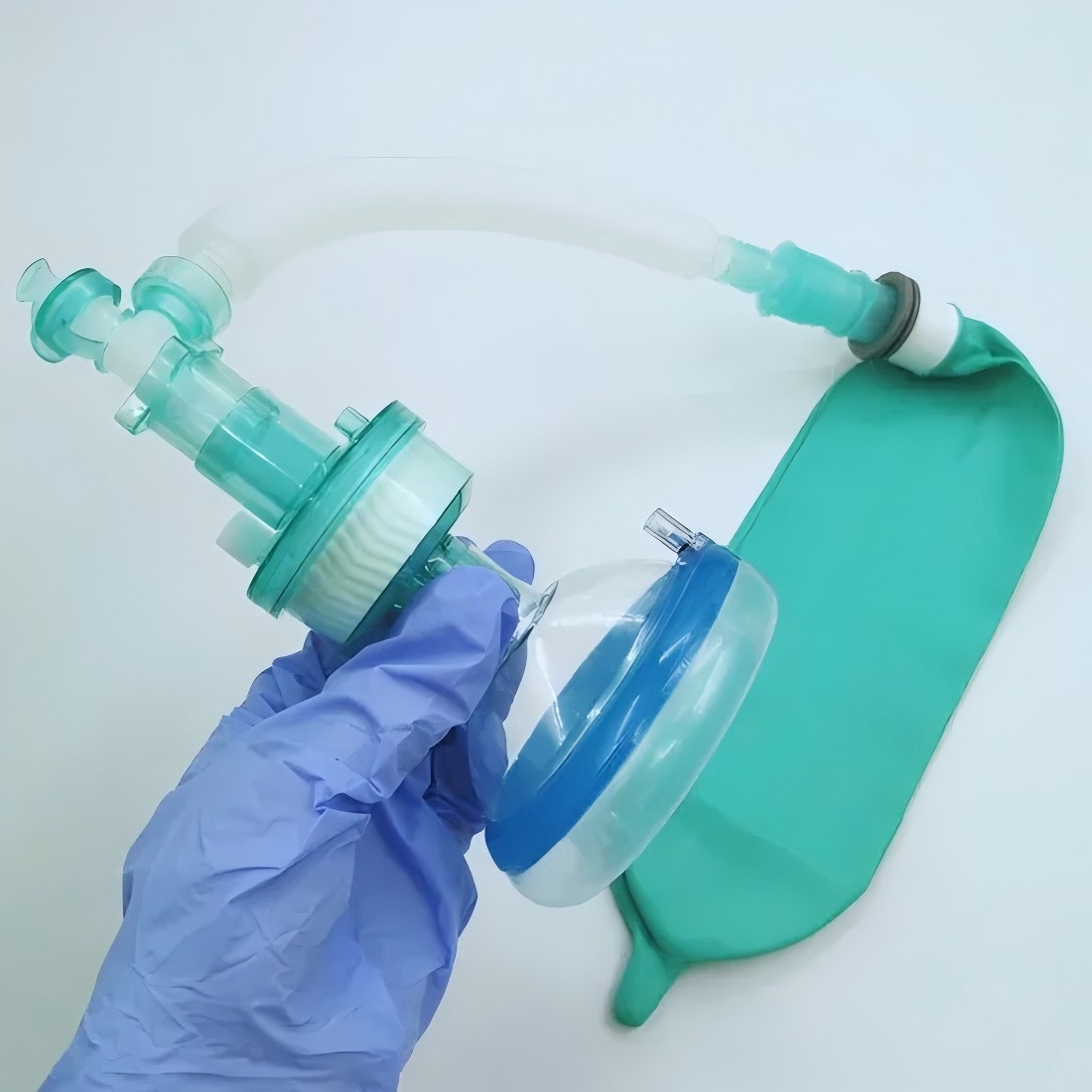

In a typical anesthesia breathing circuit—whether in a closed or semi-open configuration—the breathing bag serves as a precise coordination hub.
Positioned at the terminal of the circuit, its purpose extends far beyond simple gas storage.
When a patient’s inspiratory demand temporarily exceeds the flow rate of fresh gas supply, the breathing bag functions as a reservoir, instantly providing stored gas to fill the deficit.
This ensures a continuous and smooth breathing process, which is essential for maintaining adequate oxygenation.

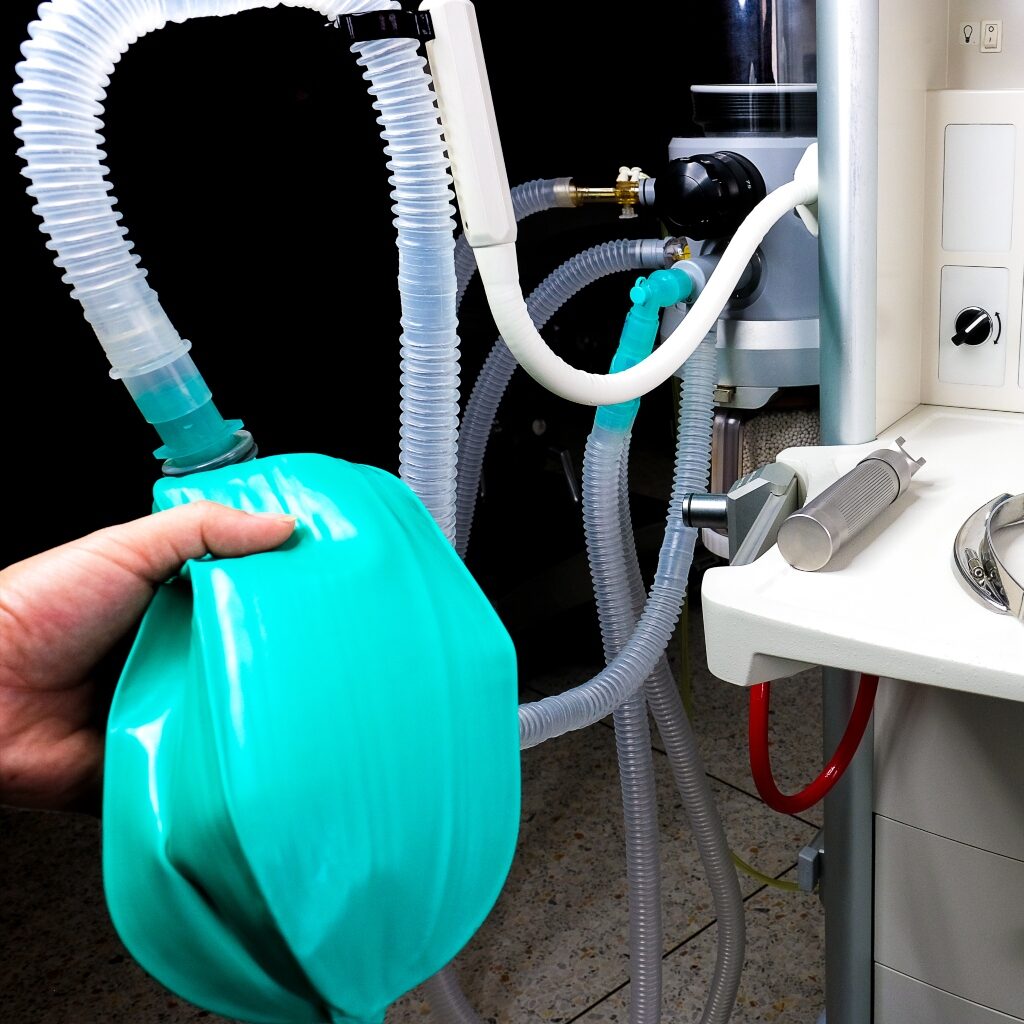

The breathing bag is also the core tool for manual ventilation.
Whenever the anesthetist needs to manually control lung ventilation—such as during induction, emergence, or when mechanical ventilation is temporarily interrupted—squeezing the bag delivers the desired tidal volume into the lungs.
This manual control capability is a fundamental backup to mechanical ventilation.
The rhythmic inflation and deflation of the breathing bag provide both tactile and visual feedback on the patient’s respiratory rate, depth, and timing—without the need for complex instruments.
This real-time feedback is crucial for clinical judgment and rapid intervention.
Anesthesia circuits are usually equipped with a safety pressure-limiting valve.
If circuit pressure rises abnormally due to malfunction or improper operation, the valve automatically opens to release excess pressure, effectively preventing barotrauma to the lungs.
The breathing bag also serves as an indispensable emergency backup.
In the event of a ventilator failure, alarm activation, or circuit disconnection, manual ventilation using the breathing bag remains the fastest and most reliable life-supporting method to stabilize the patient.
If the breathing bag accidentally detaches, the gas concentration in the circuit can drop immediately, increasing the risk of hypoxia or a sudden reduction in anesthetic depth.
The material’s elasticity (compliance) directly affects pressure transmission accuracy and lung protection during manual ventilation.
Clinicians may encounter a “tight bag” phenomenon—where excessive force is required to maintain ventilation—often signaling circuit obstruction or bronchospasm, requiring urgent evaluation rather than brute force compression.
Evidently, though structurally simple, the breathing bag is the silent guardian of safe anesthesia circuit operation.
Its material characteristics, manufacturing quality, and user experience are intimately linked to the anesthetist’s tactile feedback, the patient’s respiratory comfort, and most importantly, the assurance of life safety.

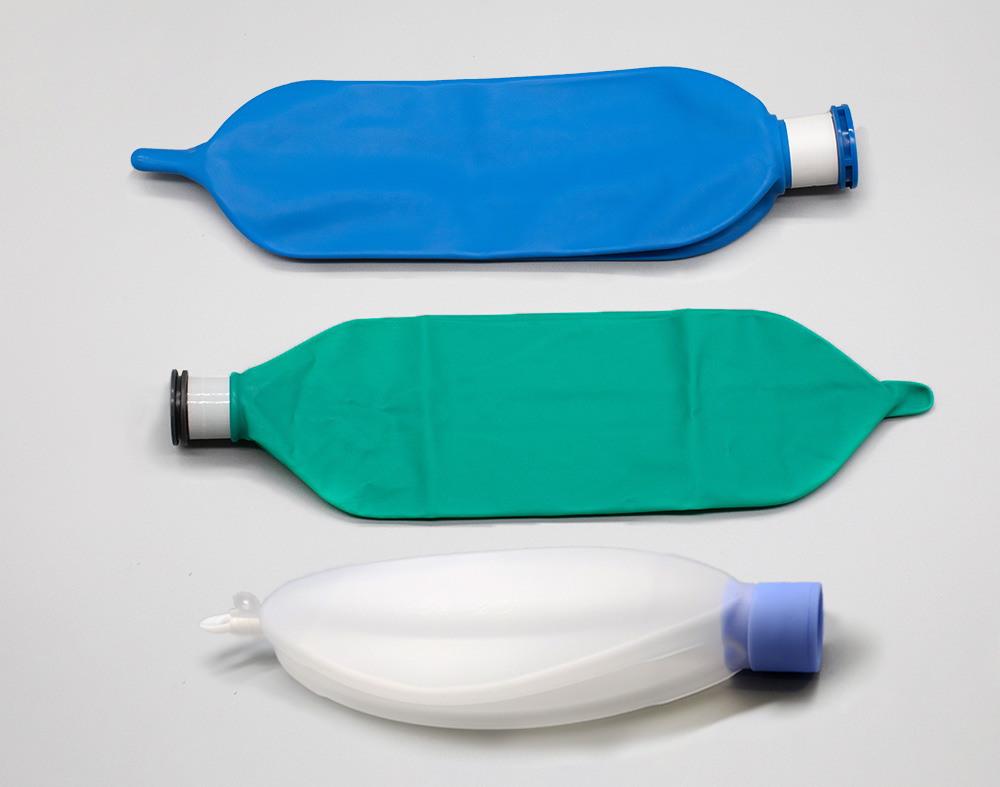

Type | Disposable Latex Breathing Bag | Disposable Non-Latex Breathing Bag | Reusable Silicone Breathing Bag |
Material / Characteristics | Made of natural latex (natural rubber) | Made of medical-grade PVC, thermoplastic elastomer (TPE), silicone-blended materials, or synthetic rubber (free of natural latex components) | Made of medical-grade silicone or high-end elastic synthetic materials |
Advantages | Low cost, good elasticity, superior tactile feedback, highly sensitive operation | · Low allergy risk; · Suitable for patients with latex sensitivity; · Single-use design avoids cross-contamination; · Easy inventory and management. | · Can withstand high-temperature sterilization / advanced cleaning for repeated use; · Low long-term cost; · Environmentally friendly; · Material is stable and less prone to aging. |
Limitations & Risks | · Risk of latex allergy; · Not reusable; · Potential micro-defects or leakage risks; · Environmental and waste disposal concerns. | · Typically more expensive than latex; · Elasticity and tactile feel may be slightly inferior to natural latex; · Material stability and durability may have limitations | · High initial cost; · Cleaning, validation, and sterilization processes must be strictly controlled; · Repeated use may lead to wear, aging, cracking, or micro-leakage. |
Applicable Scenarios | · Suitable for cost-sensitive environments, high-volume usage, and patients without latex allergy; · Ideal as a disposable ventilation solution. | Ideal for high-standard hospitals, patients with latex allergies, cross-department standardized procurement, or environments with high safety requirements. | · Suitable for medium and large hospitals, teaching hospitals, or centers with complete sterilization systems; · Ideal for institutions pursuing long-term cost-efficiency and environmental sustainability. |
The table above illustrates that each type of breathing bag serves distinct clinical and operational needs:
· Latex disposable bags emphasize tactile precision and affordability but come with allergy and environmental concerns.
· Non-latex disposable bags balance safety and convenience, particularly for sensitive patient populations.
· Reusable silicone bags focus on durability and cost-efficiency over the long term but require strict maintenance and quality control systems.
Ultimately, the optimal choice depends on a hospital’s procurement strategy, infection control policy, patient demographics, and sterilization capacity.
· In adult surgeries, 2L and 3L volumes are the most common sizes. Capacity determines how efficiently the circuit can be pre-filled and how well it buffers sudden fluctuations in tidal volume.
· For pediatric, neonatal, or low-weight patients, smaller volumes such as 0.5L or 1L breathing bags are indispensable. Failure to match the proper capacity can lead to difficulties in ventilation control or decreased circuit efficiency.
When choosing, it is necessary to consider the system’s inherent gas filling requirements, the patient’s possible maximum tidal volume, and reserve safety margins for emergencies.
An oversized bag may be cumbersome but safe; an undersized one may be insufficient during sudden ventilatory demand.
· Universal Standards: Ensure the selected breathing bag complies with the ISO 22mm conical connector international standard. This guarantees airtight and quick connections between circuit components.
· System Adaptability: Confirm compatibility with the physical gas pathway design of your institution’s main anesthesia machines to prevent poor connection or air leakage. Bags with secure hanging rings or locking clips reduce the risk of accidental detachment due to pulling, enhancing operational stability.
· The material compliance of a breathing bag is its essential attribute. Good compliance allows smooth and responsive manual squeezing, enhancing pressure perception and minimizing the risk of lung barotrauma. However, softer does not always mean better—overly soft materials may deform or collapse under high positive pressure, reducing ventilation effectiveness. Conversely, overly rigid materials sacrifice tactile sensitivity and operator feedback.
· Regardless of the chosen material, every bag must pass stringent pressure threshold validation, tear resistance testing, and low leakage certification. These are vital safety parameters directly tied to patient survival.
· Whether for domestic registration or international distribution, ensure that the product carries mandatory regional medical device certifications.
· Certification under ISO 13485 quality management systems indicates consistent manufacturing reliability.
· Materials must demonstrate biocompatibility—free of cytotoxicity, allergenic, or irritant reactions, and must not release harmful substances under expected use conditions.
· Manufacturers should implement strict batch-level inspection and validation, ensuring consistent performance and eliminating risks caused by inter-batch variability.
· If selecting reusable silicone bags, the institution’s Central Sterile Supply Department (CSSD) must possess the appropriate cleaning and sterilization capabilities (e.g., verified compatibility with autoclave sterilization parameters). Products should clearly state the maximum validated sterilization cycle count, and a comprehensive tracking and inspection program must be established—including visual wear inspection and leak testing after each cycle—to ensure functional integrity.
· Disposable products, in contrast, offer the advantage of “ready-to-use” convenience and eliminate sterilization costs. However, they require evaluation of storage stability, packaging integrity before use, and compliant waste disposal, particularly for latex- or PVC-based materials that pose environmental management challenges.
· The bag’s transparency should allow internal gas visibility; clear volume markings assist in quick visual estimation of inflation; and ergonomic design—such as shape and grip zones—reduces operator fatigue during prolonged manual ventilation.
· Single Expense vs. Lifecycle Cost: Comparing only the initial purchase price can be misleading. Disposable products incur cumulative costs across yearly consumption and waste disposal. Reusable silicone bags require calculation of the purchase price, plus the costs of cleaning, sterilization, and inspection—divided by their total reuses—to obtain the true cost per use.
· Cost Turning Point: When the annual usage of breathing bags surpasses a specific threshold (dependent on factors such as reusable bag price, sterilization cost, average cycle count, and disposable unit cost + disposal fee), the economic advantage of reusables becomes evident. Large hospitals or high-turnover operating rooms typically cross this threshold earlier. A comprehensive cost model must include procurement, storage, transport, disinfection/disposal, and manpower management expenses to reflect the true total cost of ownership (TCO).
· Risk Premium: Losses from safety incidents caused by poor selection—such as allergic reactions, leaks, or functional failures—constitute a significant yet often overlooked component of the total cost.
· As highlighted in the Global Acute and Critical Monitoring Report, even a seemingly minor breathing bag disconnection can cause an abrupt shift in inspired gas concentration (leading to hypoxia or anesthetic depth fluctuation), posing a direct threat to patient safety. Strict adherence to daily circuit connection checks—especially preoperative “three-point safety inspections”—is essential.
· Physical Limits: Overpressure from excessive manual squeezing or pressure valve failure can cause the breathing bag to rupture or transmit dangerous pressure to the patient’s lungs. A “tight bag” often indicates elevated airway resistance (due to mucus blockage, bronchospasm, or device malfunction) and should prompt immediate investigation, not forceful compression. The manufacturer’s rated maximum pressure limit must always be treated as a safety boundary.
· Hidden Risks of Reusables: Repeated sterilization and usage may cause microstructural degradation—brittleness, microcracks, loose fittings, or leakage. A planned replacement protocol based on sterilization cycles, usage duration, visual inspection, and strength testing is far superior to passive replacement after failure.
· Redundant Protection: Whenever possible, choose products equipped with overpressure safety valves as mechanical safeguards. In well-managed institutions, routine pressure-holding and leak testing of reusable systems (including connectors) should be incorporated into standard quality control procedures.
The anesthesia breathing bag, the flexible hub of the breathing circuit, silently safeguards the safety and smoothness of every breath.
A thorough understanding of its critical functions, material characteristics, and suitability for various clinical scenarios forms the foundation for healthcare institutions to optimize configuration and enhance patient safety.
Whether it is a cost-effective disposable option, a non-latex design that upholds allergy-free standards, or a reusable silicone breathing bag that emphasizes long-term value and environmental sustainability, the core principle in selection remains the same—to ensure technology precisely serves the needs of both patients and clinicians in each specific setting.
As Your Dedicated Breathing Circuit Partner, We Provide:
- Reliable Foundation:
All products strictly comply with international standards (CE / FDA / ISO 13485) and undergo rigorous leakage, pressure limit, and biocompatibility testing to ensure uncompromised safety assurance.
- Precise Control:
Optimized material compliance and ergonomic design provide superior tactile feedback and structural stability, helping clinicians finely adjust ventilation with confidence and precision.
- Flexible Response:
A comprehensive range of volumes (0.5L / 1L / 2L / 3L) covers both adult and pediatric use.
Each model seamlessly fits the ISO 22mm connector standard, meeting the diverse needs of clinical environments and procurement systems.
- Valued Partnership:
Whether you seek an economical disposable solution or a premium reusable system, our mission is to deliver the optimal balance among performance, regulatory safety, and total cost of ownership (TCO)—backed by efficient local technical support and responsive service.
For a Custom Breathing Bag Solution Tailored to Your Institution
To learn more, request product catalogs or physical samples, or obtain a targeted quotation, please contact us:
*Website: https://www.cn-meditech.com/
*Email: meditech@cn-meditech.com / elvanenglish1984@gmail.com
*Phone: 0086-132-7668-7134
