CNME070601
CNMEDITECH

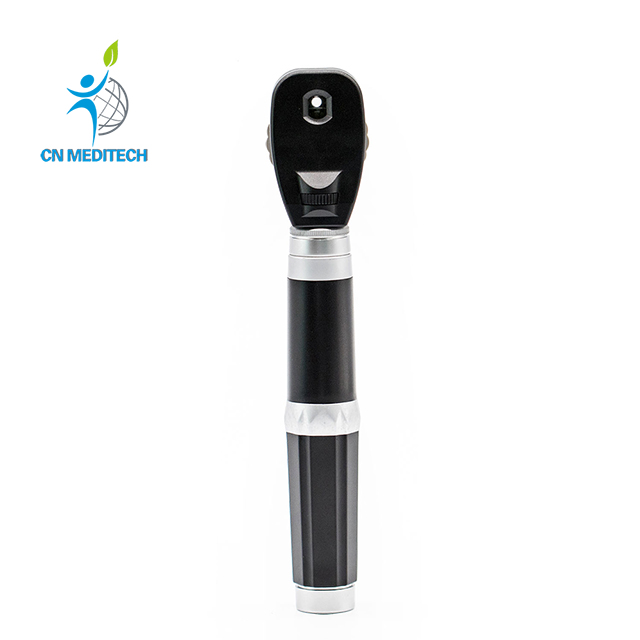

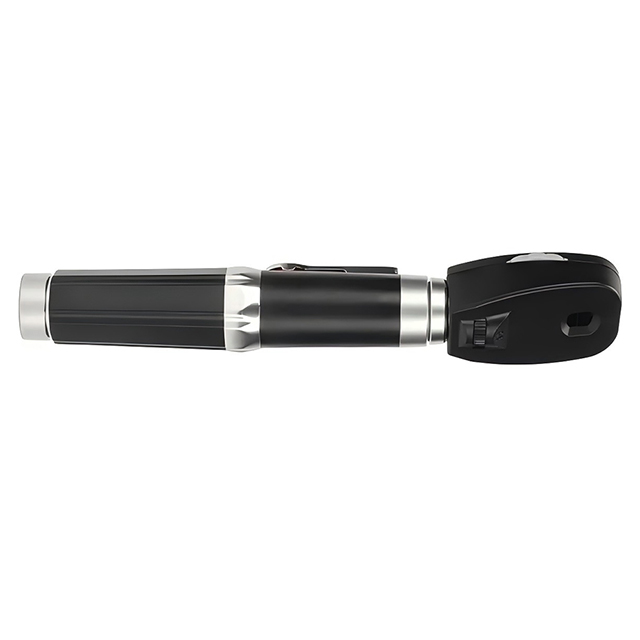

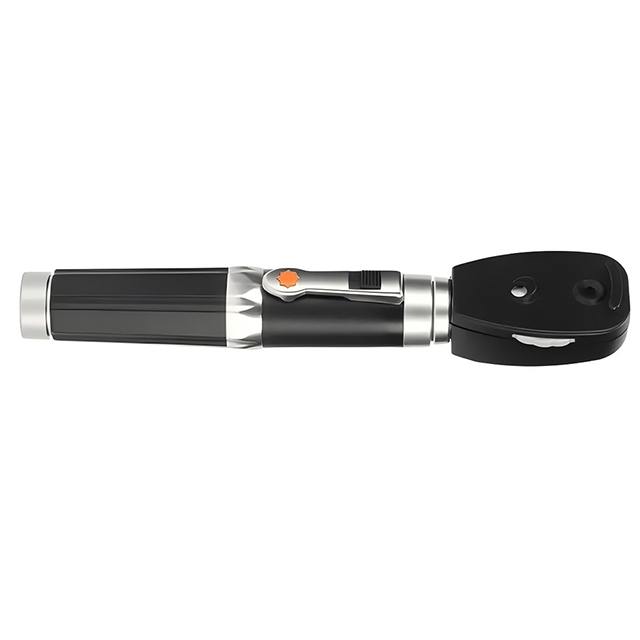

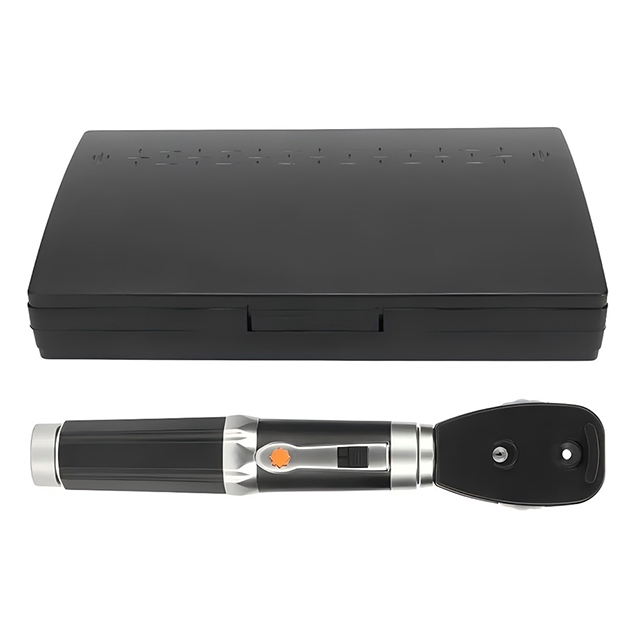

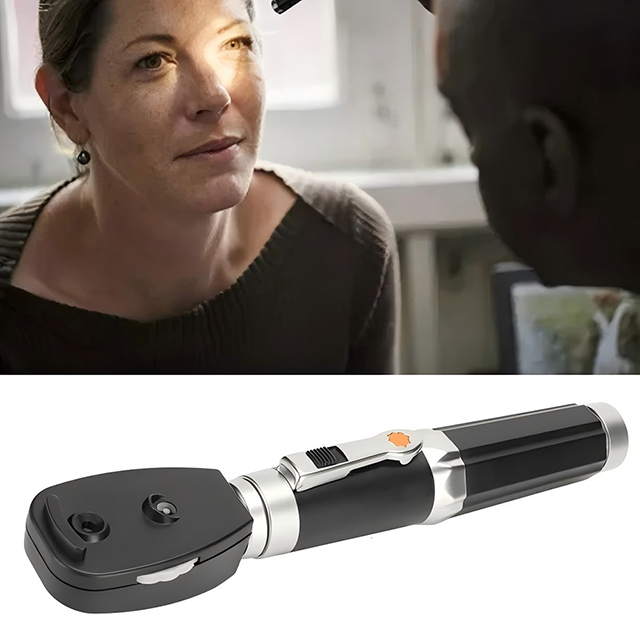

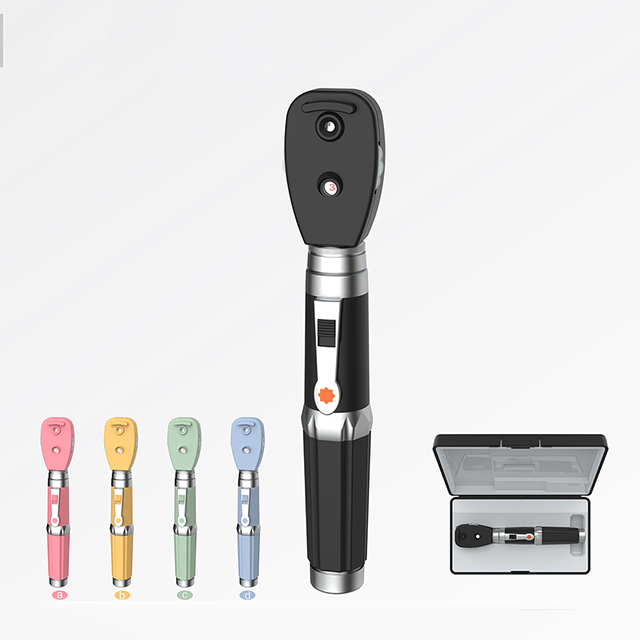

Portable Direct Illumination Ophthalmoscope with LED Light
Ophthalmoscopy, also called funduscopy, is a test that allows a health professional to see inside the fundus of the eye and other structures using an ophthalmoscope (or funduscope). It is done as part of an eye examination and may be done as part of a routine physical examination. It is crucial in determining the health of the retina, optic disc, and vitreous humor.
Direct ophthalmoscopy uses the direct ophthalmoscope, an instrument the size of a small flashlight with several lenses that can magnify up to about 15 times.This type of ophthalmoscope is most commonly used during a routine physical examination. The pan-ophthalmoscope has a larger primary lens with a variable focusing, allowing for a wider field-of-view.
Features:
1.Professional Lens System
2.New LED Technology / XHL Xenon Halogen Technology

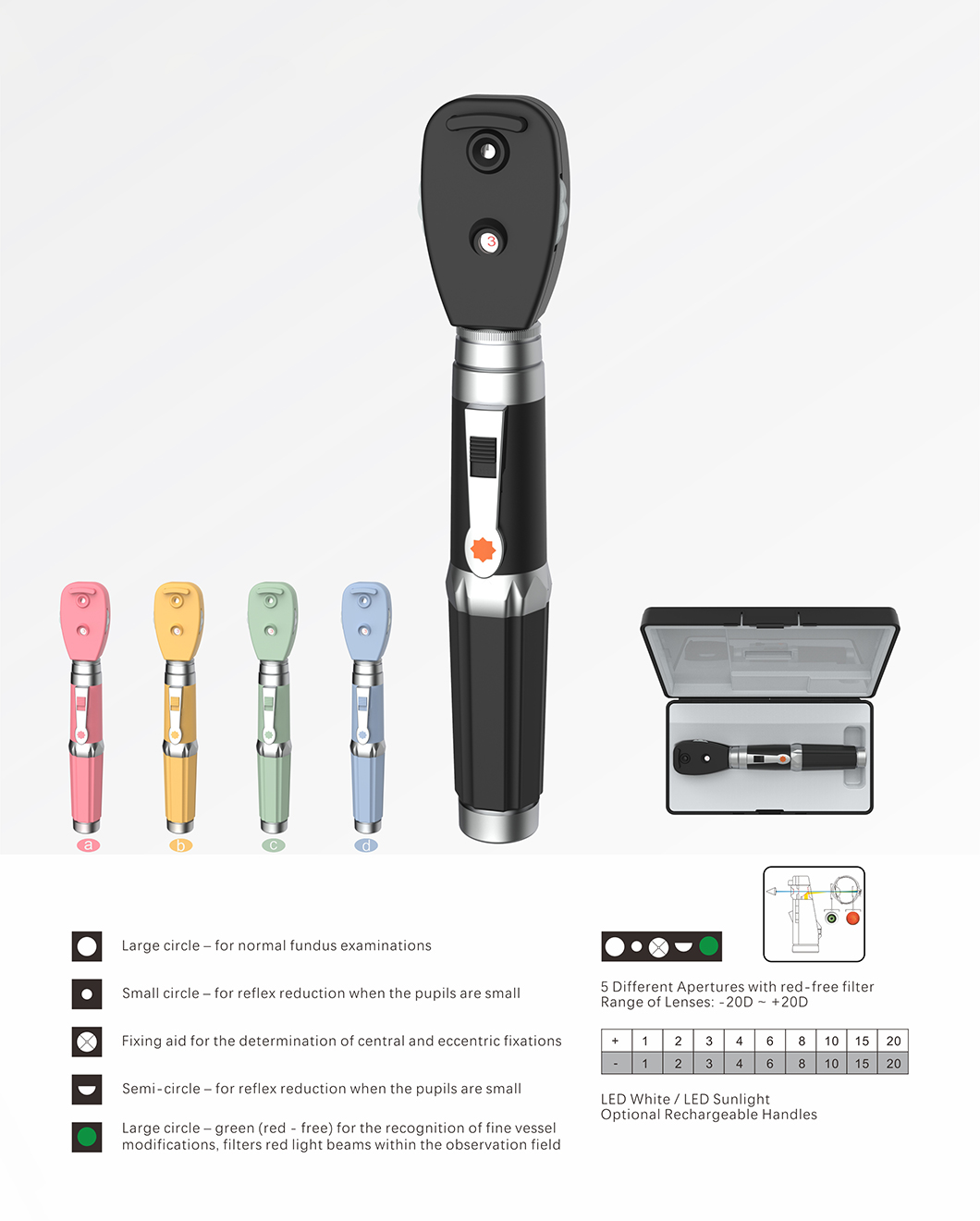

3.5 Different Apertures
4.Range of lenses: -20D~+20D

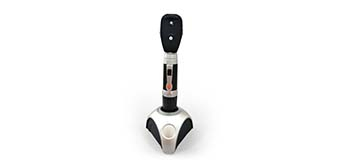

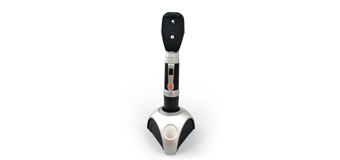

5.Optional Rechargeable Handle
6.Product Warranty: ONE YEAR Warranty
Specifications:
Model | CNME070601 Ophthalmoscope |
Illumination | Direct Illumination |
Luminance | 18.5 Lumen |
Bulb | LED:3V,1.5A,Ø=4.8mm XHL Xenon Halogen:2.5V, 0.7A,Ø=4.8mm |
Battery | Ni-MH Rechargeable Battery (1600mAh, 2.4V) |
Operation | Temperature: 10℃~35℃ |
Humidity: 30%~75% | |
Air pressure: 700hPa~1060hPa | |
Storage &Transport | Temperature: -40℃~70 ℃ |
Humidity: 10%~90% | |
Air pressure: 500hPa~1060hPa | |
Standard | MDD 93/42/EEC IEC 60601-1: 2012, IEC 60601-1-2:2007 |
