Disposable Incision Dilator Surgical Laparoscopic Wound Protector

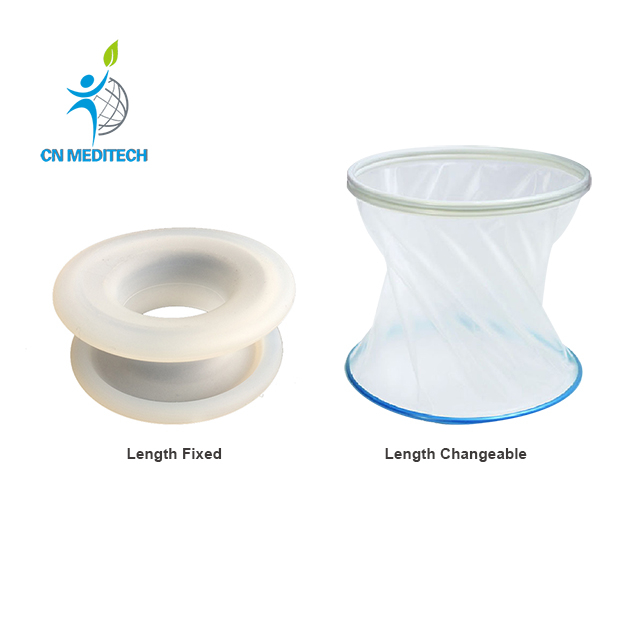

Length Changeable is suitable for the open operation, for example, general surgery, cesarean operation, gynecological operation, and common abdominal operation.

Length Fixed is suitable for endoscope&small incision operation, for example, endoscopic surgery, thoracoscope surgery, appendicitis operation etc.
Availability:
Quantity:
  • CNME080910

  • CNMEDITECH

Disposable Incision Dilator Surgical Laparoscopic Wound Protector

1060-2

1060-3

Scope of Application:


It is applicable in expansion small incision or minimally invasive incision filed, to prevent incision injury and reduce incisional infection.


The Disposable Wound Protector is a sterile, single-use medical device designed to retract and protect the incision site during surgery. It provides 360° atraumatic retraction, reducing excessive tension on the wound edges while preventing contamination from external pathogens. This enhances surgical access, reduces infection risk, and promotes better healing outcomes.



Features:


360° Uniform Retraction – Expands the incision evenly, improving visibility and access to the surgical site.


Infection Prevention – Creates a protective barrier between the incision and external contaminants, reducing the risk of surgical site infections (SSI).


Minimizes Tissue Trauma – Reduces excessive pressure on wound edges, lowering the risk of ischemia and necrosis.


Flexible & Self-Retaining Design – Adapts to different incision sizes without the need for additional retraction instruments.


Transparent Material – Allows clear visualization of surrounding tissue.


Available in Multiple Sizes – Suitable for various surgical procedures, including small, medium, and large incisions.


Latex-Free & Biocompatible – Made from soft, medical-grade polymer materials to ensure patient safety.



Specifications:

Classify

Outer Ring Diameter (mm)

Inner Ring Diameter (mm)

Incision length (mm)

Silica Gel

40

30

10-15

50

40

20~25

70

70

30~35

35~40

120

100

50~60

PU

60

70

30~50

80

90

50~70

120

130

80~110

150

160

100~140

180

190

120~160

220

230

150~190

270

280

230~270

320

330

250~290



How It Works?


Insertion – The wound protector is inserted into the incision site.


Expansion – The inner ring expands inside the cavity while the outer ring rolls outward to secure the device.


Retraction & Protection – Provides continuous, even retraction while preventing bacterial contamination.


Removal – Easily removed without causing additional trauma to the wound.
