From Surgery to ICU Ventilators: The Selection of HME Trach Vs HEMF

Why Has “HME Trach vs HMEF” Become a Controversial Topic in Ventilator Configuration?

As essential consumables within ventilator circuits, the selection between HME trach (heat and moisture exchanger for tracheostomy) and HMEF (heat and moisture exchanger with filter) has long been a topic of debate. This controversy mainly stems from several real-world clinical and operational considerations:

Infection Control (VAP Risk) vs Airway Humidification Management

Both HME trach and HMEF are designed to maintain airway humidity and temperature balance in mechanically ventilated patients. However, clinical practice has revealed several key issues:

· Insufficient humidity within ventilator circuits may cause airway secretions to dry and thicken, increasing the risk of tube obstruction and infection, including ventilator-associated pneumonia (VAP).

· HME trach, functioning as an artificial nose, simplifies humidification management but delivers relatively limited efficiency. HMEF, by integrating a high-efficiency filter, enhances moisture retention while significantly improving circuit closure and infection control performance.

These differences create a recurring dilemma for clinical teams:

Can a more convenient humidification solution provide adequate infection protection at the same time?

Divergent Needs of Key Stakeholders

Clinical Perspective:

The primary objective is patient safety and optimal clinical outcomes. Clinicians focus on one core question: “While ensuring effective heat and moisture exchange, does this configuration provide sufficient infection protection?”

Decisions must be based on clinical assessment and evidence-based practice.

Procurement Perspective:

While meeting baseline clinical safety and performance requirements, procurement teams are highly sensitive to:

· Compatibility with existing ventilator models

· Supply stability

· Replacement frequency

· Unit price and long-term cost efficiency

They must ensure recommended consumables integrate smoothly into existing equipment fleets while aligning with budget constraints and hospital management protocols.

Breakdown of Core Functional Differences

HME Trach

Designed specifically for tracheostomy patients:

· Primary objective: Minimize dead space and airflow resistance to prevent discomfort caused by pressure buildup at the tracheostomy site.

· Humidification mechanism: Focuses on basic moisture conservation.

· Filtration role: Some models include a simple filtration layer, but filtration efficiency is generally limited and not positioned as a core clinical advantage.

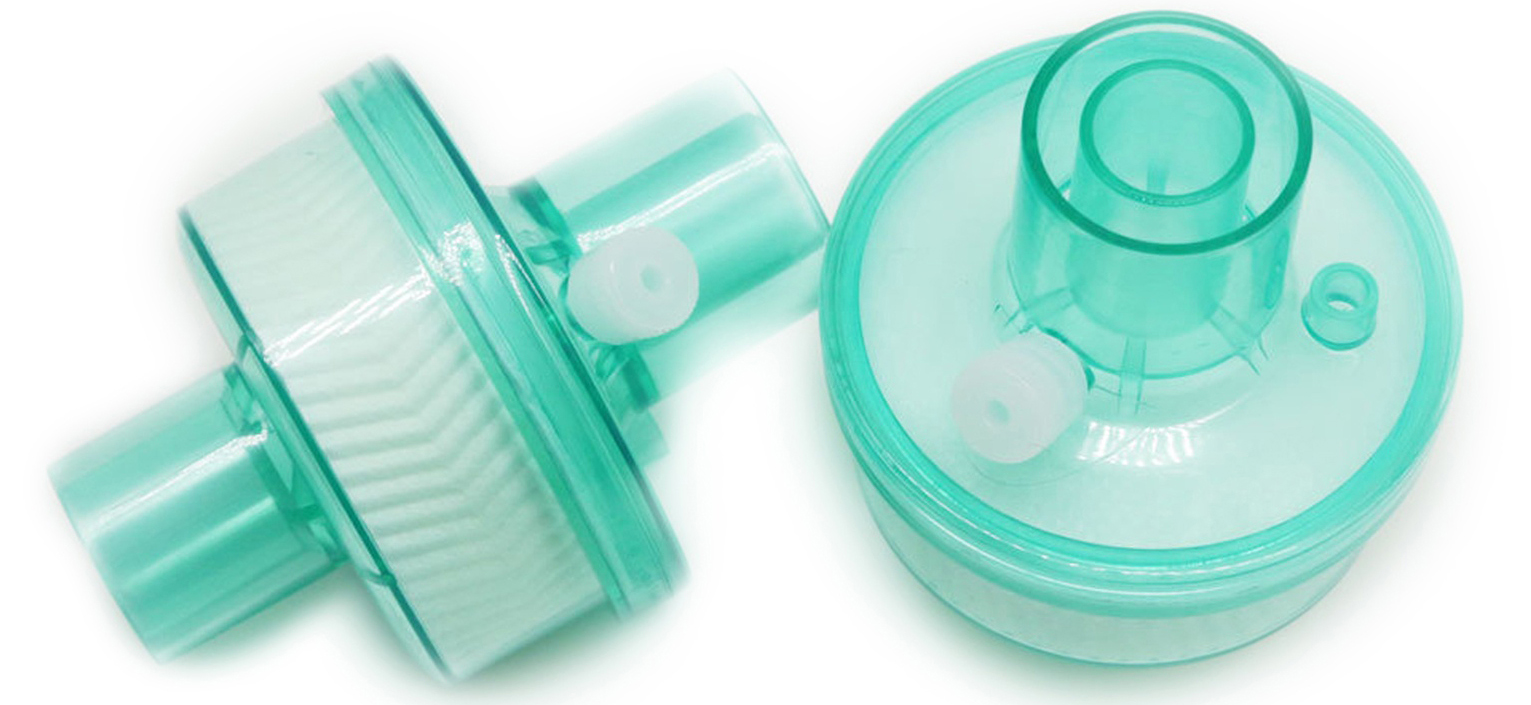

HMEF

Integrated solution combining humidification and high-level infection control:

· Humidification performance: Designed to simulate nasal heat and moisture recovery.

· Core enhancement: High-efficiency filtration of bacteria, viruses, and particulate matter, often achieved through hydrophobic membrane technology.

· Structural impact: Increased component density and thickness may elevate airflow resistance and influence ventilator parameters such as oxygen flow rate.

Key Distinction: Not an “Upgrade vs Downgrade” Relationship

Category	HME Trach	HMEF
Design intent	Optimize ventilation comfort	Dual goals: humidification + high-level protection
Functional priority	Low resistance > filtration	Balanced humidification and protection
Ideal users	Long-term tracheostomy patients with low secretion load	Preventive use in infection-risk environments

Comparison of Key Technical Parameters

Humidification Efficiency (mg H₂O/L)

Tracheostomy patients lose the natural humidification function of the upper airway, making device-based moisture compensation critical:

· HME trach: Moderate humidification efficiency, suitable for patients with low secretion volume.

· HMEF: Higher humidification performance, ideal for dry environments or patients with thick, viscous secretions.

· Clinical focus: Insufficient humidification can cause mucus plugging and airway obstruction, while excessive humidification may lead to condensation accumulation. Selection should be guided by secretion viscosity and patient tolerance.

Filtration Efficiency (BFE / VFE)

Filtration performance must match the infection risk scenario:

· HME trach: Basic particulate filtration (typically BFE <95%), mainly blocking large droplets with limited viral protection.

· HMEF: High-efficiency filtration (BFE/VFE >99%), capable of blocking bacterial and viral aerosols, suitable for immunocompromised patient areas such as ICUs.

· Clinical focus: Mandatory HMEF-grade filtration is primarily required during infectious disease outbreaks or in immunosuppressed populations. In general wards, basic filtration may be sufficient.

Airflow Resistance and Dead Space

Increased work of breathing can lead to CO₂ retention:

· HME trach: Low airflow resistance and minimal dead space, reducing patient respiratory workload.

· HMEF: Higher material density may increase resistance and dead space, potentially impairing CO₂ elimination.

· Clinical warning: Patients with chronic lung disease or respiratory muscle weakness should prioritize low-resistance devices to avoid CO₂ retention and respiratory decompensation.

Secretion Management Capability

· HME trach: Simple structure reduces clogging risk but requires more frequent replacement, increasing nursing dependency.

· HMEF: Multi-layer construction offers better resistance to secretion infiltration and can be used continuously for 24–48 hours, but sudden blockage risk is higher.

· Operational recommendation: Patients with heavy secretion burden should use HMEF cautiously. Facilities with limited nursing resources may prefer long-duration HMEF solutions.

Decision-Making by Ventilator Configuration Scenario

In ventilator setup scenarios, the selection between HME trach and HMEF must be driven by actual clinical needs rather than a simplistic comparison of superiority. The following operational guidance applies to key clinical scenarios:

ICU Settings with Infection Isolation Requirements

ICU environments are highly susceptible to the transmission of multidrug-resistant organisms.

The high filtration efficiency of HMEF (BFE/VFE ≥99%) effectively blocks bacterial and viral particles, reducing exposure risks for healthcare workers and preventing cross-infection among patients.

· Why HME trach is not recommended: Its filtration efficiency is generally insufficient, especially in non-certified models, and does not meet isolation standards.

Long-Term Tracheostomy with Stable Ventilation

The low resistance and minimal dead space design of HME trach reduces expiratory workload and minimizes the risk of CO₂ retention, making it suitable for patients requiring months or long-term ventilation.

· Key caution: If airway secretions become viscous or frequent coughing occurs, humidification performance must be closely monitored. Use with caution when humidification falls below 28 mg H₂O/L.

Transport, Emergency, and Rapid Ventilation Scenarios

Emergency principles:

· When infectious risk is present , a portable HMEF is mandatory.

· For non-infectious patients, prioritize solutions with setup times ≤10 seconds, such as plug-and-play HME trach.

Risk management:

· Avoid multi-layer filter HMEF devices during unstable transport, as mechanical vibration may compromise sealing integrity.

· Emergency kits should be pre-equipped with both device types.

Resource-Limited Settings

Core dilemma: Filtration level vs affordability.

· Although HMEF has a higher unit price, the cost of a single infection outbreak may exceed its price by hundreds of times.

· HME trach requires more frequent replacement, increasing long-term burden.

Operational optimization:

· In non-infectious zones, basic HMEF models with filtration efficiency ≥95% may be acceptable and are often priced 30% lower.

· Through strict daily disinfection protocols, HME trach usage cycles may be extended to 36 hours.

Common Misconfiguration Scenarios and Hidden Risks

Increased Ventilatory Load

Long-term use of high-resistance HMEF in tracheostomy patients poses a hidden risk of respiratory failure. Because tracheostomy patients have limited respiratory compensatory capacity, high-resistance HMEF increases inspiratory work and reduces ventilation efficiency. Prolonged use may lead to CO₂ retention, respiratory muscle fatigue, and even progression to type II respiratory failure. Such risks are often masked by the perceived “filtration protection advantage” and only become apparent when sudden oxygen desaturation occurs.

Overconfiguration

Overconfiguration under the pretext of “infection control compliance” undermines patients’ core interests. To satisfy infection control workflows, non–high-risk patients may be forced to use high-efficiency HMEF. The elevated airflow resistance interferes with tidal volume monitoring, triggers false ventilator alarms, and prompts automatic increases in delivery pressure, ultimately resulting in barotrauma or patient–ventilator asynchrony. This formalistic approach sacrifices ventilatory safety to meet administrative metrics.

Parameter Incompatibility

Differences in interface design and internal volume across brands can cause data deviations. Variations in dead space volume  and connector taper lead to 8–15% discrepancies in ventilator-read tidal volume and end-expiratory pressure (PEEP). If clinicians fail to recognize these shifts, they may incorrectly increase oxygen concentration or PEEP, creating secondary risks such as oxygen toxicity or alveolar overdistension.

Price-Only Comparison

Ignoring technical parameters during procurement can trigger concealed post-sales disputes. Awarding contracts solely on the lowest unit price—without verifying resistance ranges  or filtration ratings —often results in clinical rejection due to rapid clogging or excessive resistance. Suppliers may then refuse returns or compensation, citing that “parameters were not specified in the contract,” escalating into prolonged legal deadlock.

Selection from a Distribution and Procurement Perspective

1. Differences in Global Guidelines

National regulations directly define procurement baselines:

· North America, Europe, Japan: Mandatory use of HMEF with BFE ≥99% in operating rooms and ICUs.

· Developing regions: Recommended but not mandatory , allowing substitution with HME trach for cost reasons.

· Procurement strategy: In mandatory regions, prioritize HMEF inventory with full certification. In recommendation-only regions, bundle solutions to mitigate compliance disputes.

2. Tiered Hospital Procurement

Avoid one-size-fits-all configurations by allocating resources by scenario:

· ICU / isolation wards: 100% HMEF, critical for infection control audits.

· General wards: hybrid strategy. HMEF for high-risk patients, HME trach for stable patients.

· Rehabilitation and community care: promote HME trach for low resistance and cost efficiency in long-term care.

· Cost impact: Tiered allocation can reduce HMEF usage by over 30% without breaching infection control requirements.

3. Product Line Portfolio Strategy

Single-model strategy:

Advantages: simplified inventory, lower training costs.

Risks: inability to cover diverse clinical scenarios, resulting in lost orders.

Scenario-based SKU strategy:

Advantages: tiered pricing. ICU models priced 20% higher; home-care models discounted.

Challenges: requires customer education to prevent misselection and returns.

Optimal solution: Maintain two core SKUs—a standard HMEF and a comfort-focused HME trach—with optional customized models.

4. Impact of Clinical Training Costs on Long-Term Repurchase

Procurement decisions must be supported by training investment:

HMEF training burden: Nurses must recognize clogging indicators and comply with 24-hour mandatory replacement. Poor training leads to high complaint rates.

HME trach hidden risks: Insufficient patient education may result in misuse for high-secretion patients, increasing blockage risk.

How to Explain the Selection Logic of HME Trach vs HMEF to Physicians

1. Shift from “Feature Selling” to “Needs Analysis”

Do not emphasize how many filter layers an HMEF has, nor proprietary materials used in HME trach.

The only effective communication anchors are:

The patient’s actual ventilatory burden (e.g., work of breathing, secretion viscosity).

The real infection control risk of the environment (e.g., prevalence of multidrug-resistant organisms).

Example: Instead of stating “filtration efficiency exceeds 99%,” explain: “The patients you are currently treating with CRE infections require aerosol containment to prevent spread to adjacent beds.”

2. Explain Through Real Clinical Scenarios

Describe situations physicians encounter daily and embed selection logic naturally:

ICU ward round scenario:

“If sputum cultures identify Acinetobacter baumannii, switching to a low-filtration device such as HME trach may turn the entire ward into a transmission source. In this situation, HMEF is mandatory, even if it slightly increases airflow resistance.”

Rehabilitation follow-up scenario:

“A patient has lived at home with a tracheostomy tube for three months. Daily breathing effort caused by high-resistance HMEF prevents normal activity. Switching to HME trach allows independent daily living. In this case, infection risk is low, and comfort becomes a clinical necessity.”

3. Answer Questions with Data-Driven Conclusions

Most physician concerns fall into three categories. Address them directly:

Is it safe?

HMEF: In high-infection-risk environments, the consequences of filtration failure far outweigh the burden of increased resistance.

HME trach: When daily secretion volume exceeds 30 mL, blockage risk increases sharply and requires pre-assessment.

Is it comfortable?

Tracheostomy patients are highly sensitive to airflow resistance.

The smooth airflow advantage of HME trach becomes increasingly significant during long-term use.

HMEF is recommended only for short-term, high-risk periods.

Is it suitable for long-term use?

HMEF offers the best cost–benefit ratio during active infection phases, but continued use during stable periods represents resource waste.

Over a two-year home-care period, total costs with HME trach are typically more than 40% lower than with HMEF.

Conclusion: HME Trach vs HMEF Is Not Opposition, but Configuration Strategy

The choice between HME trach and HMEF is never binary. It is a configuration strategy based on a dynamic balance triangle:

Patient condition (tolerance) × Ventilator mode (support intensity) × Infection control level (environmental risk)

From the Physician’s Perspective: Maximizing Patient Benefit

· When tracheostomy site bleeding coincides with hypoxemia, reassess whether high-resistance HMEF is increasing respiratory muscle workload.

· When multidrug-resistant infections spread within the same ward, question whether insufficient protection from HME trach is facilitating transmission.

The ultimate goal is not “choosing the right product,” but defending two critical safety lines: Airway safety line: avoiding respiratory decompensation caused by excessive resistance. Infection control line: preventing outbreaks due to inadequate filtration.

From the Procurement Perspective: Precision Matching

True professionalism lies in answering three questions:

· When must we insist? —— When sputum cultures are positive, price pressure must not override the need for HMEF.

· When can we compromise? —— For stable home-care patients, reject the forced promotion of high-resistance HMEF under the banner of infection control.

· How do we prove value? —— By reducing misconfiguration rates (fewer returns) and clinical complaints (fewer disputes).

The Essence of the Decision

· HMEF is a protective shield, designed for high-risk environments.

· HME trach is a breathing companion, designed to preserve quality of life.

True cost optimization begins by stopping misconfiguration. When physicians no longer manage midnight blood gas deterioration caused by unnecessary resistance, and procurement teams no longer face legal disputes over parameter discrepancies, the value of a well-designed configuration strategy becomes self-evident.
