What are the Essential Accessories for Hemodialysis Machines?

The Role of Dialysis Auxiliary Equipment in Dialysis Safety and Efficiency

During hemodialysis treatment, in addition to the dialysis machine itself, a series of specialized accessories must work together. These dialysis accessories are crucial to ensuring that the entire treatment process operates safely and effectively.

Their functions are mainly focused on several core aspects.

- First, after the extracorporeal circulation is established, they are responsible for delivering the dialysis fluid and the patient’s blood according to preset parameters.

- Second, during the entire circulation process, these accessories continuously monitor and manage the pressure within the tubing system to ensure that it remains within a safe range.

- Third, as these accessories come into direct contact with the patient’s blood or dialysis fluid, their design plays an essential role in minimizing the risk of infection.

Therefore, selecting the appropriate accessories directly affects the stability and safety of each treatment session. High-quality supporting products not only ensure a smooth treatment process and reduce unexpected interruptions, but also improve compatibility and durability, which helps extend the service life of the core components of the hemodialysis machine.

Major Categories of Hemodialysis Machine Accessories

Hemodialysis treatment requires multiple types of accessories to work in coordination.

Below are the key dialysis accessories, their main functions, and important factors to consider when selecting them.

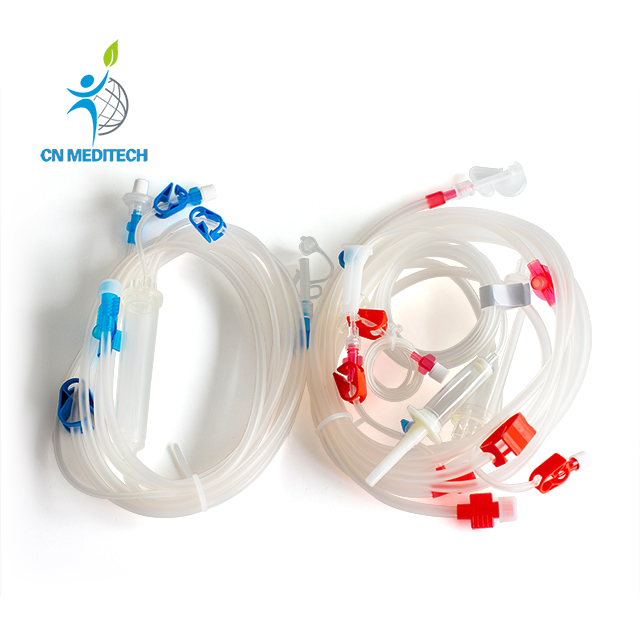

1. Blood Tubing Set

Function:

Includes both the arterial line (carrying blood from the patient’s body) and the venous line (returning blood to the patient’s body), which connect the dialyzer to the patient.

Ensures stable and continuous blood transportation within the extracorporeal circulation system.

Selection Points:

Material Safety: Must be made of medical-grade materials safe for human contact (non-toxic, hypoallergenic).

Flow Compatibility: The inner diameter should ensure that blood flow matches the machine’s settings to prevent abnormal flow rates.

Common Types:

· Disposable Bloodline Sets: Designed for single use to reduce cross-infection risk.

· Reusable Bloodlines: Require strict disinfection; suitable for certain specific models.

· Double-Lumen Bloodlines: Used for specific treatment modes, such as dual-needle operations.

2. Pressure Protectors / Transducer Protectors

Function:

Isolate blood or dialysis fluid to prevent liquid from entering the dialysis machine’s internal precision pressure sensors.

Prevent contamination of sensors that could lead to measurement errors or equipment damage.

Selection Points:

Arterial vs. Venous Side:

· Arterial Transducer Protector: Must withstand high negative pressure (suction force) and maintain strong deformation resistance.

· Venous Transducer Protector: Designed to handle positive pressure (return resistance), emphasizing sealing performance.

Protection Reliability: Choose hydrophobic materials that block liquid penetration and ensure compatibility with the dialysis machine’s connector ports.

3. Connectors & Injection Ports

Function:

Ensure tight and secure connections between tubing components without leakage or risk of detachment.

Provide medication injection points (e.g., for anticoagulants) without interrupting treatment.

Selection Points:

Common Types:

· Luer Lock Connectors: Threaded screw-lock design to prevent accidental disconnection.

· T-Type / Y-Type Connectors: Used for branch line connections.

· Needle-Free Injection Ports: Avoid infection or fluid leakage caused by needle punctures.

Compatibility:Must comply with international standard connector dimensions (e.g., ISO 80369) to ensure seamless fit with other consumables.

4. Other Essential Components

Accessory	Function Summary	Selection Notes
Air Detector	Monitors for bubbles in the tubing system; automatically stops the machine and triggers an alarm if abnormal air is detected, preventing air from entering the patient’s bloodstream.	Requires regular sensitivity calibration to prevent false alarms or missed detections.
Tubing Clamps	Used for emergency blood flow cutoff (e.g., manual quick stop if tubing rupture occurs).	Choose designs operable with one hand and capable of maintaining stable clamping force.
Blood Sampling Port	Allows blood samples to be taken directly during treatment without disconnecting the tubing.	Placement should allow convenient operation while minimizing contamination risk.

Quality Control and Compatibility

Dialysis accessories must achieve both physical and functional compatibility with different brands of dialysis machines (such as Fresenius, Nipro, and Baxter) to ensure uninterrupted treatment.

1.Compatibility Essentials

Connector Matching: Connector specifications (shape, size, locking mechanism) must perfectly fit the target model to avoid leakage or disconnection.

Signal Synchronization: Electronic components such as pressure sensors and air detectors must accurately transmit data to the main machine to prevent false alarms or shutdowns.

Practical Tip: When purchasing, clearly indicate compatible models (e.g., “Compatible with Fresenius 4008S”) and test actual connection performance.

2.Mandatory Quality Requirements

Extracorporeal Circulation Safety Standard (ISO 8637): Defines safety and material standards for components that contact blood, including extractables limits and functional reliability to ensure long-term biocompatibility.

Pressure and Leak Resistance Testing: Accessories must withstand both high positive pressure (>1000 mmHg) and negative pressure conditions during treatment without deformation, cracking, or leakage.

Sterility Assurance: Accessories that directly contact blood (e.g., bloodline set, injection ports) must undergo validated sterilization (e.g., ethylene oxide sterilization) and be supplied in sterile packaging.

Packaging and Sterilization Standards

Before shipment, all dialysis accessories must undergo rigorous sterilization and secure packaging to ensure clinical readiness for immediate use.

1.Sterilization Method Selection

Type	Applicable Scenario	User Notes
Ethylene Oxide (EO) Sterilization	The most commonly used method, suitable for heat-sensitive plastic accessories (such as tubing and connectors).	After opening, the product should be ventilated for a period of time to prevent exposure to residual gas.
Gamma Ray Sterilization	High penetration ability; suitable for precision electronic accessories (such as transducer protectors).	Leaves no chemical residues but may affect certain plastic materials.
Steam Sterilization	Used for a limited number of heat-resistant metal accessories (such as tubing clamps).	High temperature may accelerate the aging of rubber or silicone components.

2.Core Packaging Requirements

Physical Protection:

Independent Blister Tray: Fixes accessory shapes to prevent deformation or compression during transportation (e.g., preventing bloodline set bending).

Double-Layer Sterile Barrier Bags: Inner layer made of medical dialysis paper (breathable), outer layer made of plastic film (waterproof and puncture-resistant).

Traceable Information:

Outer packaging must clearly indicate: production date, expiry date, sterilization batch number, and compatible machine model.

Sterilization parameters (temperature, pressure, duration) must be archived by batch to ensure auditability of the process.

Shelf-Life Management:

Unopened shelf life typically 2–3 years (for EO sterilized products).

Storage conditions: cool, dry environment (temperature <30°C, humidity <70%).

3.Compliance References

Sterilization Process must comply with ISO 11135 (Ethylene Oxide Sterilization Validation Standard).

Packaging Validation must comply with ISO 11607 (Packaging Requirements for Terminally Sterilized Medical Devices).

Operational Reminders:

- Reject accessories with damaged packaging, unclear sterilization indicators, or expired labeling.

- If any abnormality is found in a batch, use the batch number for rapid product recall from the same production lot.

Bulk Supply and Customization Options (OEM Bloodline & Catheter Solutions)

1.Core Customization Dimensions

Physical Property Adjustments:

Tubing length (adjustable from 1.5 m to 3 m), connector type (Luer lock / snap-fit), and color coding (to distinguish arterial and venous lines).

Transducer protector size adapted to specific machine models (such as Baxter Prismaflex interface).

Packaging and Labeling Options:

Bulk Supply: Accessories are provided without individual sterile packaging (used for factory assembly processes, requiring secondary sterilization).

Pre-Sterilized Hospital Packaging: Includes blister tray + double sterile bags with multilingual labels (containing device identification code UDI-DI).

2.Batch Supply Capacity

Standard Accessories: Minimum order quantity ≥ 5,000 sets per batch, with delivery time 15–30 days (e.g., general-purpose bloodline set).

Customized Accessories:Minimum order quantity ≥ 10,000 sets per batch, with a 60–90 day development cycle (including mold design and sterilization validation).

3.Process Assurance

Comprehensive Compliance Support:

Certified ISO 13485 Quality Management System

EU MDR Technical Documentation, including biocompatibility reports

Quality Inspection Documents:

Each shipment includes a batch quality inspection report (e.g., EO residual value < 4 μg/g).

CN MEDITECH Quality and Safety Assurance System

1.Strict Control of Source Manufacturing Compliance

Partner Factory Selection:

CN MEDITECH cooperates only with certified manufacturers that possess valid Class III medical device production licenses. Partner factories are required to hold the following certifications and approvals:

▶ ISO 13485 Quality Management System Certification

▶ Target Market Regulatory Approvals (such as FDA 510(k) or EU CE MDR certificates)

Production Process Supervision:

On-site inspectors from CN MEDITECH conduct random sampling of raw materials (e.g., medical-grade PVC compliance certificates) and first-piece product performance testing (e.g., catheter tensile strength).

Real-time monitoring data from the factory, such as temperature and humidity records of sterilization chambers, are obtained and reviewed simultaneously to ensure process consistency.

2.Dual Safety Verification Process

Process Stage	Responsible Party	CN MEDITECH Actions
Factory Inspection	Manufacturing Plant	Review and verify the factory’s full inspection reports (including biocompatibility test results and EO residual concentration).
Inbound Acceptance	CN MEDITECH	Conduct random on-site sampling upon receipt of goods to inspect visual quality, sterile packaging integrity, and batch label consistency.

3.Closed-Loop Traceability Management

CN MEDITECH has established a unified code traceability system, linking every stage of production and delivery: Customer Order Number → Factory Batch Number → Logistics Packing List Number

All documentation, including factory quality reports, sterilization certificates, and transportation temperature/humidity logs, is retained for at least three years to ensure full product traceability.

4.Client Issue Response Mechanism

Immediate Response to Abnormalities:

When a clinical issue with any accessory is reported, CN MEDITECH initiates a rapid traceability process by identifying all inventory with the same batch number, suspending shipments, and coordinating with the manufacturer to launch CAPA (Corrective and Preventive Actions) procedures.

Alternative Solution Support:

For urgent cases, compatible substitute models (e.g., catheter sets suitable for Baxter machines) are prepared and dispatched within 72 hours, accompanied by full compatibility documentation.

Conclusion and Action Support

The safety and effectiveness of dialysis treatment rely heavily on certified and compatible consumables. Continuous use of unverified or incompatible dialysis accessories may lead to deviations in equipment performance and potential clinical risks.

CN MEDITECH Resource Support

Technical Documentation Package: Includes CE/FDA compliance certificates, biocompatibility reports, and sterilization validation data for target markets.

Customized Configuration Solutions: Tailored bloodline and catheter configuration proposals, complete with material selection and connector validation records.

Sample Testing Kits: Pre-sterilized accessory sets compatible with mainstream dialysis machines (Fresenius, B. Braun, Baxter).

Next-Step Recommendations

▶ Request the “Comprehensive Technical Overview of Dialysis Accessories” electronic catalog.

▶ Apply for an OEM Bloodline Set Quotation tailored to specific machine models.

▶ Submit clinical requirements to initiate a customized product development process.
