What Is 3 Way Stopcock? Applications And Advantages

A three-way stopcock is a type of medical flow control valve. Its core function is to regulate or switch the direction of liquid flow within infusion pathways. By rotating the internal valve core, it enables different combinations of flow directions between three ports. This design provides a flexible liquid pathway management solution for clinical use, and it is particularly indispensable in scenarios such as multiple drug administration, blood sampling, or pressure monitoring.

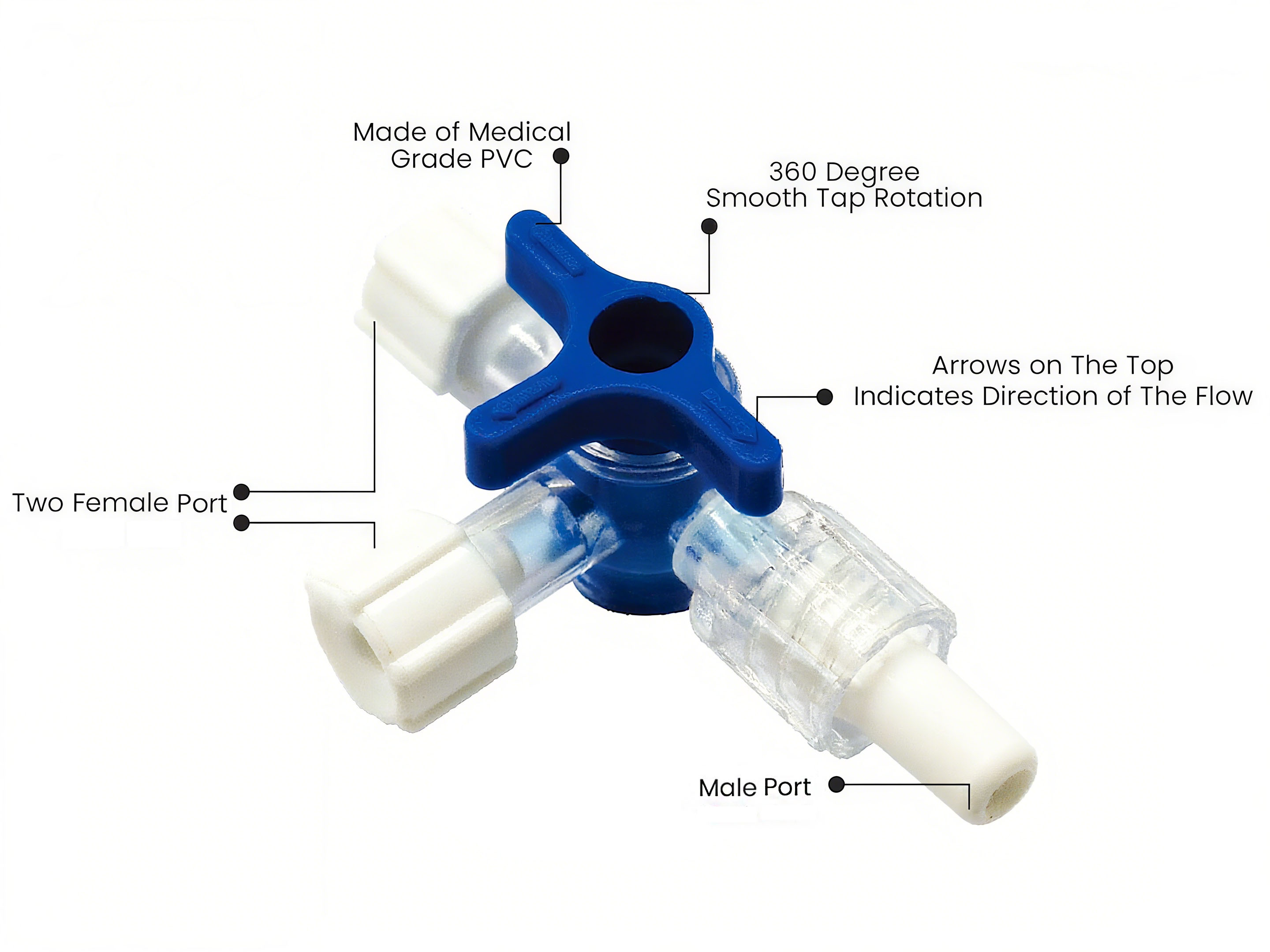

Components of the Three Way Stopcock

Sheath Body: The main structure of the three-way stopcock, which holds the internal valve core and integrates the various ports.

Rotating Handle: The central component of the stopcock. The rotating handle is responsible for switching the connectivity status of the different ports. Its position directly determines the direction of fluid pathways.

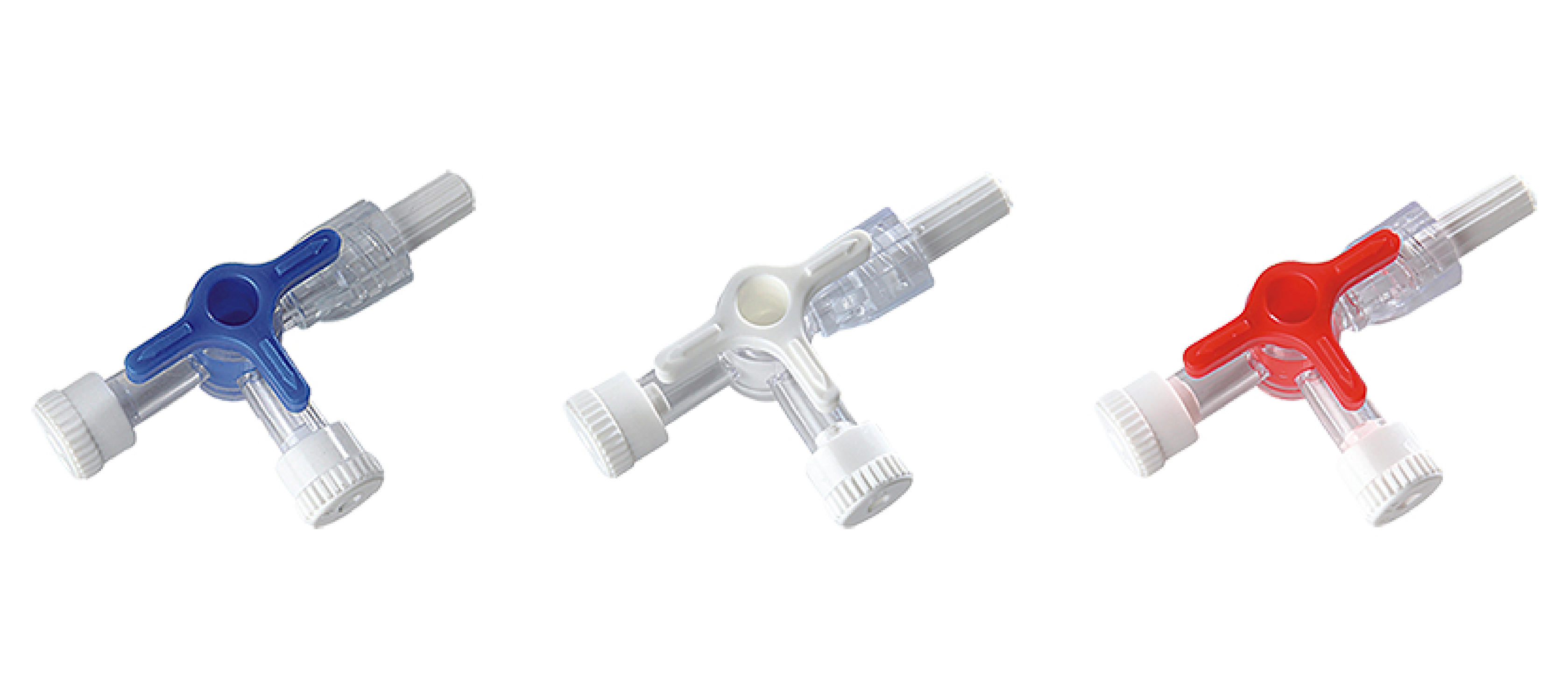

Color Coding:

*Blue: Usually indicates an air inlet or a specific functional channel.

*Red: Usually indicates the main output channel or a critical connection point.

*White: Usually indicates the main input channel or the standard fluid pathway.

Inlet Port (I): The main entry port through which fluid enters the valve body.

Outlet Port (O): The main exit port through which fluid flows toward the patient or downstream devices.

Side Port (II): An auxiliary port used for connecting additional fluid sources, sampling ports, or attaching pressure monitoring devices.

Extension Cannula Option: May be fitted with optional extension cannula to increase the flexibility of distance between the valve and the target connection.

Use of 3 Way Stopcock

Intravenous Therapy

Used for precise infusion management of IV fluids and medications. It supports bolus injection, continuous infusion, or flushing operations, meeting diverse fluid control needs throughout different treatment phases.

Invasive Blood Pressure Monitoring

When connected to an arterial catheter system and linked with a pressure transducer, it enables real-time collection and transmission of dynamic blood pressure waveform data to monitoring equipment.

Blood Sampling

Blood specimens can be drawn quickly and aseptically through the side port or a dedicated collection port. This reduces the risk of repeated venipuncture trauma for patients.

Radiology

In CT scans, angiography, and other imaging procedures, it precisely controls the injection speed, dose, and timing of contrast agents, thereby ensuring consistent image quality.

Critical Care and Anesthesia Procedures

In emergency care and intraoperative management, it enables simultaneous administration of multiple medications such as vasoactive agents, anesthetics, or rapid fluid resuscitation.

Simultaneous Multi-Drug Infusion

It establishes independent and parallel infusion pathways, preventing the mixing of incompatible drugs within the same tubing and thereby ensuring treatment safety.

Advantages of the Three Way Stopcock

It allows healthcare providers to switch between different infusion pathways or stop fluid delivery directly by rotating the valve core—without disconnecting any tubing. This reduces operational steps and enhances efficiency.

With simple manual rotation of the external control lever, the operator can accurately regulate the opening and closing status of each port or adjust flow volume. This applies to both routine infusion tasks and emergency large-volume bolus requirements, ensuring quick and flexible response.

Its compact design allows a single stopcock to meet multiple medical needs, such as establishing IV infusion pathways, connecting invasive pressure sensors, direct blood sampling, and high-pressure contrast agent injection in imaging procedures. It is widely applicable in operating rooms, ICUs, and radiology departments.

By integrating flow direction switching, channel closure, and auxiliary port functions, it eliminates the need for multiple straight connectors or three-way joints. This results in cleaner, simpler tubing layouts and significant savings in preparation and disinfection time.

Equipped with internationally standardized color-coded indicators to ensure accurate tubing connections. Advanced models may include one-way anti-reflux structures and closed sampling ports to minimize risks of cross-contamination, drug backflow, air embolism, or accidental needlestick injuries.

Cost benefits manifest in multiple aspects: reusing the main infusion pathway reduces consumable waste; the need for fewer auxiliary components lowers procurement and storage costs; simplified operation enhances staff efficiency, translating into sustainable economic value for healthcare facilities.

How to Use 3 Way Stopcock

Step 1:

Before operation, confirm the system is airtight. Ensure all tubing interfaces are securely connected with no risk of leakage. Wear sterile gloves, disinfect the valve body and all ports, and follow the aseptic procedures of the institution.

Step 2:

Identify the current fluid pathway status according to the color-coded markings and directional arrows. Hold the textured surface of the valve body between thumb and forefinger, gently rotate to the desired angle, and select the main pathway, side pathway, or closed position.

Step 3:

For blood collection or medication addition, connect a sterile syringe vertically to the target port. Keep the valve stable, aspirate a small volume in reverse to clear dead space, then draw the required specimen or inject the intended drug smoothly.

Step 4:

After additional port operations, immediately restore the valve to its initial position. In IV infusion, reset the pathway for continuous delivery. In pressure monitoring, ensure the sensor pathway remains unobstructed.

Step 5:

While adjusting the valve direction, observe infusion drip rate, pressure waveform continuity, and patient vital signs. If fluid blockage or waveform interruption occurs, check for misdirection of the valve or possible catheter kinking.

Step 6:

For long-term use, inspect the valve's locking status regularly to confirm no loosening. Replace port dressings at least every 24 hours and repeat system integrity testing to prevent contamination or leakage.

Step 7:

At the end of use, perform a standardized disconnection process. Close all channels before sequentially disconnecting tubing. Dispose of contaminated valves according to medical waste protocols. Perform hand hygiene immediately after any contact procedure.

Common Complications of the Three Way Stopcock

1. Fluid Leakage and Cross-Contamination:

Aging seals or loose connections may lead to leakage. Unintended fluid crossover between blood and medications can increase the risk of infection or interfere with treatment.

2. Difficult Rotation:

Crystallized drug deposits, dried blood residue, or physical deformation may increase resistance or cause valve jamming, delaying clinical procedures.

3. Drug Incompatibility:

Certain solvents, such as lipid-based injections, may react with silicone seals, causing swelling, degradation, and particulate release into the fluid pathway.

4. Clogging and Obstruction:

High-viscosity drugs or unflushed blood samples can form clots inside the channels. Long-term infusion of nutrient solutions may encourage microbial biofilm growth, leading to blockage.

5. Loss of Sterility:

Frequent port manipulations, damaged protective membranes, inadequate disinfection, or contact with contaminated gloves may introduce pathogens into the bloodstream.

6. Port Misalignment:

Wear on ratchet mechanisms or incorrect rotation angles can misalign the indicator with the actual flow pathway. For instance, a blood sampling port may be mistakenly directed to continuous infusion.

7. Material Damage:

Forceful rotation may fracture ceramic valve discs, while repeated punctures of rubber septa may shed particles, creating foreign bodies inside tubing.

8. Limited Durability Under High Pressure:

Contrast injections exceeding 300 mmHg may compromise seals or even rupture the valve structure. Strict adherence to labeled pressure ratings is necessary.
