Tracheostomy Tubes Explained: Uses, Types, and Key Sizes

Maintaining unobstructed breathing is vital to sustaining life, and in many medical scenarios, tracheostomy tubes take on this crucial responsibility. This precisely designed conduit, serving as a bridge between the patient’s external environment and the lower airway, is not only standard medical equipment in hospital intensive care units (ICUs) but is also increasingly used in the complex context of long-term home care. Its stable placement establishes an artificial airway, directly connecting the patient’s respiratory function to life-support systems.

For both frontline medical staff directly caring for patients and service providers or distribution partners responsible for equipment supply, a thorough understanding of the core features of tracheostomy tubes is essential.

What Is Tracheostomy Intubation?

When disease or trauma prevents the upper respiratory tract (mouth and nose) from functioning properly, the medical team may perform a tracheotomy, creating an artificial channel at the front of the neck that leads directly into the trachea. The tracheotomy tube is a specially designed device intended for insertion into this opening.

It is not a temporary emergency measure but is instead intended for long-term airway management. This carefully engineered tube bypasses potentially damaged or obstructed throat regions and performs its core mission: reliably delivering external air, oxygen, or ventilator-driven airflow deep into the trachea and bronchi. In essence, it establishes and safeguards a vital pathway for gas exchange necessary for sustaining life.

Therefore, whether in the race against time in ICUs to rescue patients with acute respiratory failure, in situations requiring months or even years of mechanical ventilation support, or in cases of upper airway obstruction due to tumor compression, severe trauma, or congenital malformations, tracheostomy intubation plays an indispensable role. It ensures that no matter how complex the upper airway condition may be, the life-sustaining process of breathing can continue safely and consistently through this artificial passage, guaranteeing effective gas exchange.

Indications for Tracheostomy Tubes

1. Long-term Mechanical Ventilation

When patients cannot breathe independently due to illness or injury and require prolonged ventilator support, tracheostomy tubes provide a more stable and comfortable pathway compared to oral intubation. They facilitate daily oral care and patient communication while significantly reducing the risk of complications associated with prolonged intubation. This applies equally in hospital ICUs and in carefully prepared home respiratory care environments.

2. Upper Airway Obstruction

For patients suffering from severe airway obstruction of the mouth, nose, or throat due to tumors, inflammation, trauma, or congenital abnormalities, tracheostomy intubation creates a direct “bypass” at the neck. This allows life-sustaining air to be delivered directly into the lower airway. It is a critical intervention in emergency and resuscitation scenarios, while also serving as a reliable safeguard for maintaining airway patency during long-term home care.

3. Neurological Respiratory Muscle Weakness

Patients with neurodegenerative diseases such as ALS, high-level spinal cord injuries, or myasthenia gravis often suffer respiratory muscle dysfunction. A tracheostomy tube allows for more effective ventilator connection, assisting weakened muscles in maintaining adequate ventilation. This enables patients in home or long-term care facilities to live with improved dignity and quality of life.

4. Postoperative Airway Management

After major head and neck surgeries, swelling, bleeding, or anatomical changes may temporarily threaten airway safety. Inserting a tracheostomy tube during this recovery period serves as an “emergency valve”, ensuring the patient passes safely through the high-risk phase of postoperative swelling and laying the foundation for a smooth recovery.

5. Functional Loss of the Larynx

In patients with long-term intubation-induced laryngeal edema, granuloma formation, or glottic closure dysfunction, tracheostomy provides a decoupled pathway for breathing and swallowing.

· Inflated cuffs close off the trachea to prevent aspiration.

· Allows oral feeding to be resumed, restoring nutritional intake.

Sizes of Tracheostomy Tubes

Choosing the correct size of tracheostomy tube is not a simple administrative task but a critical technical decision that directly impacts airway maintenance, patient tolerance, and overall medical safety. The core parameter is the internal diameter (ID), which determines airflow volume and directly affects ventilation efficiency.

1.Clear distinction between adult and pediatric patients:

-Infants and Children

Significantly smaller sizes, typically ranging from 1.5 mm to 5.5 mm internal diameter.

Growth and anatomical characteristics at this stage require highly precise matching. A tube that is slightly too large may compress delicate tissues, causing damage or necrosis; a tube that is slightly too small risks inadequate ventilation or blockage.

-Adult Patients

Commonly range from 6.0 mm to 10.0 mm internal diameter.

Although the airway is relatively larger, selection must still be carefully based on height, body size, medical history, and therapeutic needs.

2.Key Principles of Size Selection

-Safety Baseline

· Avoid narrow internal diameters: A tube too small acts like a bottleneck, obstructing airflow, increasing respiratory effort, and risking hypoxemia or secretion blockage.

· Avoid oversized tubes: Excessively large tubes wedge forcefully against the tracheal wall, causing tissue abrasion, inflammation, edema, and potentially leading to airway stenosis or tracheal wall perforation.

-Comfort Considerations

· Proper anatomical fit reduces unnecessary friction and irritation, lowering discomfort.

· Appropriately sized tubes reduce the likelihood of mucosal injury and long-term complications such as granuloma formation.

3.Main Size Ranges and Considerations

Dimension	Pediatric Patients (Infants & Children)	Adult Patients
Internal Diameter (ID)	1.5 mm – 5.5 mm (fine precision range)	6.0 mm – 10.0 mm
Age/Weight Starting Point	Neonates/low-birth-weight infants require individualized sizing	Standard evaluation based on height and body build
Selection Key Factors	Extremely precise matching – too large risks injury, too small risks airflow obstruction/blockage	Consider anatomical structure, medical history, and treatment needs
Primary Risks	Tissue compression necrosis; inadequate ventilation	Tracheal wall injury; granuloma formation
Core Balance	Gas exchange vs. tissue injury	Structural support vs. comfort

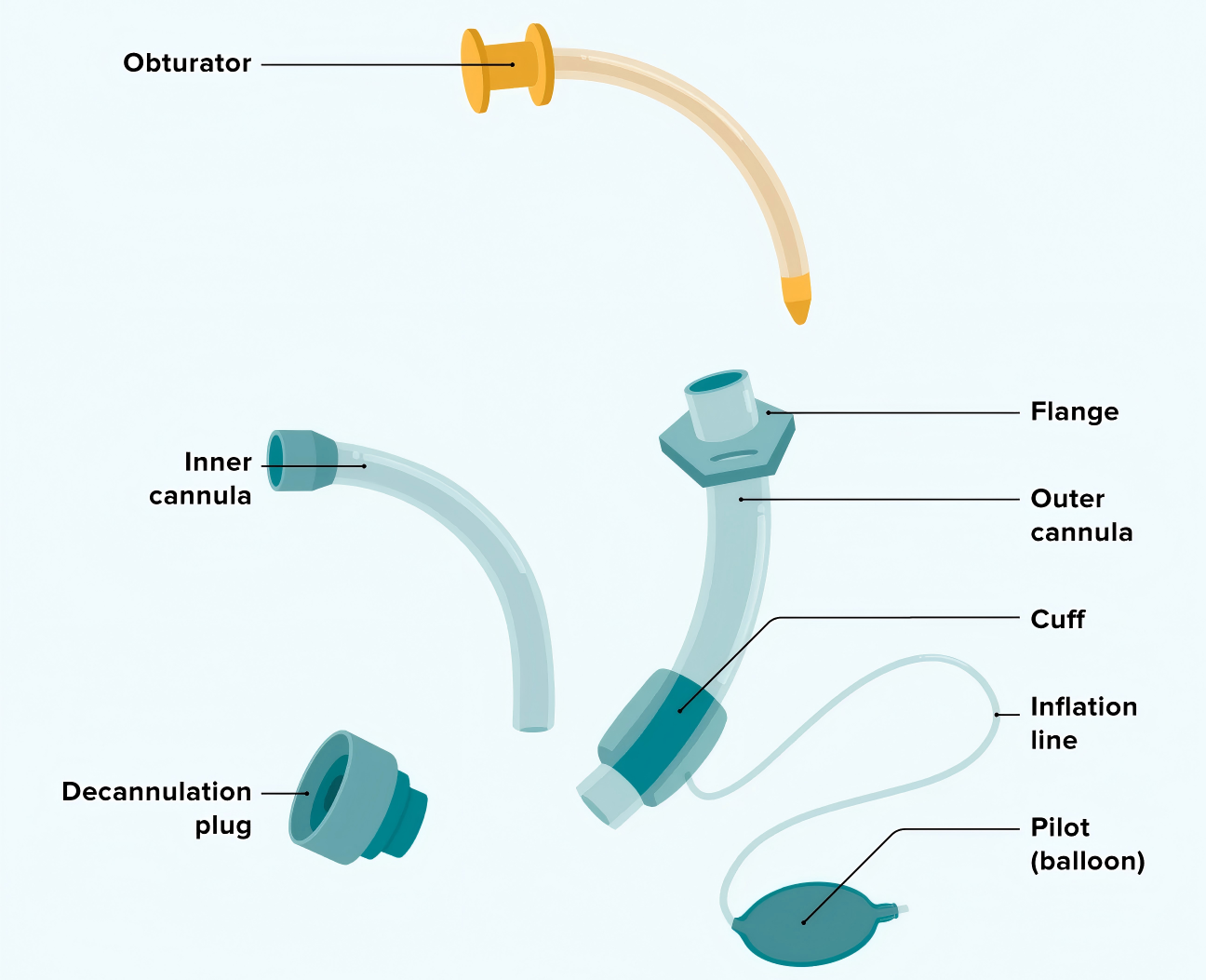

Parts of Tracheostomy Tubes

Core Components

· Outer Cannula: Main structure placed directly into the tracheostomy site, maintaining airway patency. May be integrated with an inflatable cuff in cuffed models.

· Inner Cannula: Provides a removable channel for secretion buildup; can be taken out for cleaning to prevent blockage. Can be quickly replaced in emergencies (e.g., mucus plug).

· Connector: Standardized interface connecting to ventilator tubing, oxygen therapy devices, or manual resuscitation bags, ensuring compatibility.

Safety Components

· Tracheostomy Ties: Soft medical-grade securing straps placed around the neck. Elastic tension balances security and comfort, preventing displacement.

· Tracheostomy Tube Holder: Base plate rests against the skin with mechanical locking to stabilize tube wings. Helps distribute pressure and reduce skin breakdown risk.

Types of Tracheostomy Tubes

1. Cuffed and Uncuffed Tracheostomy Tube

-Cuffed Tracheostomy Tube

Core Function: The inflated cuff seals the trachea, preventing air leakage and blocking aspiration.

Clinical Applications:

· Patients on mechanical ventilation (especially in the ICU): Prevents high-pressure gas from escaping, ensuring every breath delivered by the ventilator enters the lungs effectively and maintains adequate tidal volume.

· Patients at high risk of aspiration: The cuff tightly seals the trachea, blocking saliva, food, or gastric contents from entering the lower airway—a physical defense against life-threatening aspiration pneumonia.

· Patients requiring high airway pressure support (e.g., ARDS).

· Patients with partial airway bleeding requiring isolation and protection.

-Uncuffed Tracheostomy Tube

Core Feature: The airway remains partially open around the tube, allowing air passage.

Indications:

· Children (especially infants and young children): Reduces the risk of mucosal compression and injury, as the tracheal cartilage is soft and vulnerable to prolonged pressure.

· Patients who are stable and primarily breathing spontaneously: Preserves mucociliary clearance, making secretion removal easier, and reduces the discomfort caused by airflow resistance against a cuff.

· Patients who need clear speech or laryngeal function assessment: Allows partial airflow to bypass the tube and vibrate the vocal cords, enabling speech communication.

2. Standard vs. Reinforced Tracheostomy Tubes

-Standard Tracheostomy Tubes

Material: Medical-grade PVC or silicone, uniform in texture and flexible.

Indications: Suitable for most daily care needs, including routine ward care or long-term home nursing. Best for patients with limited neck movement and relatively stable body positioning, meeting basic ventilation and secretion management requirements.

-Reinforced Tracheostomy Tubes

Built with embedded metal or rigid plastic spiral coils, significantly enhancing resistance to compression and kinking. When patients excessively flex their necks or assume special positions, the tube resists external pressure and maintains airway patency.

Clinical Applications:

· Patients with restricted or abnormal neck movement (e.g., deformities, ankylosis).

· Severely obese patients or those with short, thick necks where soft tissues may compress the airway.

· Unconscious or agitated patients who may displace or compress the tube (e.g., certain neurology or ICU patients).

· Patients requiring special nursing or surgical positions (e.g., complex wound dressing or specific surgical postures).

Conclusion

Tracheostomy intubation is more than just a life-support device—it is the essential bridge connecting intensive care and long-term home rehabilitation. Beyond the ICU, it enables patients with chronic respiratory failure to return home, maintaining both quality of life and personal dignity.

For clinicians, accurate selection of tracheostomy tubes and accessories directly defines patient safety thresholds. A reinforced tube may prevent airway collapse in an agitated patient; a low-resistance inner cannula may reduce long-term mucosal injury in children; and a well-designed fixation system can significantly minimize complications from tube displacement.

Our integrated solutions include:

*Full size coverage｜from neonates to large adults.

*Multiple configurations｜cuffed/uncuffed, standard/reinforced.

*Complete accessory support｜fixation plates, ties, connectors, cleaning brushes.

*Customization｜addressing unique anatomical or therapeutic needs.

This is not just about product supply but about a commitment to safety—providing reliable respiratory support from critical emergencies to long-term home care. Upholding the clinical principle of prioritizing airway safety remains the ultimate goal of tracheostomy tube management.
