Low Flux and High Flux Blood Hemodialysis Dialyzer
Specifications:
Performance parameters and specifications | |||||
Parameter | Qb/Qd(ml/min) | SM140L | SM160L | SM180L | SM200L |
Effective Surface Area（m2） | 1.4 | 1.6 | 1.8 | 2.0 | |
KOA Urea(mL/min) | 575.3 | 603.5 | 651.8 | 689 | |
Urea | 200/500 | 177 | 179 | 182 | 184 |
300/500 | 229 | 231 | 235 | 238 | |
400/500 | 266 | 269 | 273 | 276 | |
Creatinine | 200/500 | 161 | 163 | 165 | 167 |
300/500 | 214 | 217 | 219 | 222 | |
400/500 | 229 | 232 | 235 | 238 | |
Phosphate | 200/500 | 155 | 159 | 163 | 165 |
300/500 | 213 | 218 | 224 | 226 | |
400/500 | 243 | 249 | 255 | 258 | |
Vitamin B12 | 200/500 | 105 | 112 | 118 | 124 |
300/500 | 112 | 120 | 126 | 133 | |
400/500 | 130 | 139 | 146 | 154 | |
KUF(mL/hr/mmHg) | 14 | 16 | 18 | 20 | |
Performance parameters and specifications | |||||
Parameter | Qb/Qd(ml/min) | SM140H | SM160H | SM180H | SM200H |
Effective Surface Area（m2） | 1.4 | 1.6 | 1.8 | 2.0 | |
KOA Urea(mL/min) | 954.9 | 1064.9 | 1232.9 | 1367 | |
Urea | 200/500 | 193 | 195 | 197 | 198 |
300/500 | 260 | 267 | 275 | 280 | |
400/500 | 310 | 320 | 330 | 340 | |
Creatinine | 200/500 | 182 | 185 | 190 | 195 |
300/500 | 241 | 250 | 260 | 270 | |
400/500 | 280 | 295 | 305 | 317 | |
Phosphate | 200/500 | 178 | 181 | 185 | 190 |
300/500 | 225 | 235 | 250 | 262 | |
400/500 | 260 | 280 | 295 | 305 | |
Vitamin B12 | 200/500 | 146 | 155 | 165 | 175 |
300/500 | 167 | 175 | 195 | 208 | |
400/500 | 180 | 190 | 200 | 212 | |
KUF(mL/hr/mmHg) | 55 | 60 | 65 | 70 | |
Sieving Coefficient | Inulin 0.9 | ||||
Myoglobin ≥0.5 | |||||
Albumin ≤0.01 | |||||
To function more like the human kidney, we built thousands of fibers into each dialyzer where every fiber acts as a nephron (human kidney element). Its advanced pore-spinning technology creates more homogenous pore sizes to optimize sieving properties,also its uniform pore size results in improved removal of uremic toxins and low-molecular-weight proteins, with limited loss of important proteins such as album in.
CNMEDITECH advances the dialyzer design in terms of composition,removal performance and results. We start with lighter, polypropylene housing and headers, which do not contain BPA. The inner design-featuring an ultra-smooth polypropylene cut surface and finely finished inner lumen of hollow fibers ensures smooth blood flow and minimizes potential blood cell damage.
Improved header shape with redesigned,permanent caps reduces channeling at the blood side while eliminating possibility of unexpected removal or reuse.
Ultra-smooth polyurethane cut surface on dialyzer minimizes risk of blood cell damage during hemodialysis.

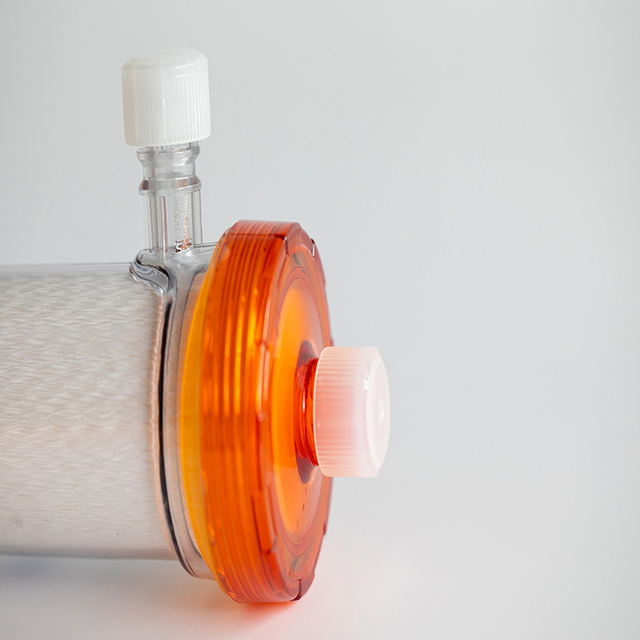

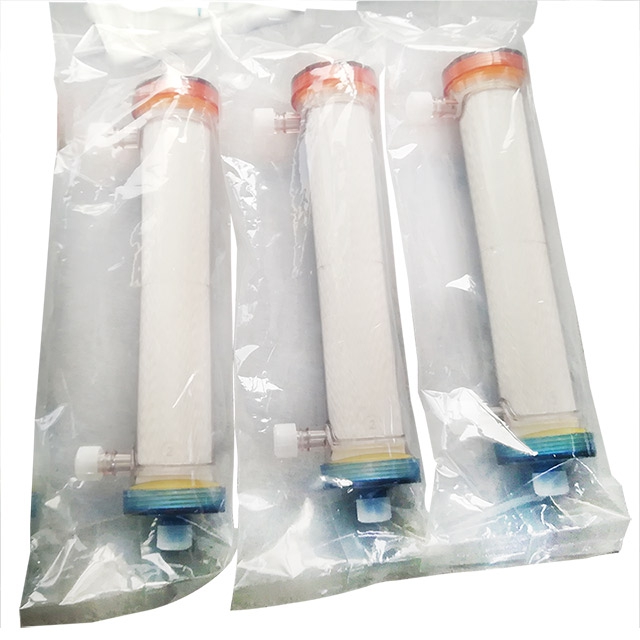

Dialyzer detailed picture:
